Spare parts > Castelgarden > Lawn Mower > CASTEL PLUS CASTEL PLUS (2004) [295506993/Y] > Dashboard
Back to
Dashboard

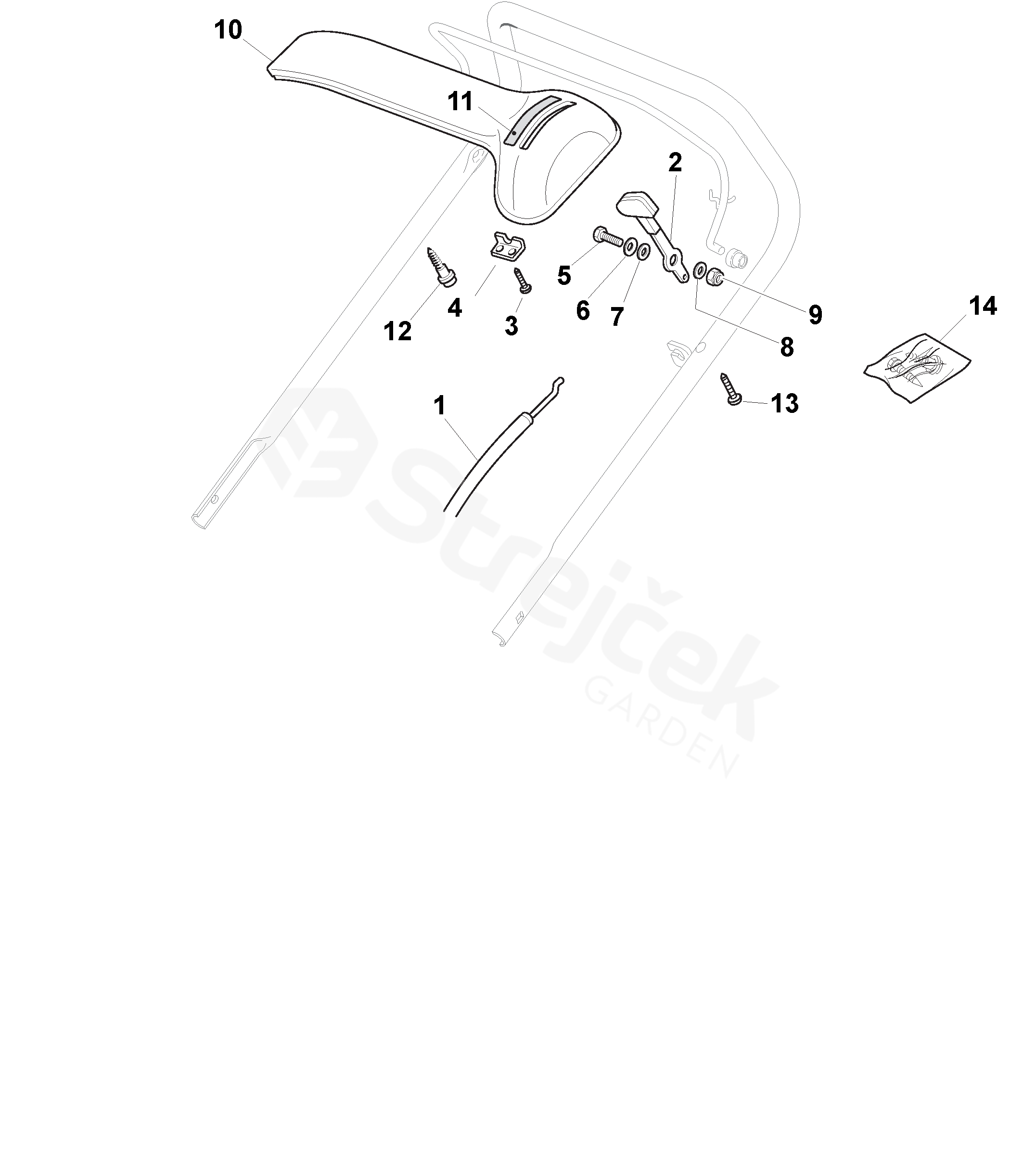

CASTEL PLUS CASTEL PLUS (2004) [295506993/Y]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CASTEL PLUS (2004) [295506993/Y]
1 Throttle Cable 481007160/0
2 Dashboard Throttle Lever 381007280/2
3 Screw 112735105/0
4 Plate 322981467/0
5 Screw 112791500/0
6 Spring washer 112530060/0
7 Washer 112523040/0
9 Nut 112154510/0
10 Red Dashboard 422120154/0
12 Screw 122943006/0
13 Screw 112728460/0
14 Outfit, Screws 381008609/0
