Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > R145 SV R145 SV, 96141013103, 2009-01 > FRAME & ENGINE
Back to

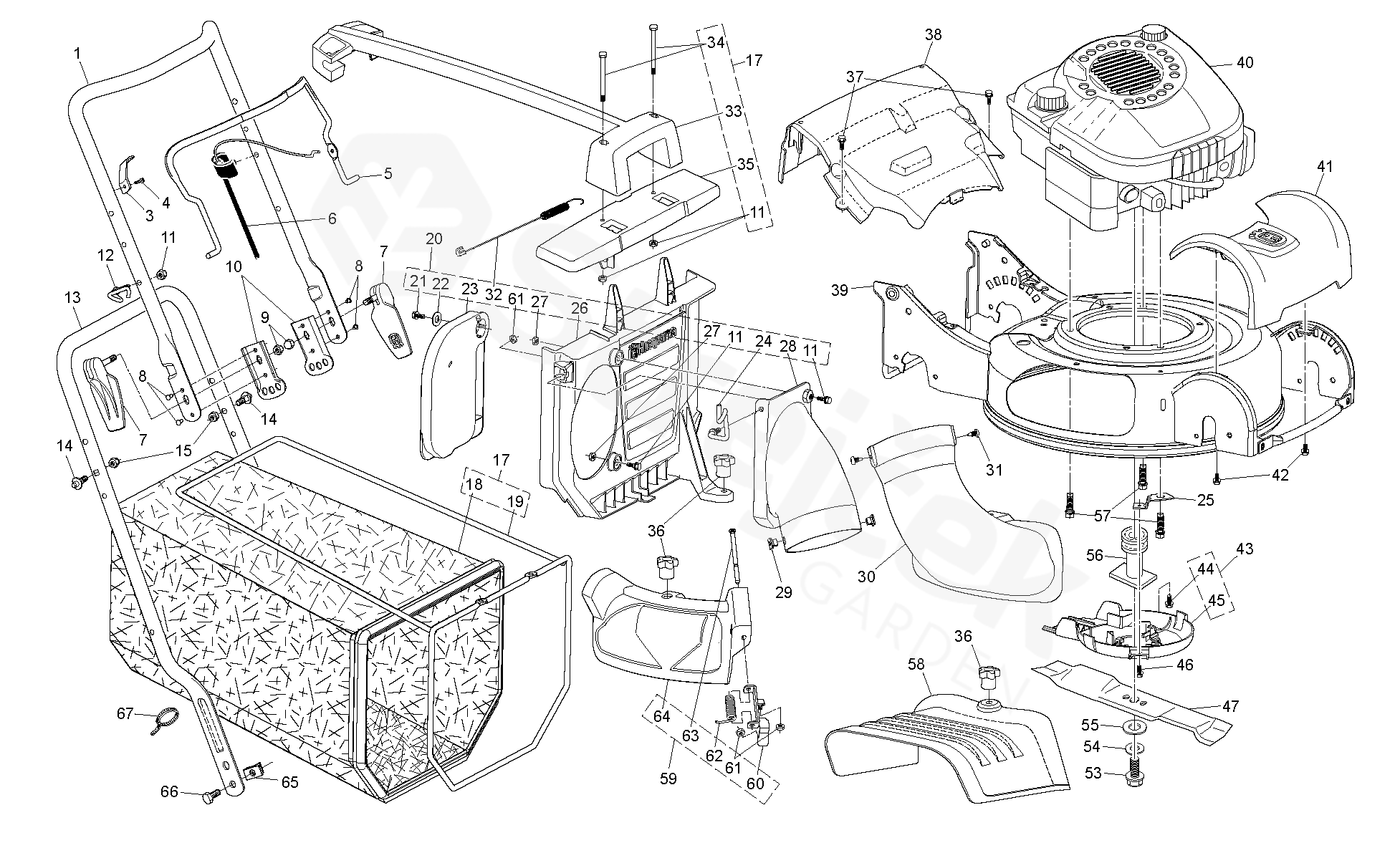

FRAME & ENGINE
R145 SV R145 SV, 96141013103, 2009-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R145 SV, 96141013103, 2009-01
1 HANDLE 532199887
3 BRACKET 532125203
4 SCREW 532750634
5 LEVER 532186298
6 CABLE 532425923
7 KNOB 532413507
8 RIVET 532199697
9 NUT 532400413
10 BRACKET 532413534
11 BOLT 532401369
12 GUIDE 532194788
13 HANDLE 532413535
14 PEN 532199255
15 BOLT 532751153
17 BAG 532400136
18 BAG 532199273
19 FRAME 532199278
20 CHUTE 532400135
21 SCREW 532163409
22 PODLOŽKA 532053847
23 WINDOW 532413508
24 GUIDE 532408652
25 MOUNTING BRACKET, DEBRI 532190939
26 HOUSING 532413509
27 MATICE 532132004
28 CHUTE 532413510
29 GROMMET 532199727
30 CHUTE 532413511
31 SCREW 532199855
32 SPRING 532401402
33 HANDLE 532413536
34 SCREW 871090448
35 ADAPTER 532413512
36 KNOB 532183447
37 SCREW 532199422
38 DRIVE COVER 532413513
39 KIT.HSG.45CM.HI-VAC.SP*SUBS/2* 532413802
41 FRONT COVER 532413514
42 SCREW 532194189
43 BELT COVER 532401216
44 SCREW 532088652
45 BELT COVER 532413515
46 SCREW 532192325
47 MOWER BLADE 532199243
53 SCREW 532191760
54 PODLOŽKA 532850263
55 PODLOŽKA 532851074
56 ADAPTER 532186766
57 BOLT 532150406
58 GUARD 532425130
59 HOUSING 532409314
60 BRACKET 532199268
61 MATICE 532191730
62 SPRING 532183446
63 PIN RETAINING SCREW 532183445
64 HOUSING 532413518
65 NUT 532404008
66 BOLT 532850999
67 HOOP 532066426
MANUAL Baltic
Baltic 		532413413
