Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > 7021 RC 7021 RC, 96143005700, 2010-04 > FRAME & ENGINE
Back to

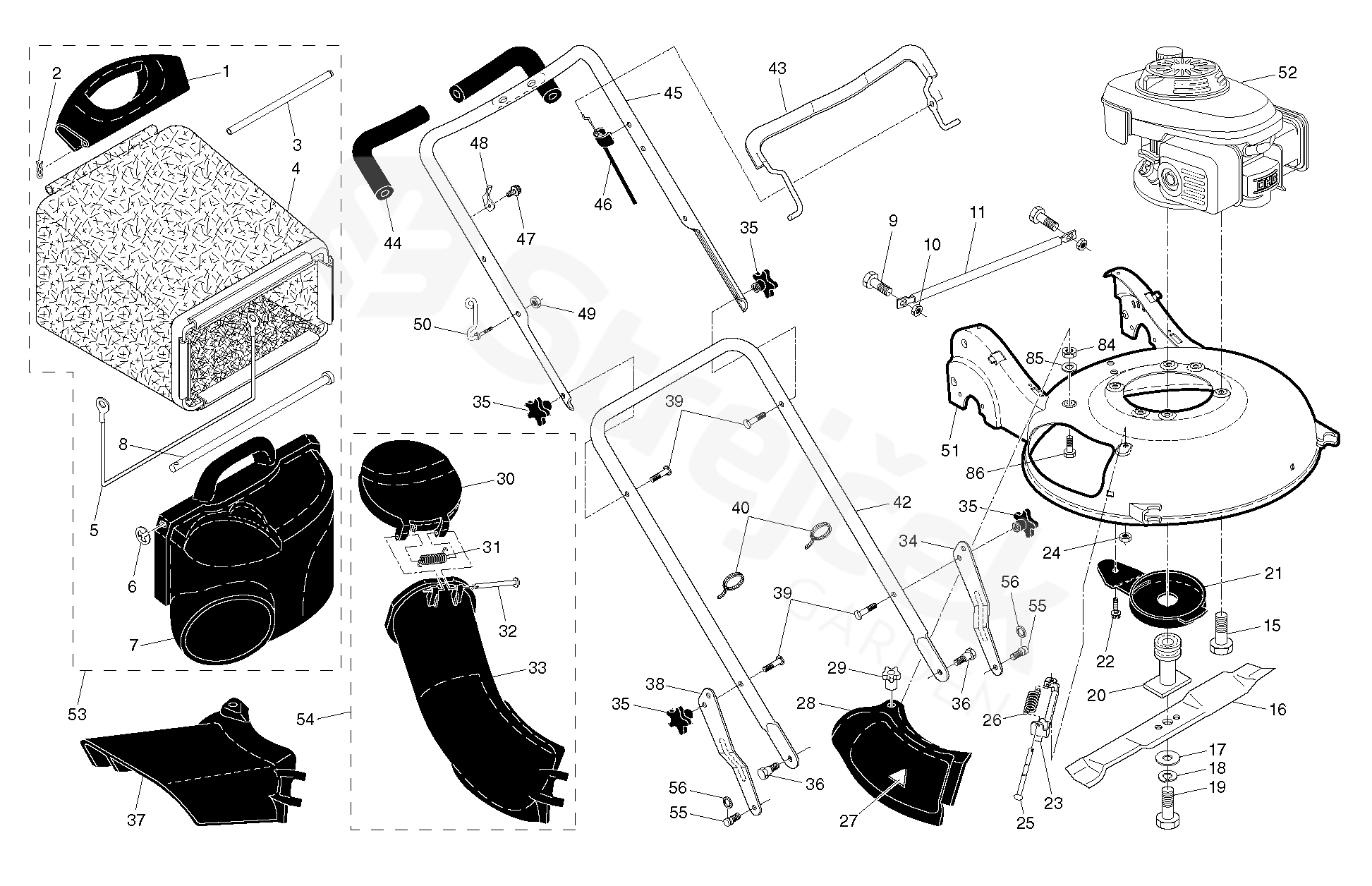

FRAME & ENGINE
7021 RC 7021 RC, 96143005700, 2010-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 7021 RC, 96143005700, 2010-04
1 HANDLE 532190582
2 CLAMP 532065322
3 PIN RETAINING SCREW 532183483
4 GBAG SILVER 532194736
5 FRAME 532188506
6 RETAINING RING 812000014
7 BAG 532190581
8 PIN RETAINING SCREW 532183479
9 BOLT 872140405
10 MATICE 873800400
11 PIPE 532190692
15 BOLT 532150406
16 MOWER BLADE 532159267
17 PODLOŽKA 532851074
18 PODLOŽKA 532850263
19 SCREW 532191760
20 ADAPTER 532186766
21 SHIELD 532190516
22 SCREW 817600406
23 BRACKET 532183609
24 MATICE 532191730
25 PIN RETAINING SCREW 532183445
26 SPRING 532183446
27 DECAL 532404764
28 PLATE 532190515
29 KNOB 532183447
30 PLATE 532190580
31 SPRING 532183478
32 PIN RETAINING SCREW 532183445
33 PIPE 532190578
34 BRACKET
LH 		532190619
35 KNOB 532182398
36 BOLT 532194187
37 DEFLECTOR 532185996
38 BRACKET
RH 		532190621
39 HANDLE BOLT 532191574
40 HOOP 532066426
42 HANDLE 532187096
43 BAR 532426812
44 HANDLE 532182748
45 HANDLE 532186296
46 CABLE 532427497
47 SCREW 532750634
48 BRACKET 532430034
49 MATICE 532132004
50 LEVER 532188501
51 HOUSING 532431341
52 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
HONDA GCV190-LAS3A ORDER PARTS FROM ENGINE MANUFACTURER 		000000000
53 GBAG.ASM.21 HV"CROWN" 532194735
54 PIPE 532189014
55 STUD 532194192
56 E-CLIP 812000058
84 NUT 532400100
85 PODLOŽKA 532850263
86 BOLT 872110407
DECAL 532404764
