Spare parts - Partlist - 7021 RH 7021 RH, 96143005600, 2009-12 - FRAME

Everything for your machines

7021 RH 7021 RH, 96143005600, 2009-12

Hover mouse on parts list

Wheel: Zoom, left button: Movement

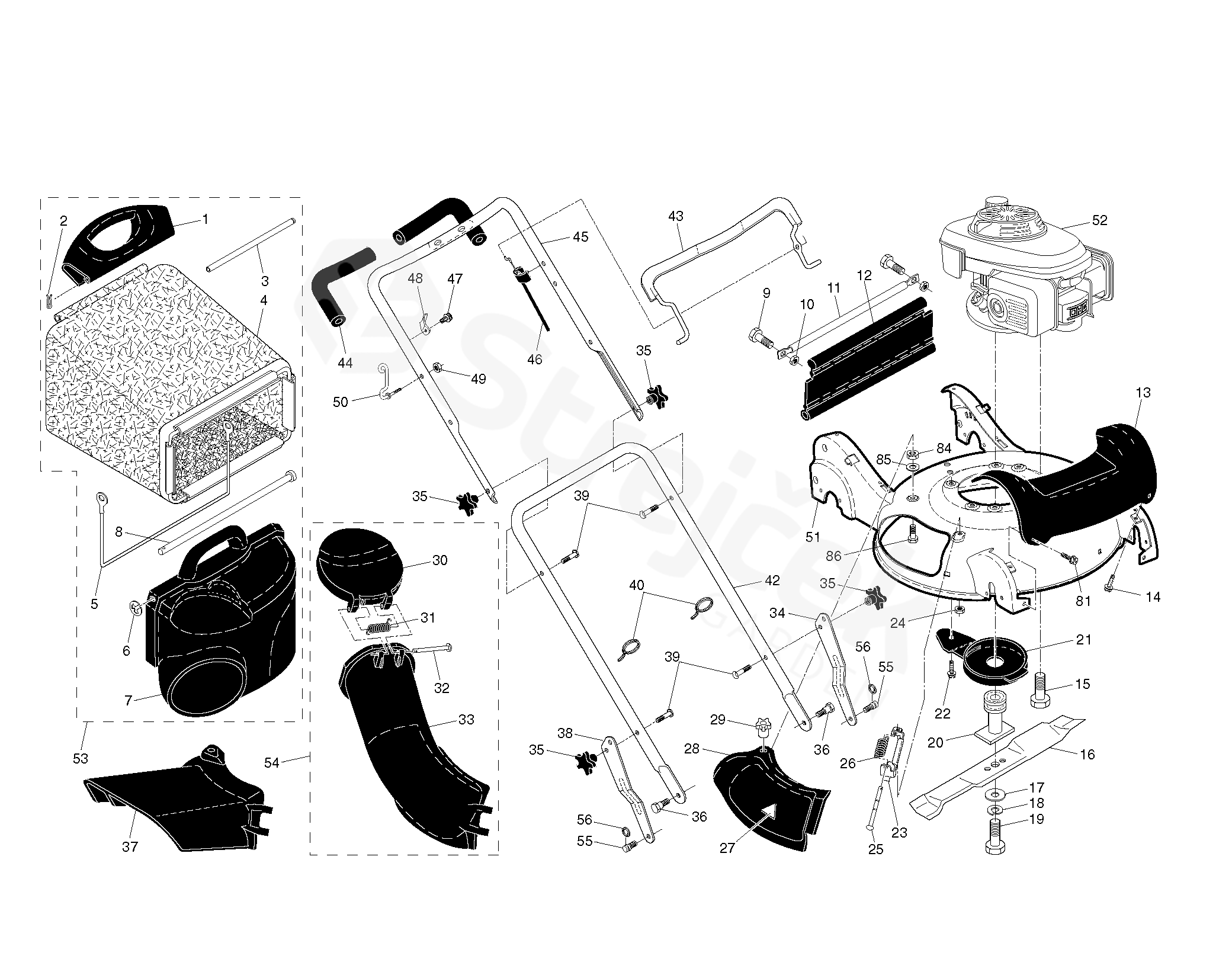

Other parts For 7021 RH, 96143005600, 2009-12

1	HANDLE	532190582
2	CLAMP	532065322
3	PIN RETAINING SCREW	532183483
4	GBAG SILVER	532194736
5	FRAME	532188506
6	RETAINING RING	812000014
7	BAG	532190581
8	PIN RETAINING SCREW	532183479
9	BOLT	872140405
10	MATICE	873800400
11	PIPE	532190692
12	SKIRT.REAR.21 " HI-VAC	532196474
13	COVER	532414958
14	SCREW	532199422
15	BOLT	532150406
16	MOWER BLADE	532159267
17	PODLOŽKA	532851074
18	PODLOŽKA	532850263
19	SCREW	532191760
20	ADAPTER	532186766
21	SHIELD	532190516
22	SCREW	817600406
23	BRACKET	532183609
24	MATICE	532191730
25	PIN RETAINING SCREW	532183445
26	SPRING	532183446
27	DECAL	532404763
28	PLATE	532190515
29	KNOB	532183447
30	PLATE	532190580
31	SPRING	532183478
32	PIN RETAINING SCREW	532183445
33	PIPE	532190578
34	BRACKET	532187425
35	KNOB	532182398
36	BOLT	532194187
37	DEFLECTOR	532185996
38	BRACKET	532187426
39	HANDLE BOLT	532191574
40	HOOP	532066426
42	HANDLE	532187096
43	BAR	532426812
44	HANDLE	532182748
45	HANDLE	532186296
46	CABLE	532427497
47	SCREW	532750634
48	BRACKET	532430034
49	MATICE	532132004
50	LEVER	532188501
51	HOUSING	532430883
52	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 HONDA GCV160-LAS3A	000000000
53	GBAG.ASM.21 HV"CROWN"	532194735
54	PIPE	532189014
55	STUD	532194192
56	E-CLIP	812000058
81	SCREW	532194189
84	NUT	532400100
85	PODLOŽKA	532850263
86	BOLT	872110407
