Spare parts > Castelgarden > Lawn Tractor > XHX 240 XHX 240 (2012) [2T1515273/12] > Electrical Parts
Back to

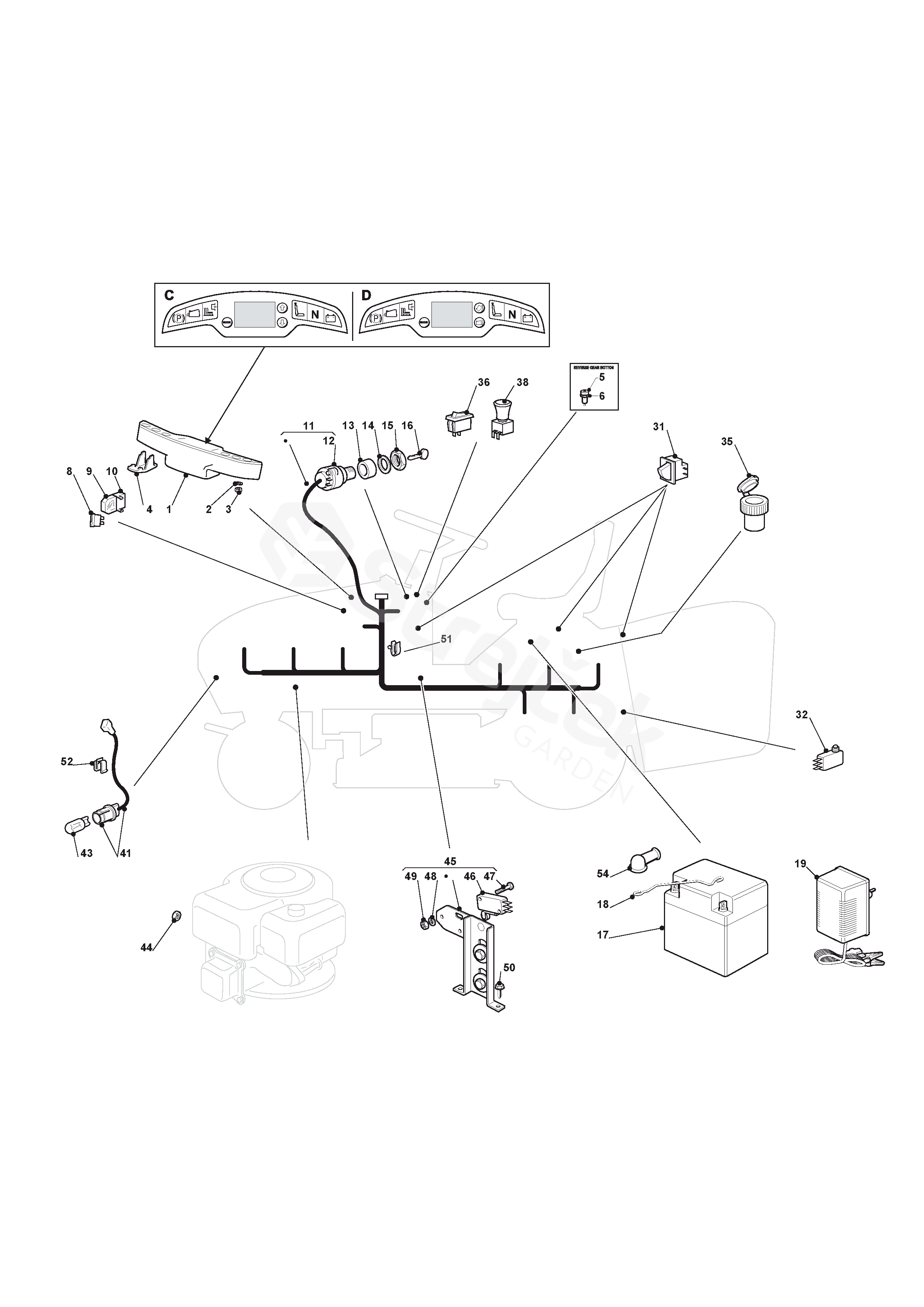

Electrical Parts
XHX 240 XHX 240 (2012) [2T1515273/12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For XHX 240 (2012) [2T1515273/12]
1 Cards + Guards (C) 382722434/0
2 Washer 112521320/0
3 Nut 112154330/0
4 Buzzer Sound Amplifier 325031501/0
5 Push Button Reverse Gear 325605003/0
6 Screwed Ring 325256250/0
8 Fuse 15 A 133340035/0
9 Cover 133215000/0
10 Fuse carrier 133500007/0
11 Cables Ass.Y 182040179/0
12 Starting Switch 118450072/0
13 Spacer 118550136/0
14 Washer 118550135/0
15 Ring Nut 118400862/0
16 Starting Key 118210022/0
17 Battery 118120057/0
18 Spring 125430230/0
19 Battery Charger 12V 1A - CE Plugg
CE Plug 		182180090/0
31 Microswitch 119410622/1
32 Microswitch 119410605/1
35 Cigarette Lighter Socket 118450200/0
36 Headlight Switch 118450084/0
38 Clutch Switch 118450074/0
41 Headlight Cable
For Lamp Version 		182040073/0
43 Lamp For Lights
NOT for models with LED Light 		118459100/0
44 Nut 112361005/0
45 Switch Ass.Y 382394853/0
46 Microswitch 119410609/1
47 Screw 112735602/0
48 Grower 112581100/0
49 Nut 112290791/0
50 Screw 112735110/0
51 Fairlead 133320506/0
52 Fairlead 133320504/0
54 Protection 118564864/1
