Spare parts > Husqvarna > RIDERS > P524 P524, 967292201, 2017 > ENGINE
Back to

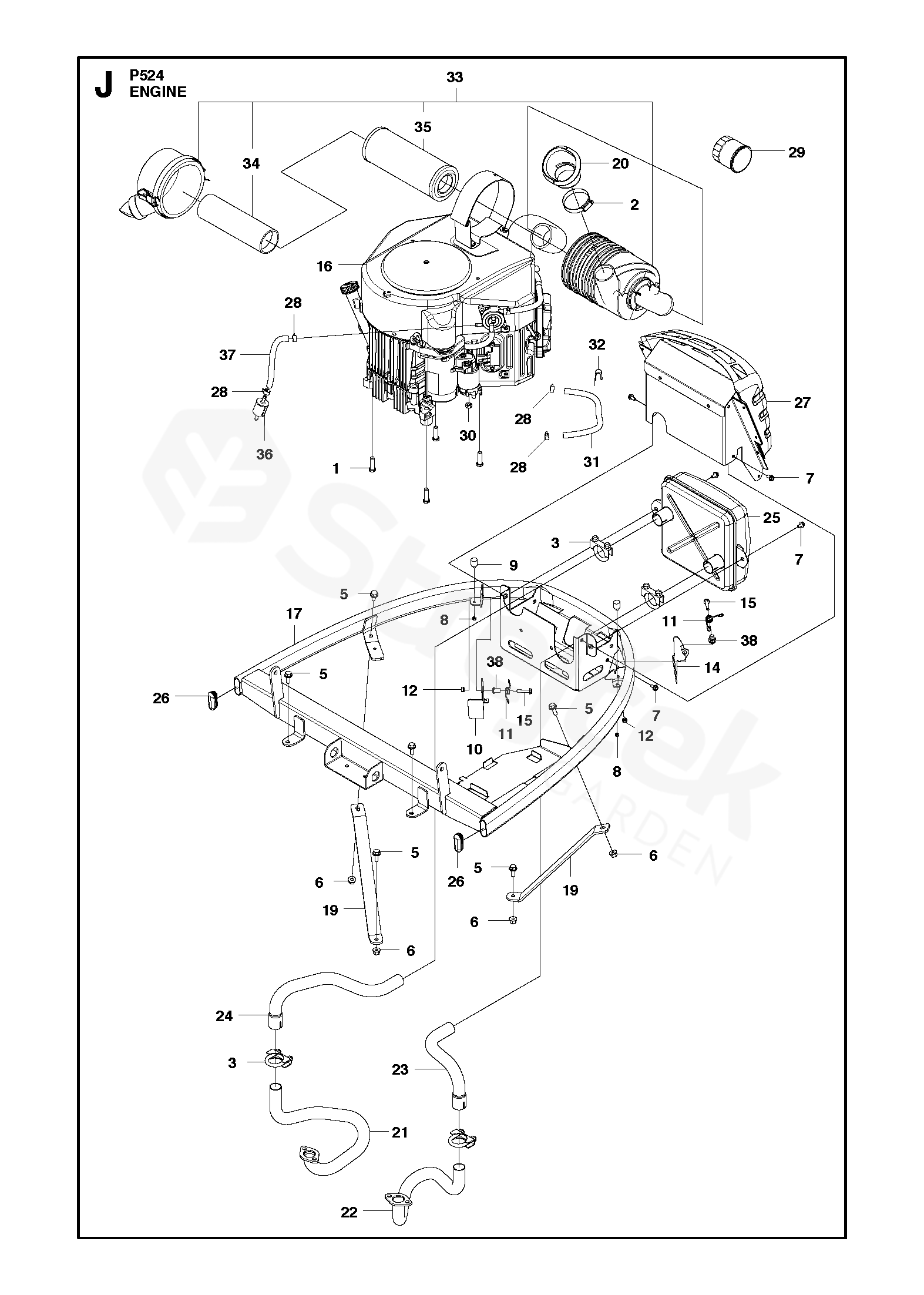

ENGINE
P524 P524, 967292201, 2017
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P524, 967292201, 2017
1 SCREW 577094801
2 HOSE CLAMP 544202703
3 CLAMP ASSY 506668401
5 SCREW EHHFM 535475212
6 NUT FLANGE 576645704
7 SCREW EHHFM 506570105
8 LOCK NUT 732211401
9 DAMPER 504638801
10 LATCH 504613403
11 SPRING 504639001
12 LOCK NUT 732211601
14 LATCH 504613404
15 SCREW EHHFM 535475230
16 ENGINE 577586101
17 ENGINE FRAME 577092901
19 SUPPORT 576878201
20 BELLOWS 576899601
21 MANIFOLD 577386101
22 MANIFOLD 577386501
23 EXHAUST PIPE 577386601
24 EXHAUST PIPE 577386201
25 MUFFLER ASSY 577406901
26 PLUG 504643601
27 HEAT PROTECTOR 505395502
28 HOSE BRACE 535469701
29 OIL FILTER 578159201
30 HEXAGON LOCKING NUT 731231801
31 FUEL HOSE 544282503
32 HADICOVÁ SVĚRKA 574531203
33 AIR FILTER 582092801
34 AIR FILTER 585408002
35 AIR FILTER 585408001
36 FILTER 535414376
37 PIPE 535414495
38 SLEEVE 584659001
