Spare parts > Husqvarna > RIDERS > RIDER 15 T AWD R15 T AWD, 966414301, 2010-07 > PEDALS
Back to

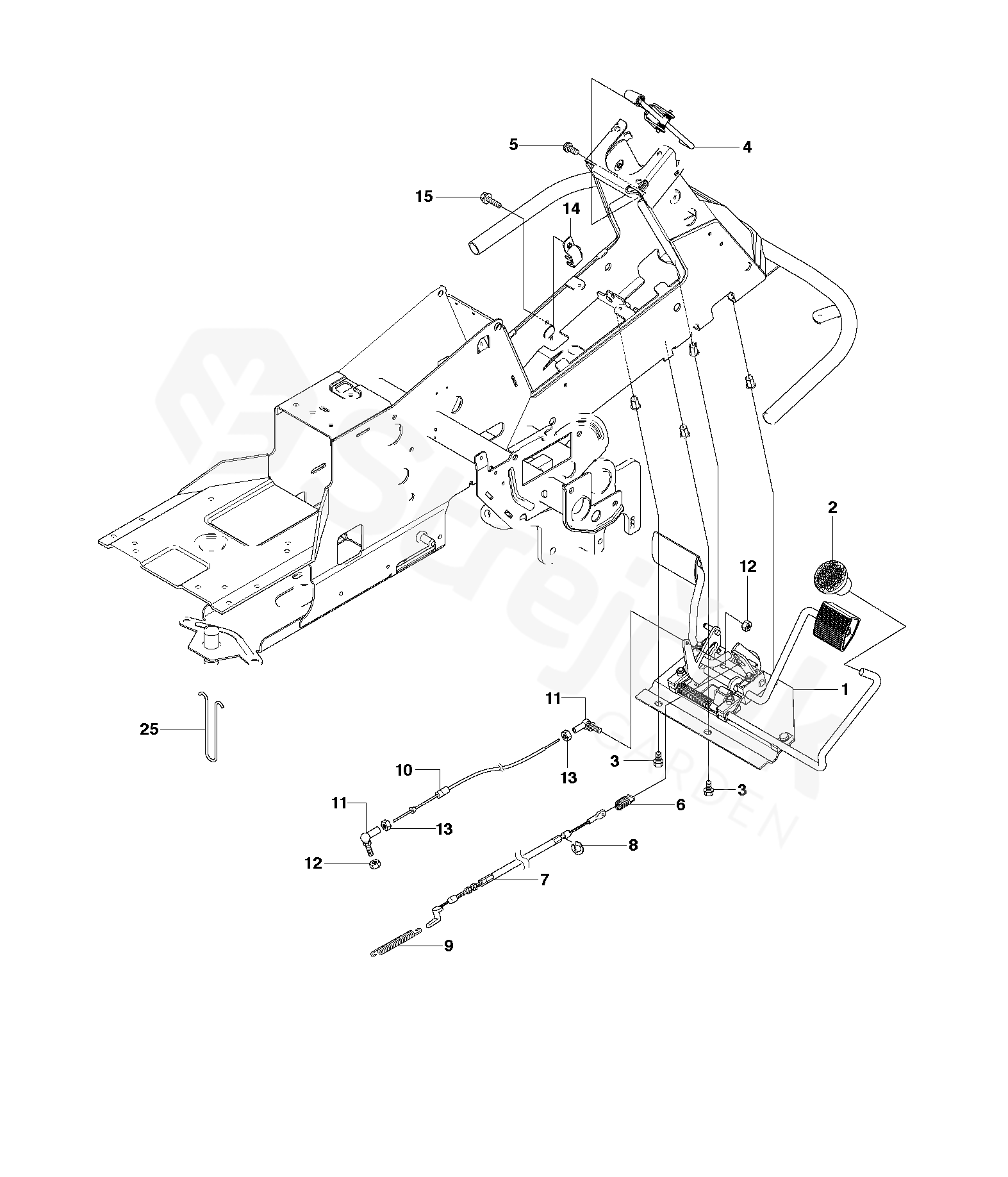

PEDALS
RIDER 15 T AWD R15 T AWD, 966414301, 2010-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R15 T AWD, 966414301, 2010-07
1 PEDAL PLATE ASSY 544126001
2 KNOB 535473701
3 SCREW EHHFM 506570104
4 BRAKE LEVER ASSY 544403101
5 SCREW EHHFT 725236461
6 BRAKE SPRING 506946301
7 BRAKE WIRE 535489601
8 E-CLIP 735310920
9 DRAW SPRING 506535603
10 CONTROL CABLE 574411202
11 VINKELL.AS8 DIN71802 506557301
12 LOCK NUT 732211401
13 HEXAGON NUT 731231401
14 BRACKET 522430801
15 SCREW EHHFT 725236461
25 CABLE HOLDER 506576402
