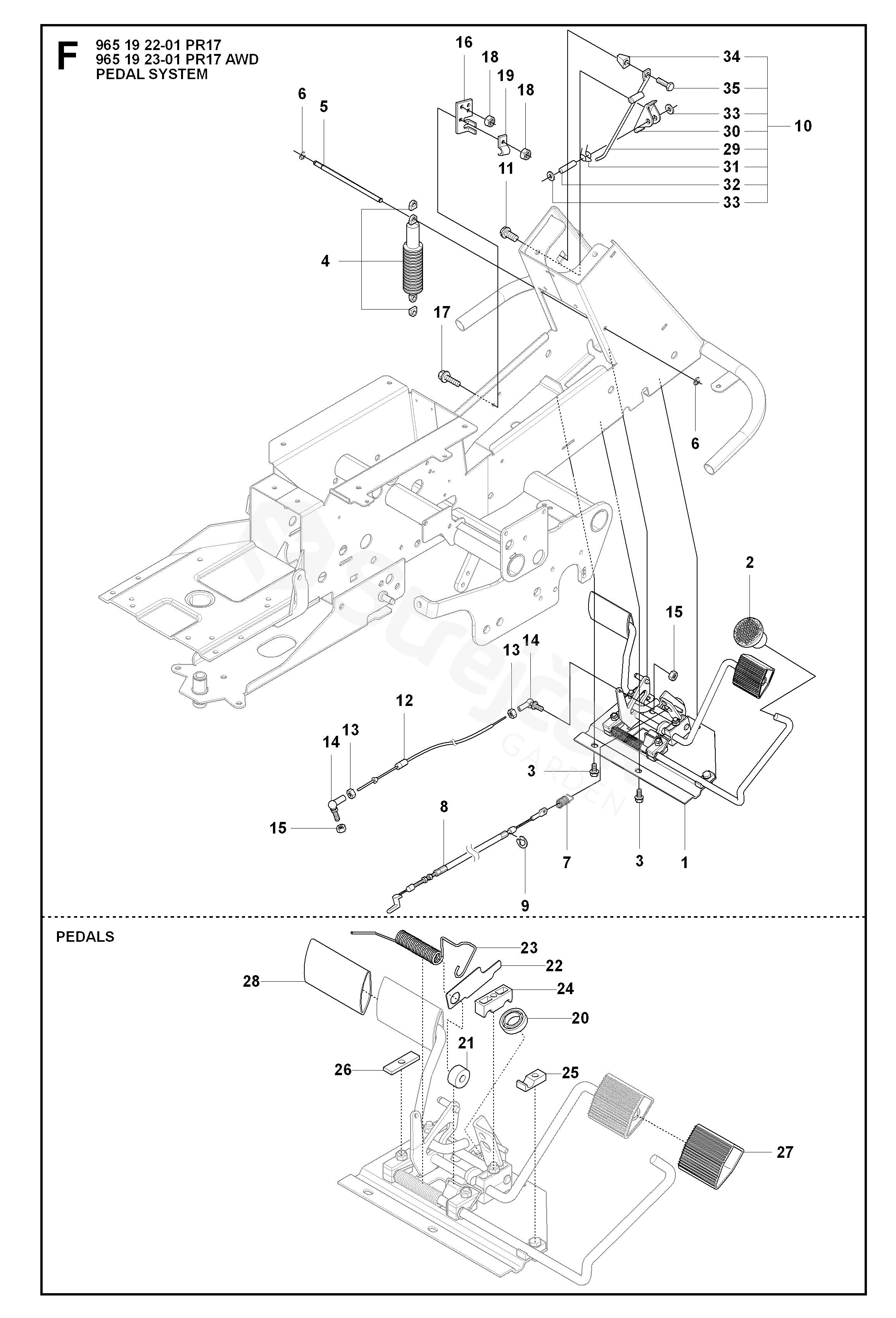

Spare parts > Husqvarna > RIDERS > PR17 PR17, 2008-03 > PEDALS
Back to
PEDALS
PR17 PR17, 2008-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PR17, 2008-03
1 PEDAL PLATE ASSY 544126001
2 KNOB 535473701
3 SCREW EHHFM 506570104
4 DAMPING PIECE 506938301
5 SHAFT 506938402
6 E-CLIP 735310920
7 BRAKE SPRING 506946301
8 BRAKE WIRE 535489601
9 E-CLIP 735310920
10 BROMSSPÄRR KPL. GEM. 506538404
11 SCREW EHHFT 725236461
12 CONTROL CABLE 505515101
13 HEXAGON NUT 731231401
14 VINKELL.AS8 DIN71802 506557301
15 LOCK NUT 732211401
16 BRACKET 506800001
17 SCREW EHHFM 535475316
18 LOCK NUT 732211401
19 CLIP 506566501
20 BALL BEARING 738210204
21 ROLLER 535480201
22 PROTECTIVE PLATE 535480601
23 SPRING 535480701
24 BEARING SUPPORT 535480801
25 BEARING SUPPORT 535480901
26 REINFORCEMENT PLATE 535481001
27 PEDAL RUBBER 535478801
28 PEDAL RUBBER 535478802
29 LOCKING ARM 506538501
30 BRACKET 506538601
31 SPRING 506538901
32 SHAFT 506538801
33 PODLOŽKA 735583501
34 CONTROL BUTTON 506538704
35 SCREW CRPANT 729532971
