PR17 AWD PR17 AWD, 965192301, 2010-07
>
PEDALS
Back to
PR17 AWD
PR17 AWD, 965192301, 2010-07
PEDALS
PR17 AWD
PR17 AWD, 965192301, 2010-07

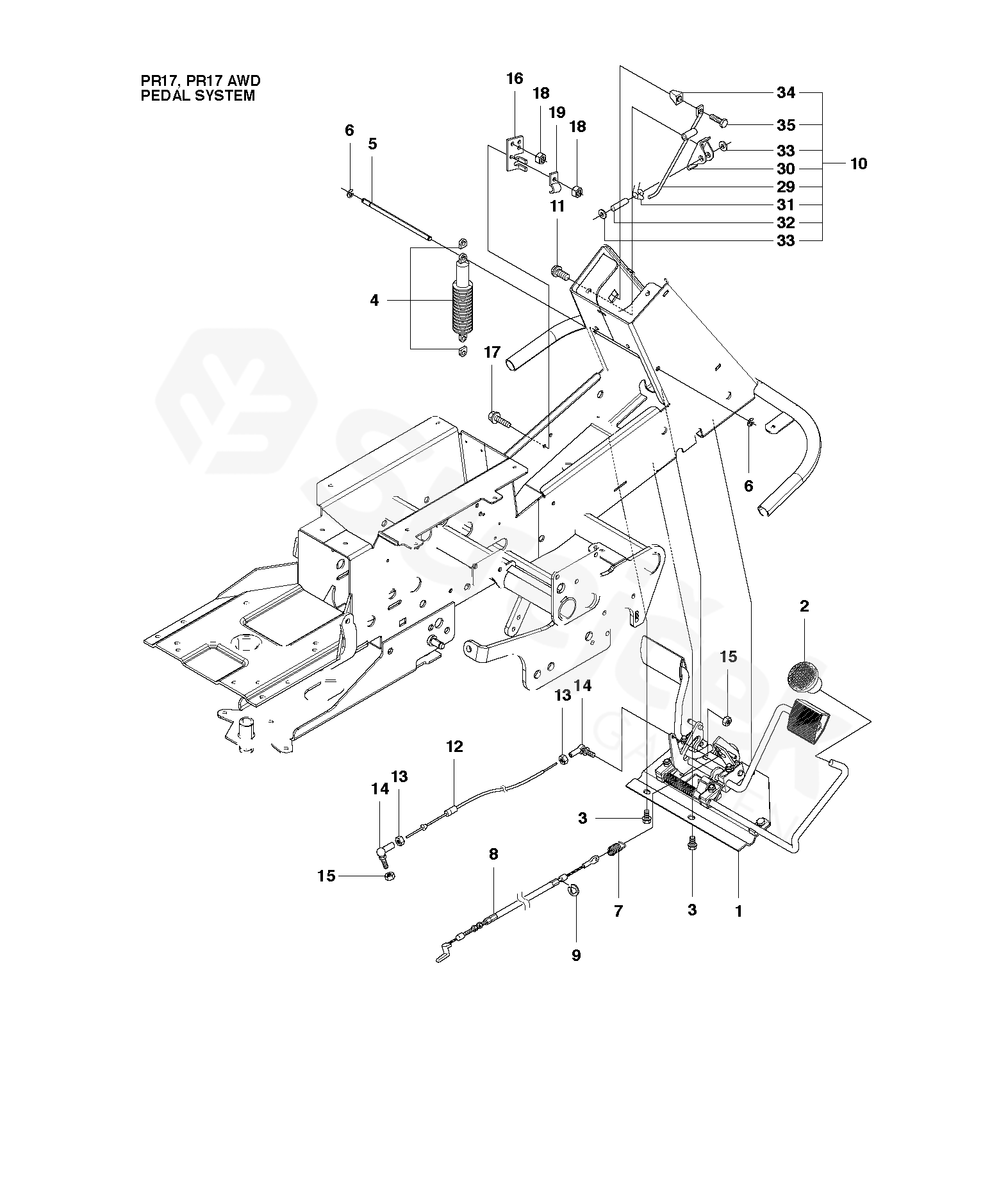

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PR17 AWD, 965192301, 2010-07
1
PEDAL PLATE ASSY
544126001
2
KNOB
535473701
3
SCREW EHHFM
506570104
4
DAMPING PIECE
506938301
5
SHAFT
506938402
6
E-CLIP
735310920
7
BRAKE SPRING
506946301
8
BRAKE WIRE
PR17 AWD
576712101
9
E-CLIP
735310920
10
BROMSSPÄRR KPL. GEM.
506538404
11
SCREW EHHFT
725236461
12
CONTROL CABLE
574411201
13
HEXAGON NUT
731231401
14
VINKELL.AS8 DIN71802
506557301
15
LOCK NUT
732211401
16
BRACKET
506800001
17
SCREW EHHFM
535475316
18
LOCK NUT
732211401
19
CLIP
506566501
29
LOCKING ARM
506538501
30
BRACKET
506538601
31
SPRING
506538901
32
SHAFT
506538801
33
PODLOŽKA
735583501
34
CONTROL BUTTON
506538704
35
SCREW CRPANT
729532971
