Spare parts > ST S p A > Lawn Mower > PM-5365 S3 PRO PM-5365 S3 PRO (2008) > Transmission
Back to

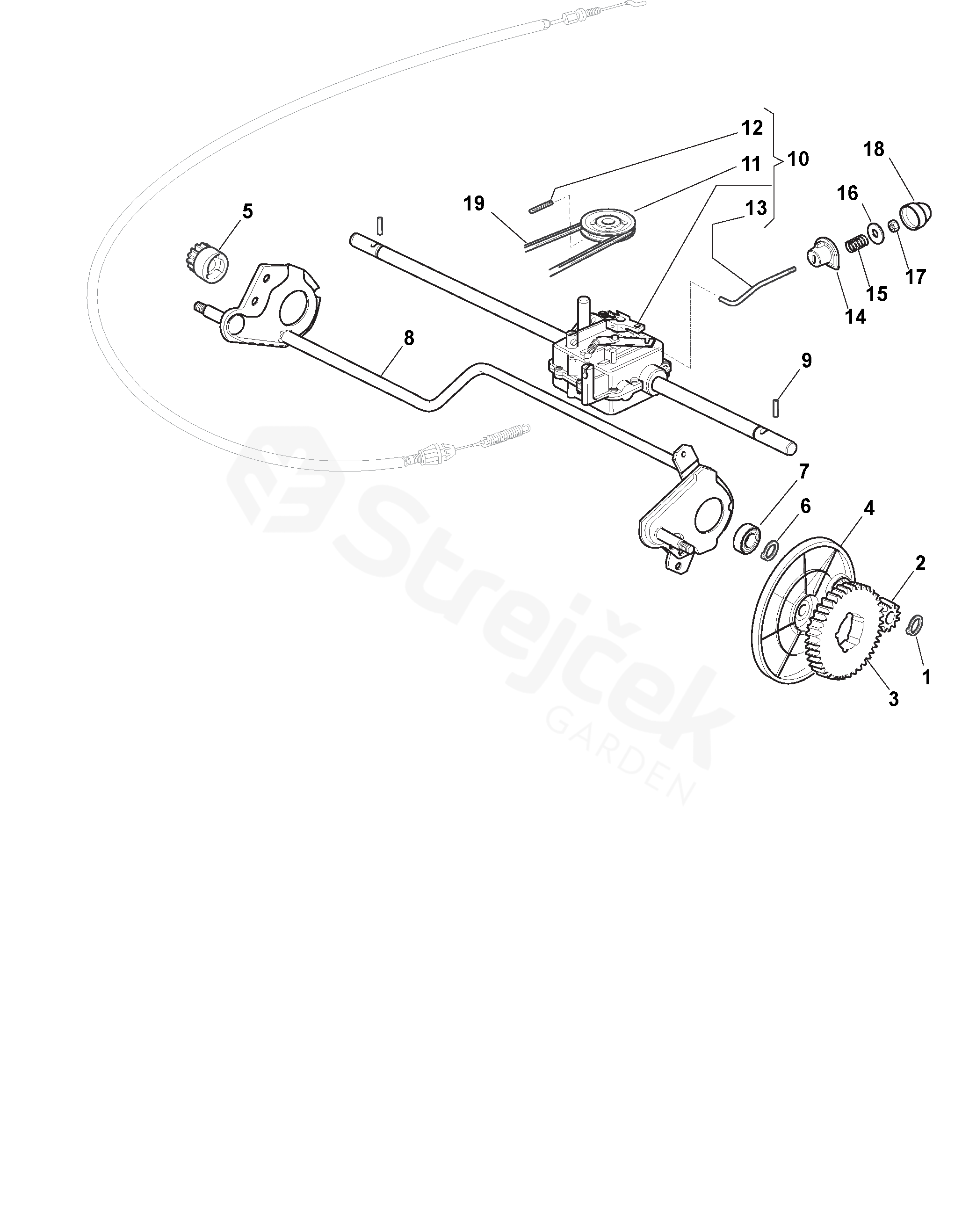

Transmission
PM-5365 S3 PRO PM-5365 S3 PRO (2008)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PM-5365 S3 PRO (2008)
1 Seeger 112608600/0
2 Left pinion 122570120/1
3 Ring Gear 122120105/1
4 Protection, Wheel 322600268/0
5 Right Pinion 122570110/1
7 Bearing 119216035/0
8 Rear Wheel Axle 381002811/0
9 Pin 122753000/0
10 Gear Box 181003075/0
11 Pulley 122601908/1
12 Elastic Pin
ø5X32 		112645705/0
13 Adjustment Rod 122033282/1
14 Bushing 122041957/0
15 Spring 122450063/0
16 Washer 322680009/0
17 Nut 112154510/0
18 Hub Cover 122110230/0
19 Belt 135064197/0
