Spare parts > Husqvarna > RIDERS > R422 Ts R 422 Ts, 966632301, 2011-03 > STEERING
Back to

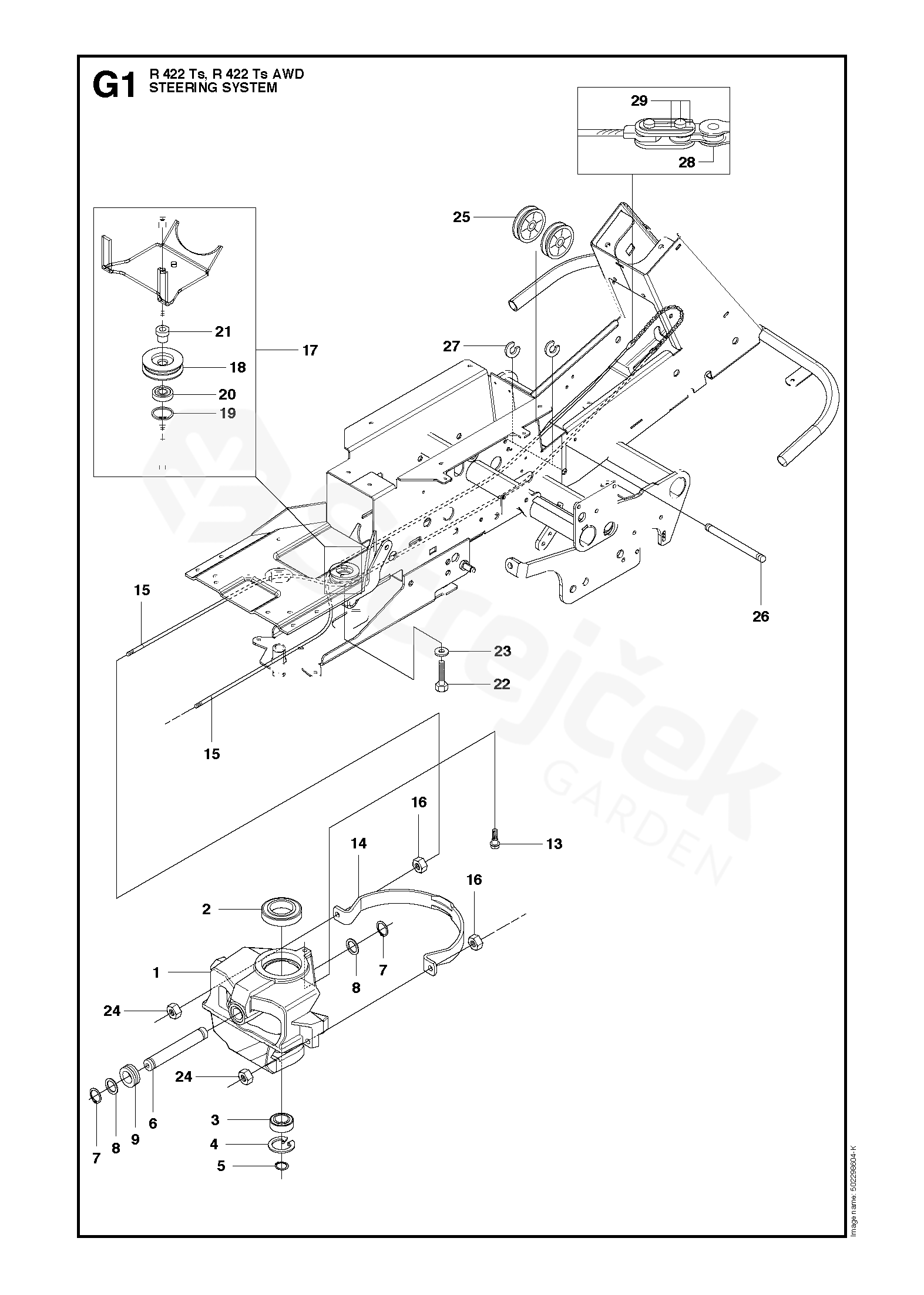

STEERING
R422 Ts R 422 Ts, 966632301, 2011-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R 422 Ts, 966632301, 2011-03
1 SPINDLE 506934702
2 BALL BEARING 738211004
3 BALL BEARING 738210504
4 CIRCLIP 735314010
5 CIRCLIP 735312600
6 SWING AXLE 535463001
7 CIRCLIP 735312600
8 WASHER 506773401
9 V-RING 740681421
13 SCREW EHHFM 506597401
14 WIRE GUIDE 544427301
15 WIRE ASSY 577199903
16 HEXAGON NUT 731232051
17 BARRING WHEEL 506500903
18 BARRING WHEEL 535424101
19 CIRCLIP 735314010
20 BALL BEARING 738220419
21 BUSHING 506500802
22 SCREW EHHM 725250051
23 PODLOŽKA 734117441
24 MATICE 732212051
25 KLADKA STARTOVÁNÍ 506522401
26 SHAFT 506539403
27 E-CLIP 735311420
28 CHAIN 506554601
29 LINKAGE 506554701
