Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
RIDERS
>

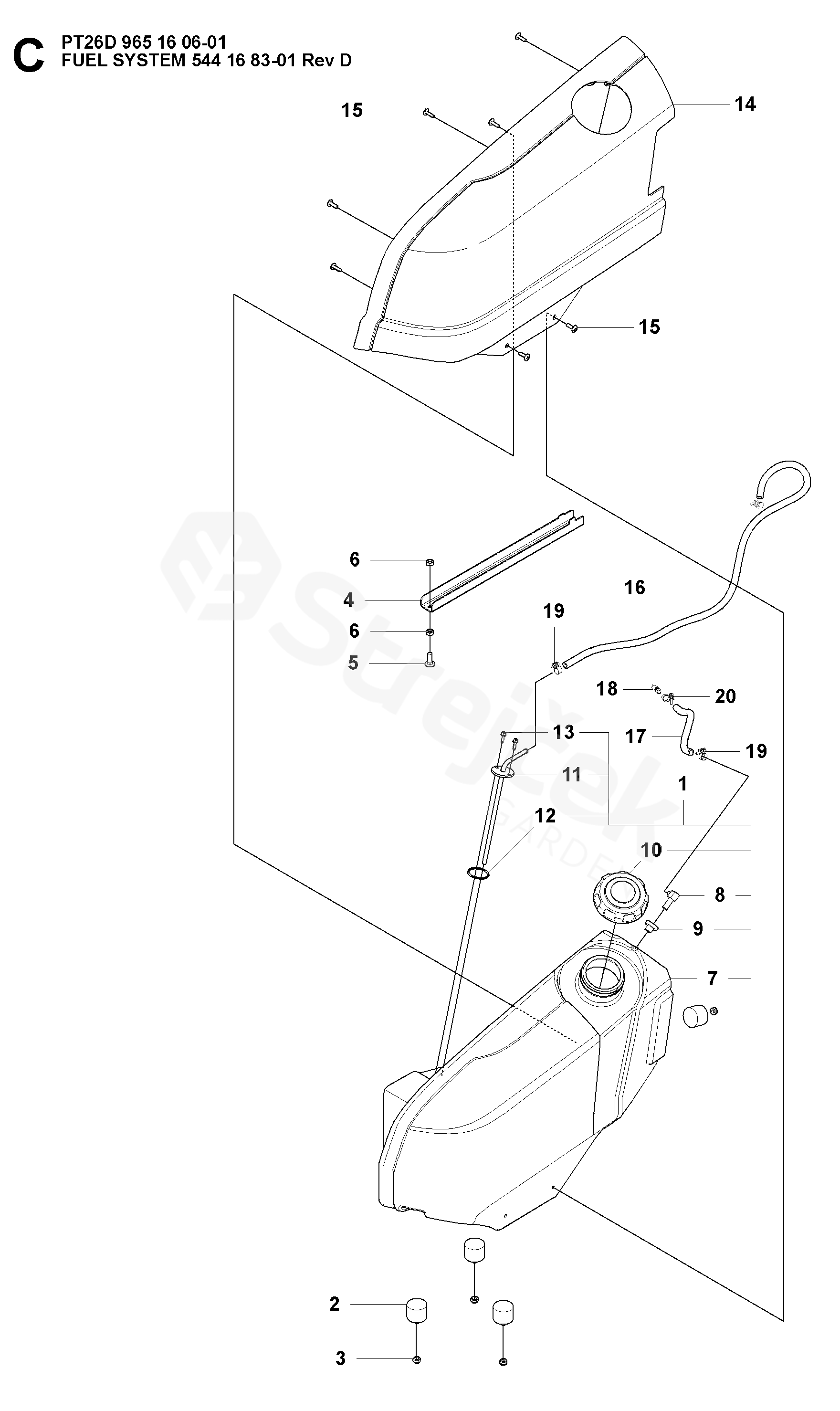

PT26 D PT26 D 2008, 965 16 06-01, 2008-03
>
FUEL SYSTEM
Back to
PT26 D
PT26 D 2008, 965 16 06-01, 2008-03
FUEL SYSTEM
PT26 D
PT26 D 2008, 965 16 06-01, 2008-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PT26 D 2008, 965 16 06-01, 2008-03
1
FUEL TANK ASSY
544191401
2
ANTIVIBRATION ELEMENT
544252101
3
LOCK NUT
732211801
4
BEAM
544316301
5
SCREW RSQM
535423801
6
LOCK NUT
732211801
7
FUEL TANK
544191501
8
JOINT
539105244
9
GROMMET
539105245
10
TANK CAP
539106330
11
CONNECTION
544243301
12
O-RING
740481202
13
SCREW
535415619
14
TANK COVER
544210601
15
SCREW IHPANM
535425801
16
FUEL HOSE
544282504
17
FUEL HOSE
544282505
18
CONNECTION
544369201
19
HOSE CLAMP
544282601
20
HOSE CLAMP
544282602
