Spare parts > ST S p A > Lawn Mower > HARRY HARRY (2003) > Electric Motor/Deck
Back to

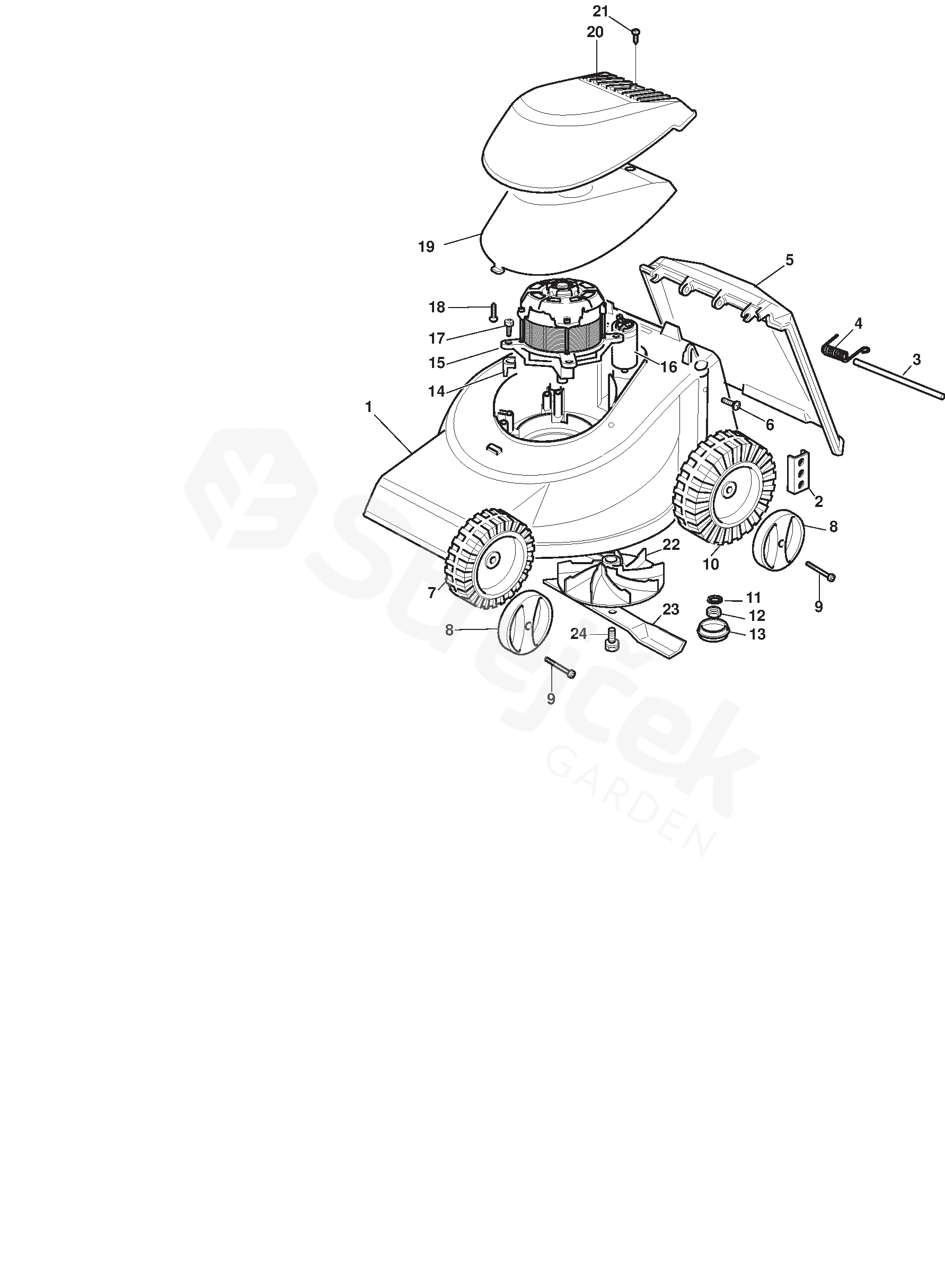

Electric Motor/Deck
HARRY HARRY (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HARRY (2003)
1 Red Deck 381001567/0
2 Support, Wheel 322785087/1
3 Pin 122512530/0
4 Spring 122450250/0
5 Stone Guard, Black 322600024/1
7 Wheel 122686081/0
8 Hub Cap White 381004348/0
9 Pin 122524337/0
10 Wheel 122686087/0
11 Washer 112540260/0
12 Nut 112293200/0
13 Cover 122110275/0
14 Spacer 122167700/0
15 Motor Atb
240V (800W) 		118563603/0
16 Condenser
(800 Atb) 		118222044/0
17 Screw 112735410/0
18 Screw 112731601/0
19 Cover Support 122055032/0
20 Cover, Black 322055059/1
21 Screw 112728680/0
22 Hub Fan 122465602/0
23 Blade 181004115/1
24 Screw 381004352/0
