SOLO 579 HYDRO SOLO 579 HYDRO (2012)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SOLO 579 HYDRO (2012)

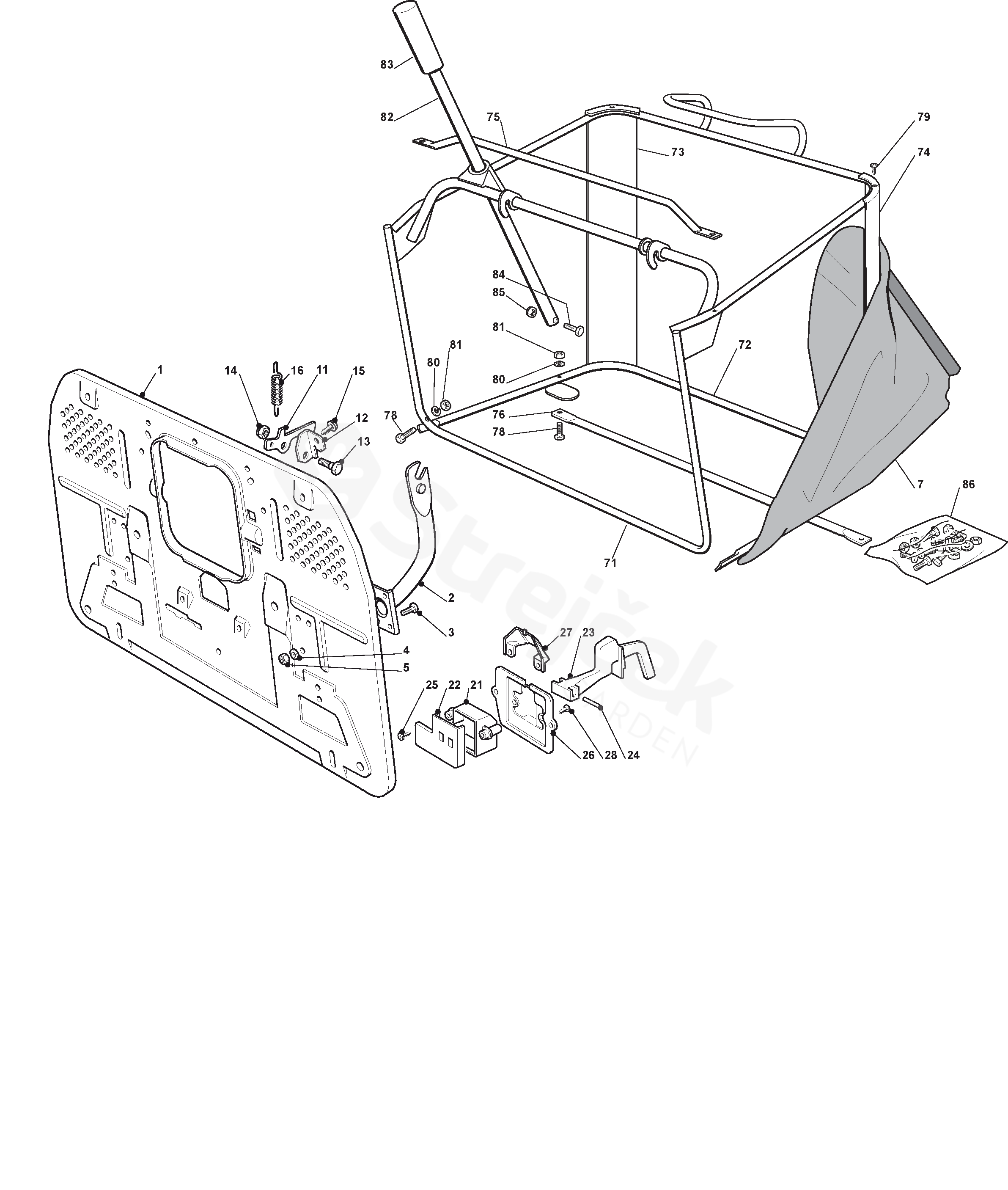

1	Plate	382547051/1
2	Clamp	182774225/1
3	Screw	112793102/0
4	Washer	112523060/0
5	Nut	112293201/0
7	Grasscatcher Black without Logo	182106000/2
11	Bracket	325774315/1
12	Bracket	325755031/2
13	Pin	125510080/0
14	Nut	112292102/0
15	Screw	112735122/1
16	Clutch Spring	127430579/0
21	Grassc.Full Micro Protection Tcj-F	125600041/0
22	Grasscatcher Micro Prot Cover	125600042/0
23	Full Grassc. Microswtich Cover	125318124/0
24	Pin	112400030/0
25	Screw	112728510/0
26	Micro Protection	325785272/1
27	Empty Micro Grassc.Protection Cover	125600048/0
28	Screw	112728450/0
71	Upper Frame	382800051/0
72	Lower Grasscatcher Frame	382800002/2
73	Right Angular Support	325032001/1
74	Left Angular Support	325032002/1
75	Front Handle	382394001/2
76	Lower Stiffening	382650038/0
78	Screw	112792099/0
79	Screw	112729601/0
80	Grower	112582101/0
81	Nut	112292100/0
82	Grasscatcher Lifting Tube	125869029/1
83	Knob	125394508/0
85	Nut	112154510/0
86	Outfit, Screws	382180027/1
