Spare parts > ST S p A > Sweeper > OKAY 4516 MS OKAY 4516 MS (2018) [219802537/RWA] > Body
Back to
Body

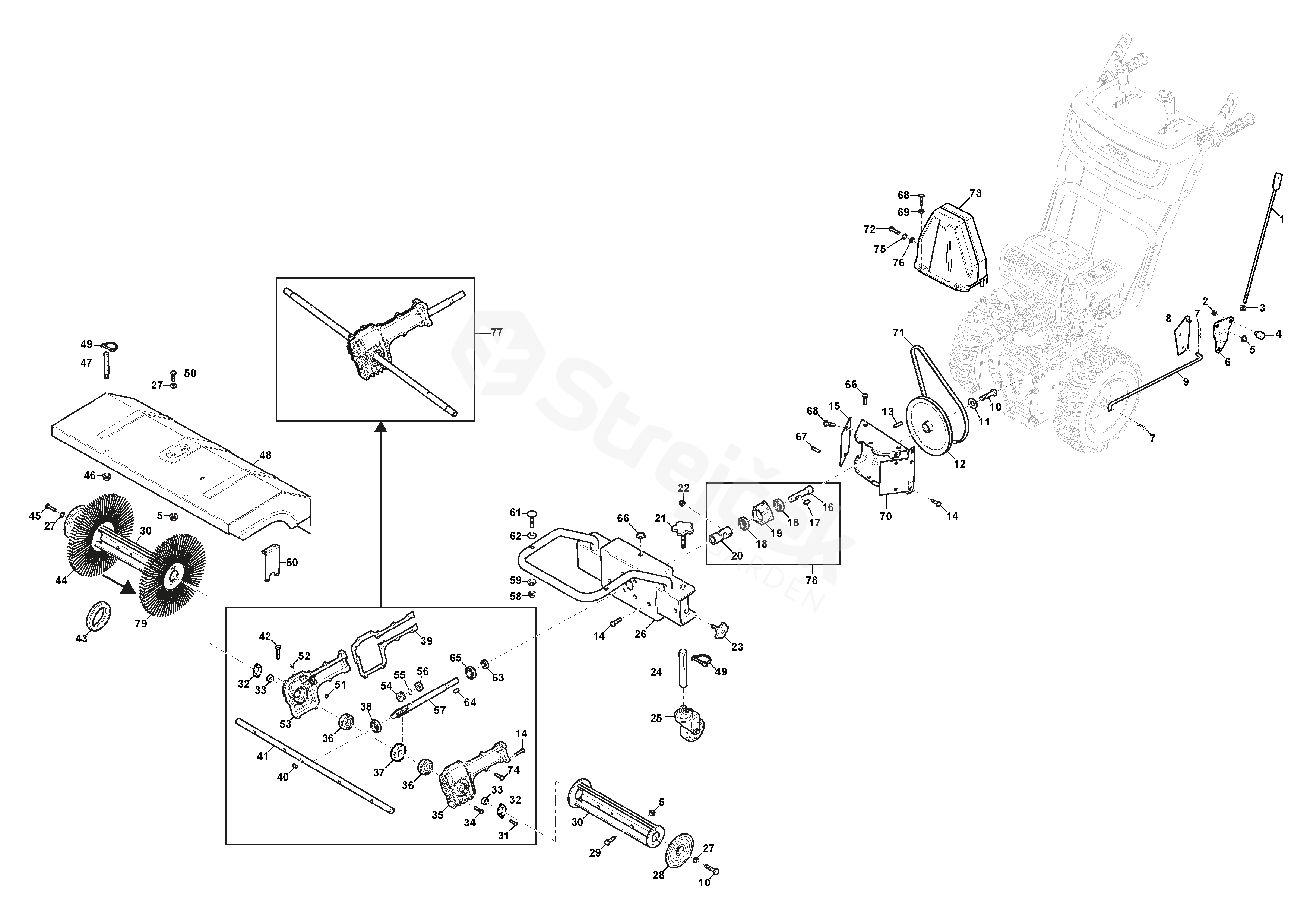

OKAY 4516 MS OKAY 4516 MS (2018) [219802537/RWA]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For OKAY 4516 MS (2018) [219802537/RWA]
1 Direction Rod 118820728/0
2 Nut 112154510/0
3 Nut 112293200/0
4 Pin 118820368/0
5 Nut 112155000/0
6 Welded Direction Plate 118820369/0
7 Cotter Pin 1811-3080-01
8 Welded fixing plate 118820729/0
9 Direction Rod 118820730/0
10 Screw 118821136/0
11 Washer 112523060/0
12 Pulley 118820253/0
13 Key 118820252/0
14 Screw 112793102/0
15 Plate 118820373/0
16 Short Shaft 118820374/0
17 Key 118820375/0
18 Ball Bearing 118820376/0
19 Bearing housing 118820377/0
20 Gimbal 118820378/0
21 Plastic Screw 118820731/0
22 Nut 112295200/0
23 Plastic Screw 118820732/0
24 Wheel Shaft 118820733/0
25 Wheel 118820734/0
26 FIXING PLATE 118820735/0
28 Plate 118820383/0
29 Screw 112691100/0
30 Fixing Plate 118820736/0
31 Screw 112727790/0
32 Oil Cap 118820738/0
33 Sealing 1811-3143-01
34 Screw 112791400/0
35 Right Housing 118820739/0
36 Ball Bearing 118820740/0
37 Worm gear 118820386/0
38 Ball Bearing 118820751/0
39 Washer 118820741/0
40 Key 1811-3144-01
41 Shaft 118820390/0
42 Screw 118820423/0
43 Brush Pad 118820391/0
44 Straight Brush
Straight 		118820392/0
45 Screw 112793301/0
46 Nut 9739-1031-22
47 Connector 118820393/0
48 Brush Cover 118820743/0
49 Cap 118820379/0
50 Screw 112792610/0
52 Air cap 118820745/0
53 Left housing 118820746/0
54 Ball Bearing 118820158/0
55 Seeger 112609260/0
56 Sealing Wheel 118820399/0
57 Worm Shaft 118820747/0
58 Nut 112154210/0
59 Nut 118820041/0
60 Support 118820748/0
61 Screw 112793850/0
62 Washer 122671651/0
63 Seal Ring 118820744/0
64 Key 118820400/0
65 Ball Bearing 1811-3150-01
66 Pad 118820749/0
67 Pin 118801147/0
68 Screw 112790781/0
69 Washer 112521330/0
70 FIXING PLATE 118820402/0
71 Belt 118820750/0
72 Screw 112792611/0
73 Belt cover 118820404/0
74 Screw 112791500/0
75 Washer 112521331/0
76 Grower 112582100/0
77 Gear Box Assy 118820787/0
78 Short Shaft Assy 118821090/0
79 Folded Brush
Folded 		118820821/0
