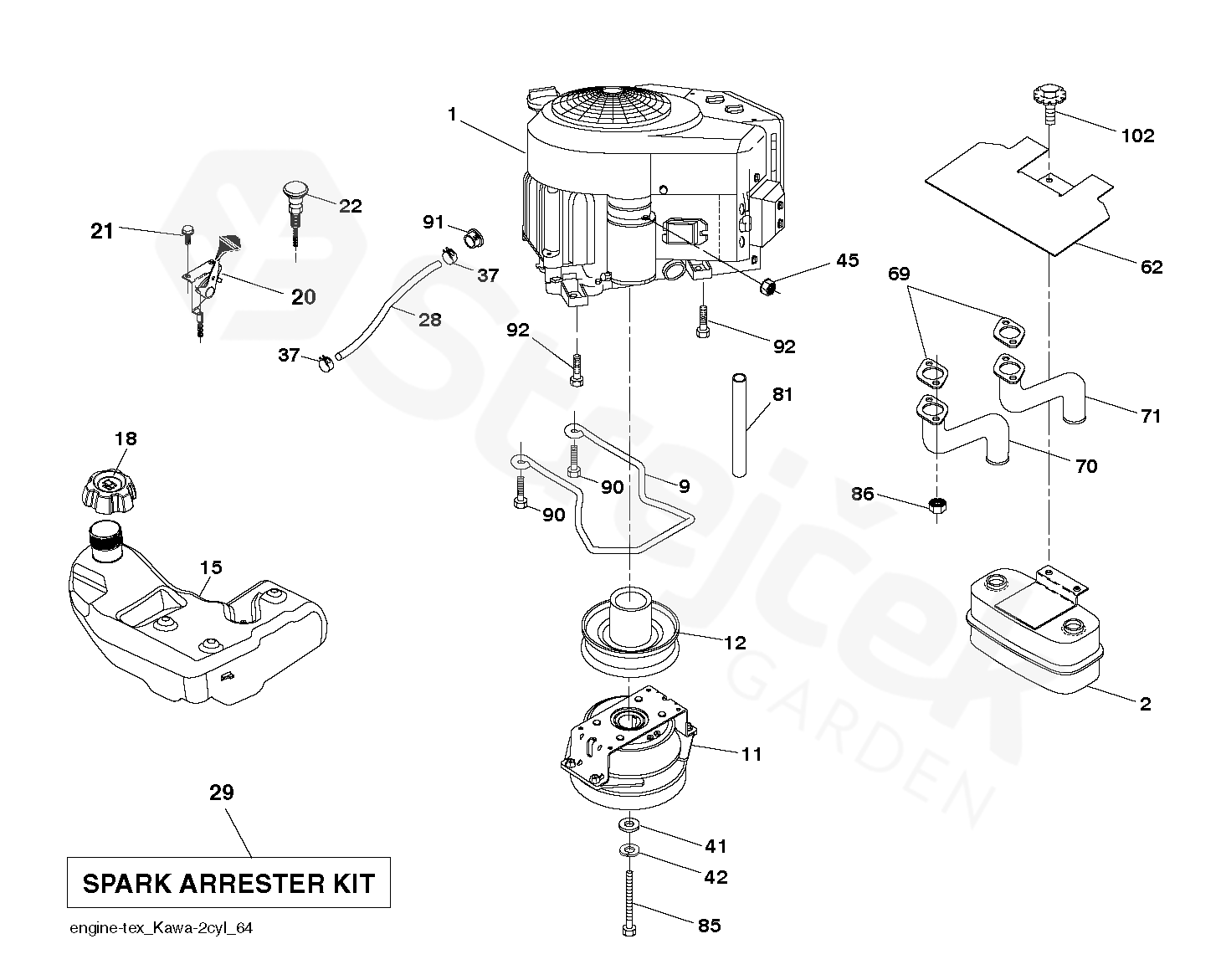

Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TS 242 TS242, 96041044600, 2019-05 > ENGINE
Back to
ENGINE
TS 242 TS242, 96041044600, 2019-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TS242, 96041044600, 2019-05
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
KAWA Model No. FR600V-AS11 (581477001) 		000000000
2 MUFFLER 589818701
9 KEEPER 501832602
11 CLUTCH 587241501
12 PULLEY 532405097
15 FUEL TANK 532438027
18 CAP 585124801
20 CABLE 532412165
21 SCREW 596321701
22 CHOKE CONTROL 532189541
28 HOSE 587044860
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 WASHER 596238901
45 LOCK NUT 596133601
62 SHIELD 532434017
69 MUFFLER GASKET 532178151
70 TUBE 583955601
71 TUBE 583955701
81 TRUBKA 532148456
85 BOLT 581332804
86 NUT HEX FLANGE TOPLOCK 532184362
90 SCREW 817000616
91 BUSHING 532187495
92 SCREW 817120616
102 SCREW 817000512
