Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TC 130 TC 130, 96051018800, 2019-07 > ENGINE
Back to

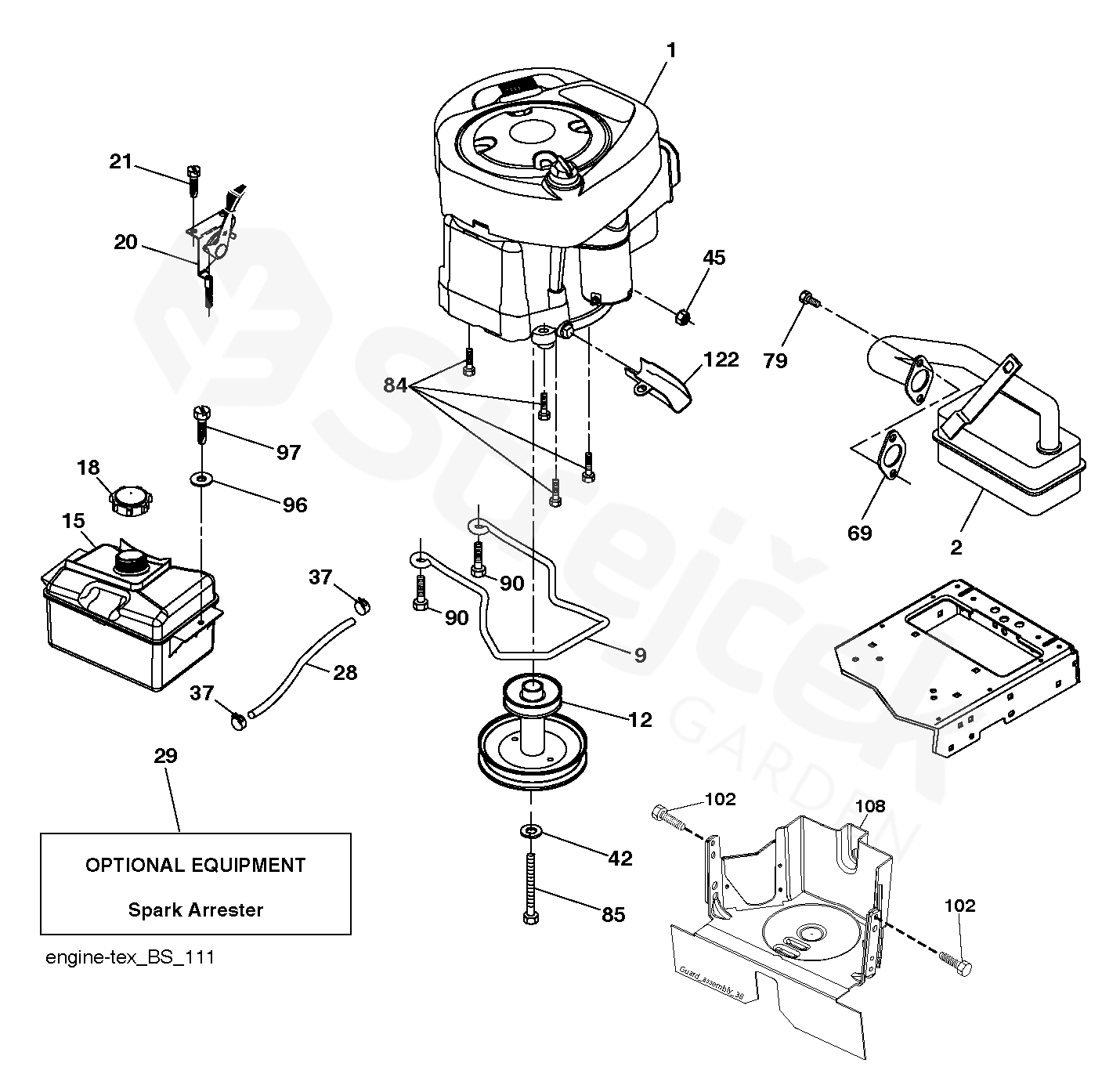

ENGINE
TC 130 TC 130, 96051018800, 2019-07
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 130, 96051018800, 2019-07
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE B&S MODEL NO. 21R777-0100-B5 (597359501) 		000000000
2 MUFFLER 532179758
9 KEEPER 582540302
12 PULLEY 532140186
15 TANK 581289901
18 HUB CAP 532430220
20 THROTTLE 587242601
21 SCREW 596321701
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 WASHER 596238901
45 LOCK NUT 596133601
69 GASKET 532165291
79 SCREW 596134202
84 SCREW 817060620
85 BOLT 501606501
90 SCREW 817000616
96 WASHER 596135301
97 SCREW 817670412
102 SCREW 817000512
108 COVER 587179512
122 EXTENSION PIPE 532421922
