Spare parts
>
Husqvarna
>
ZERO TURN: COMMERCIAL
>
Z 560x Z 560x, 967669703-01, 2020-04
>
SEAT
Back to
Z 560x
Z 560x, 967669703-01, 2020-04
SEAT
Z 560x
Z 560x, 967669703-01, 2020-04

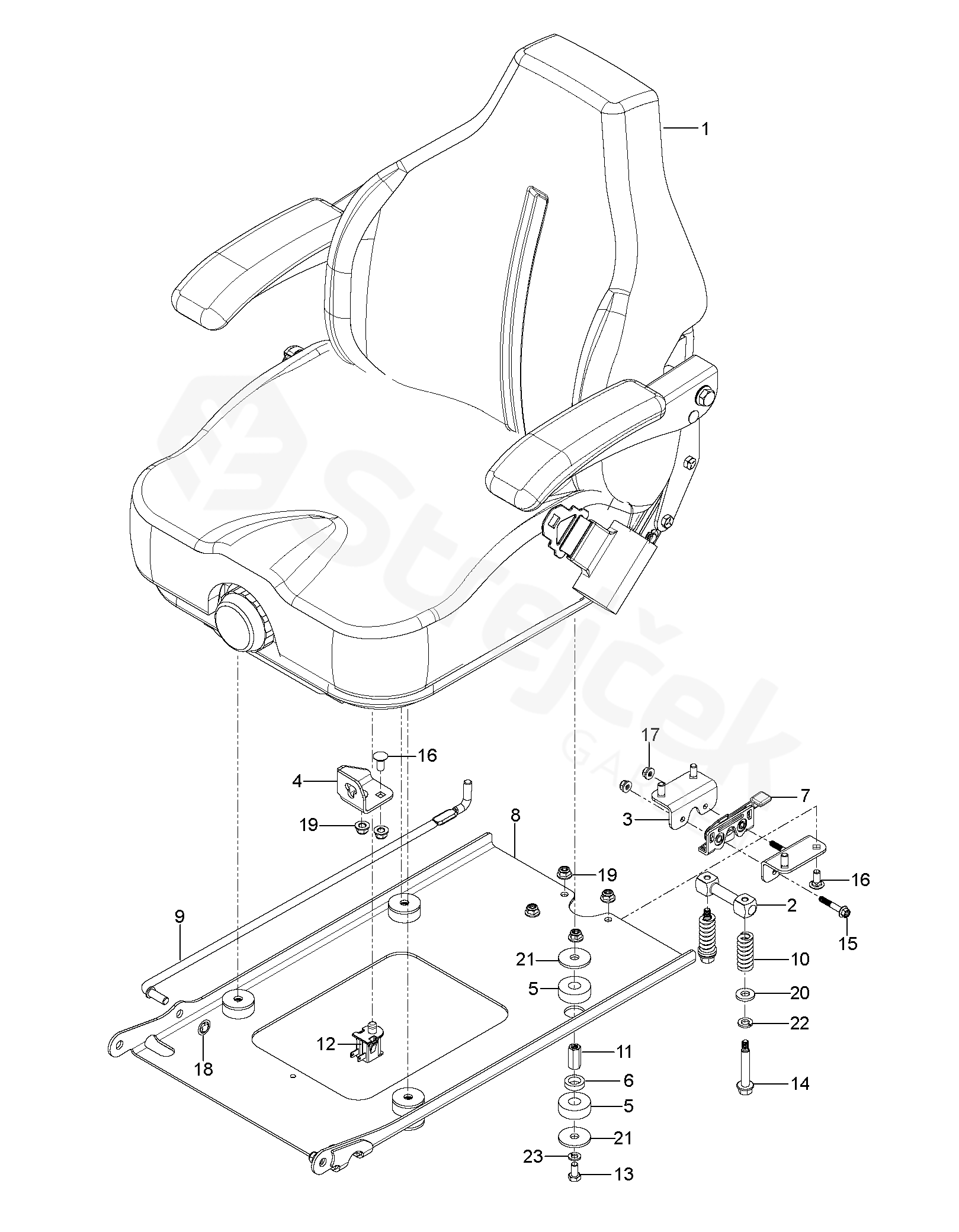

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Z 560x, 967669703-01, 2020-04
1
SEAT ASSY
579866104
2
BAR
582478801
3
BRACKET
582478201
4
BRACKET
590555002
5
ISOLATOR
590481801
6
ISO-MOUNT INSERT
539116377
7
LATCH
590373501
8
PLATE
590506802
9
ROD
590507201
10
SPRING
539113952
11
NUT
582478101
12
SWITCH.SEAT.DP W/RAMPS
532192749
13
HCS 5/16-18 X 5/8 GR 5 ZD
539108392
14
SCREW
582478901
15
SCREW
582478501
16
BOLT
539990316
17
BOLT
582478601
18
BOLT RETAINER 3/8
539913847
19
BOLT RETAINER 3/8
539112899
20
NUT, 5/16-18, NYLOC
522023401
21
PODLOŽKA
532413524
22
PODLOŽKA
539990118
23
PODLOŽKA
539990187
