Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > Z 454X Z 454X, 967985002-00, 2020-01 > STEERING - CONTROL BRACKET
Back to

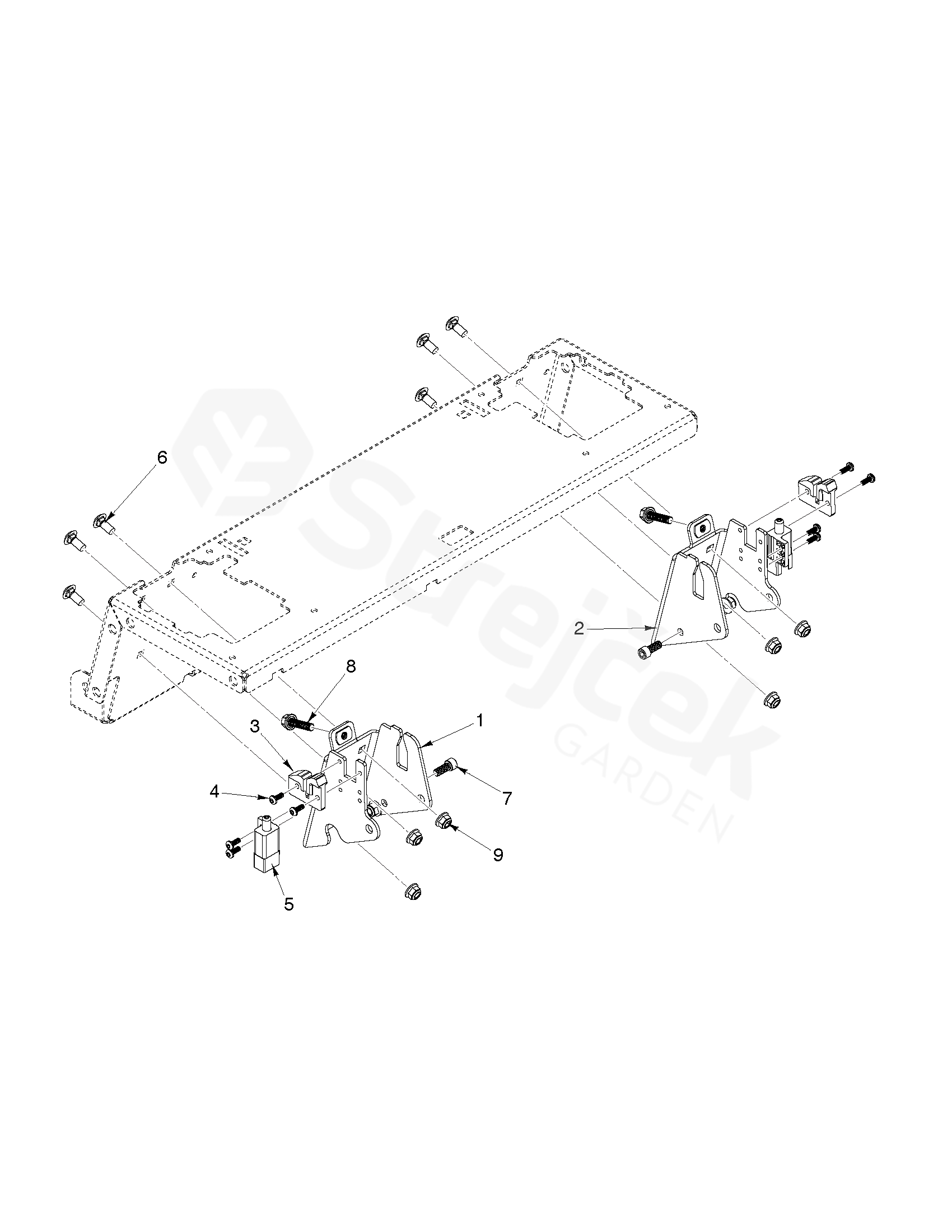

STEERING - CONTROL BRACKET
Z 454X Z 454X, 967985002-00, 2020-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Z 454X, 967985002-00, 2020-01
1 BRACKET
PIVOT BRACKET LH 		596885401
2 BRACKET
PIVOT BRACKET RH 		596885402
3 GUIDE
CONTROL GUIDE 		596290901
4 SCREW
SCREW PAN HD 10-24 		597856201
5 SWITCH
SWITCH INTERLOCK 		587601501
6 BOLT
BOLT 5/16 x 3/4 		595901601
7 SCREW
SCREW HEX HD 5/16-18 x 3/4 		596917101
8 BOLT
BOLT 5/16-18 x 1-1/4 		585986101
9 NUT
NUT 5/16-18 		594944401
