Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
POLE PRUNER/POLE SAWS
>
525 PT5S 525 PT5S
>
CARBURETOR
Back to
525 PT5S
525 PT5S

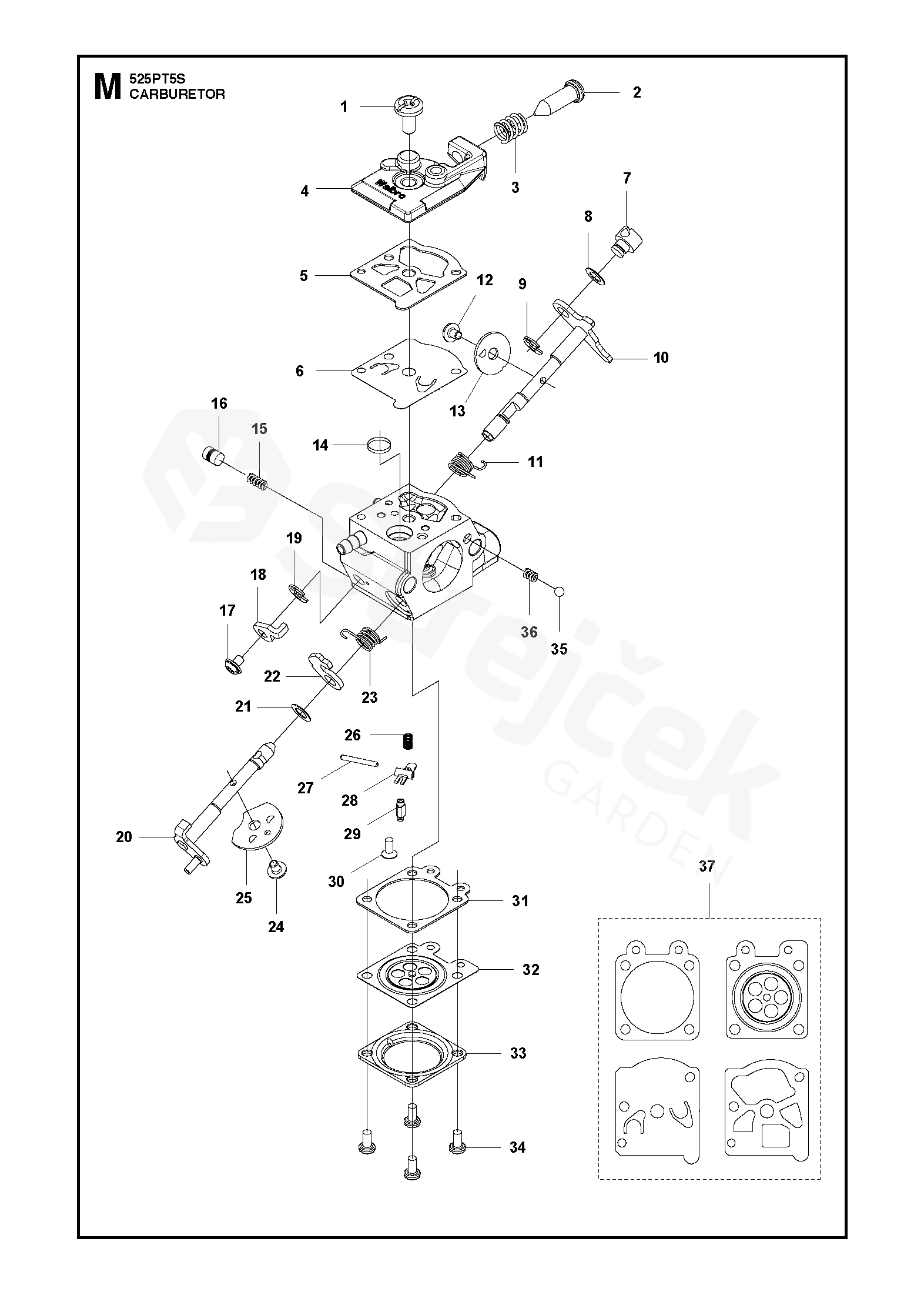

CARBURETOR
525 PT5S
525 PT5S
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
525 PT5S
1
SCREW
520976301
2
SCREW
577815701
3
PRUŽINA
513593201
4
COVER
579190601
5
GASKET
520954801
6
DIAPHRAGM PUMP
504130807
7
OTOČNÝ
513400801
8
PODLOŽKA
516524201
9
KROUŽEK
506738601
10
HRÍDEL
579190701
11
PRUŽINA
577815501
12
SCREW
520759801
13
VALVE
520978601
14
SCREEN
520957001
15
PRUŽINA
505057901
16
PÍST KOMPL.
584901201
17
SCREW
520759801
18
LEVER
579190801
19
KROUŽEK
505056501
20
HRÍDEL
579191001
21
PODLOŽKA
516524201
22
LEVER
584901301
23
PRUŽINA
579191101
24
SCREW
520759801
25
VALVE
581154901
26
PRUŽINA
578895401
27
KOLÍČEK
520977401
28
LEVER
577807201
29
VALVE.INLET
521085401
30
SCREW
577807101
31
GASKET
516972101
32
DIAPHRAGM
577807001
33
COVER
514189201
34
SCREW ASSY
520978801
35
BALL
514242601
36
SPRING.CHOKE
514243301
37
GASKET KIT
Coomopes by item 5, 6, 31 and 32
580684801
