Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > GTH2654 GTH2654, 96023000600, 960230006, 2005-03 > STEERING
Back to

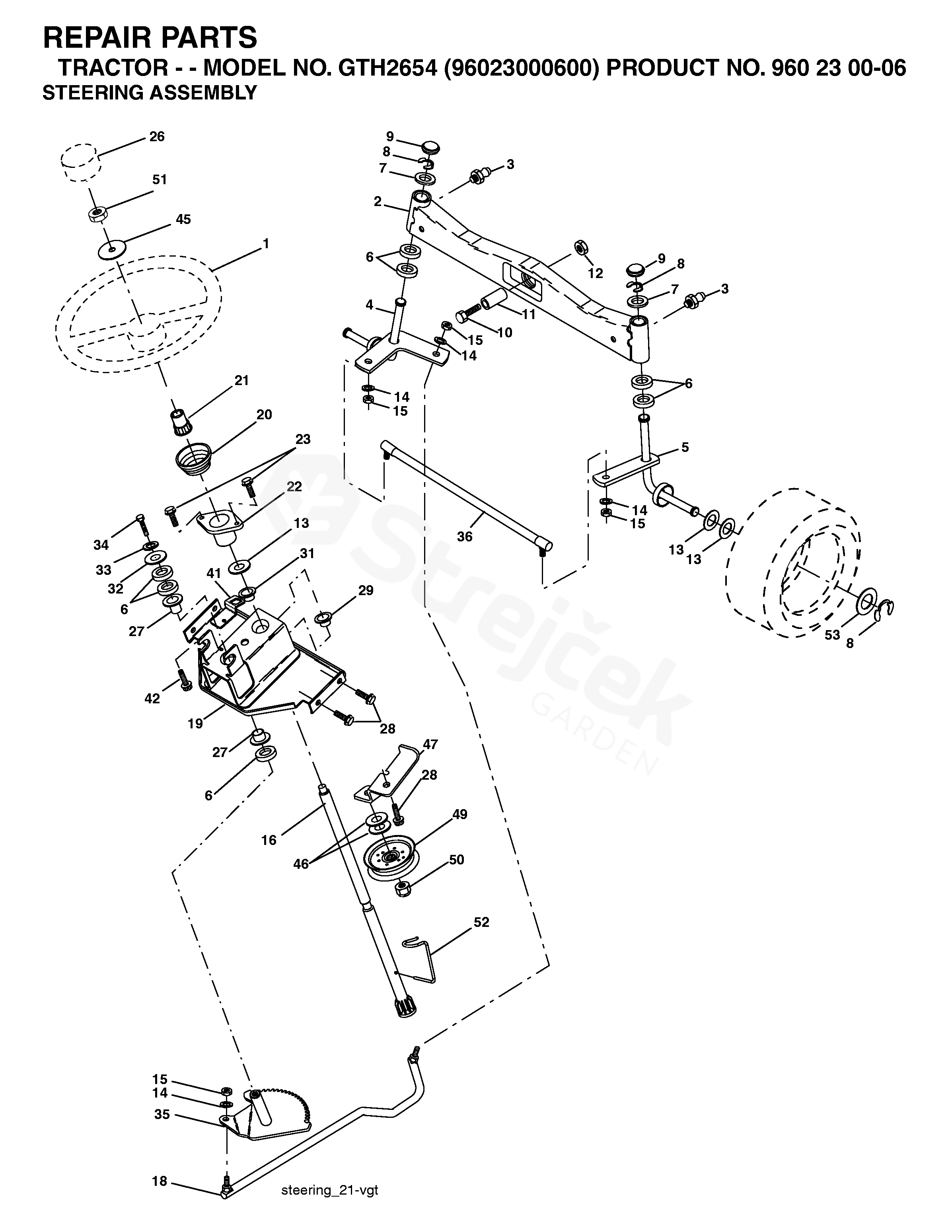

STEERING
GTH2654 GTH2654, 96023000600, 960230006, 2005-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GTH2654, 96023000600, 960230006, 2005-03
1 STEERING WHEEL 532193651
2 ESSIEU AVANT 532178557
3 FITTING 532183226
4 SPINDLE ASM, LH 532161849
5 SPINDLE ASM., RH 532161848
6 WASHER 532124931
7 PODLOŽKA 532121748
8 POJISTNÝ KROUŽEK 812000029
9 HUB CAP 532121232
10 SCREW 874781044
11 PIPE 532136518
12 NUT 873901000
13 WASHER 532121749
14 WASHER 810040600
15 NUT 873540600
16 COLUMN 532186814
18 DRAGLINK 532187799
19 SUPPORT 532156011
20 SOUFFLET*RPL.PAR 532163888 532177592
21 ADAPTER 532186737
22 BUSHING 532155105
23 SCREW 532152927
26 HUB 532193652
27 BEARING COL. STRG. 532124937
28 SCREW 817000612
29 BEARING 532104239
31 BUSHING 532138136
32 WASHER 819111610
33 PODLOŽKA 810040500
34 SCREW 874780512
35 SECTEUR CRANTE 532187039
36 ROD 532186799
41 BRACKET 532155246
42 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
45 WASHER 819183812
46 WASHER 819131610
47 SUPPORT TENSION DE COURROIE 532179471
49 PULLEY 532175820
50 MATICE 873900600
51 NUT 873940800
52 SPRING 532175553
53 PODLOŽKA 532188967
