Husqvarna
>
TRACTORS/RIDE MOWERS
>

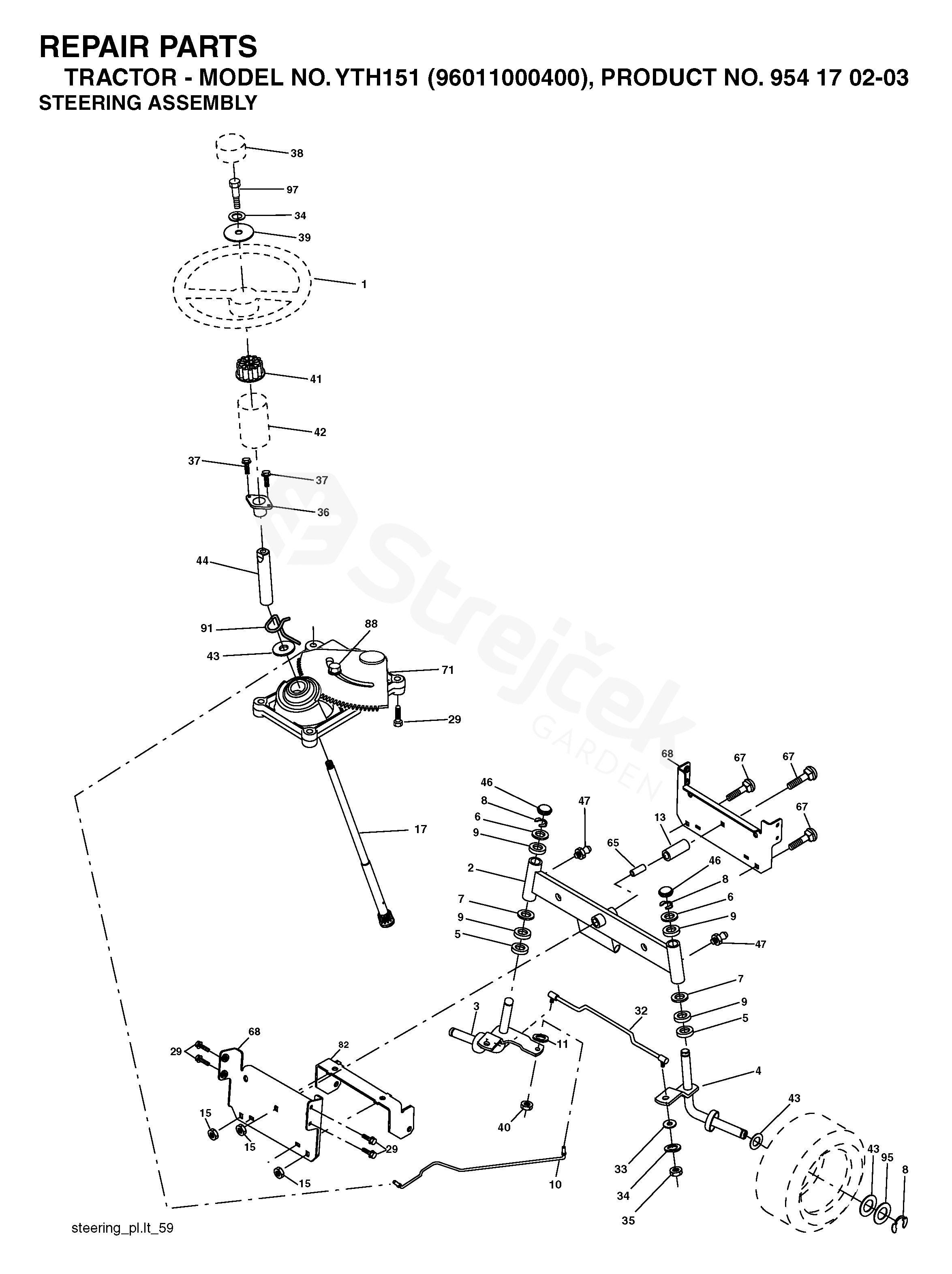

YTH151 YTH151, 96011000400, 954170203, 2005-01
>
STEERING
Back to
YTH151
YTH151, 96011000400, 954170203, 2005-01
STEERING
YTH151
YTH151, 96011000400, 954170203, 2005-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
YTH151, 96011000400, 954170203, 2005-01
1
STEERING WHEEL
532193651
2
AXLE
532175131
3
SPINDLE
532169840
4
SPINDLE
532169839
5
WASHER
532124931
6
PODLOŽKA
532121748
7
WASHER
819272016
8
POJISTNÝ KROUŽEK
812000029
9
BEARING COL. STRG.
532124937
10
ROD
532175121
11
WASHER
810040600
13
PIPE
532136518
15
MATICE
532145212
17
ROD
532190753
29
SCREW
817000612
32
ROD
532171888
33
PODLOŽKA
819111216
34
PODLOŽKA
810040500
35
NUT
873540500
36
BUSHING
532155099
37
SCREW
532152927
38
INSERT
532166626
39
WASHER
819113812
40
NUT
873540600
41
ADAPTER
532159945
42
SLEEVE
532169634
43
WASHER
532121749
44
SHAFT
532190752
46
HUB CAP
532121232
47
FITTING
532183226
65
SPACER
532160367
67
BOLT
872110618
68
SHAFT
532169827
71
STEERING GEAR
532175146
82
BRACKET
532169835
85
XMAS TREE FASTNER
532133835
88
BOLT
532175118
91
SPRING
532175553
95
PODLOŽKA
532188967
97
BOLT
874780564
