Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH1542 YTH1542E, 954567048, 2001-12 > SEAT
Back to

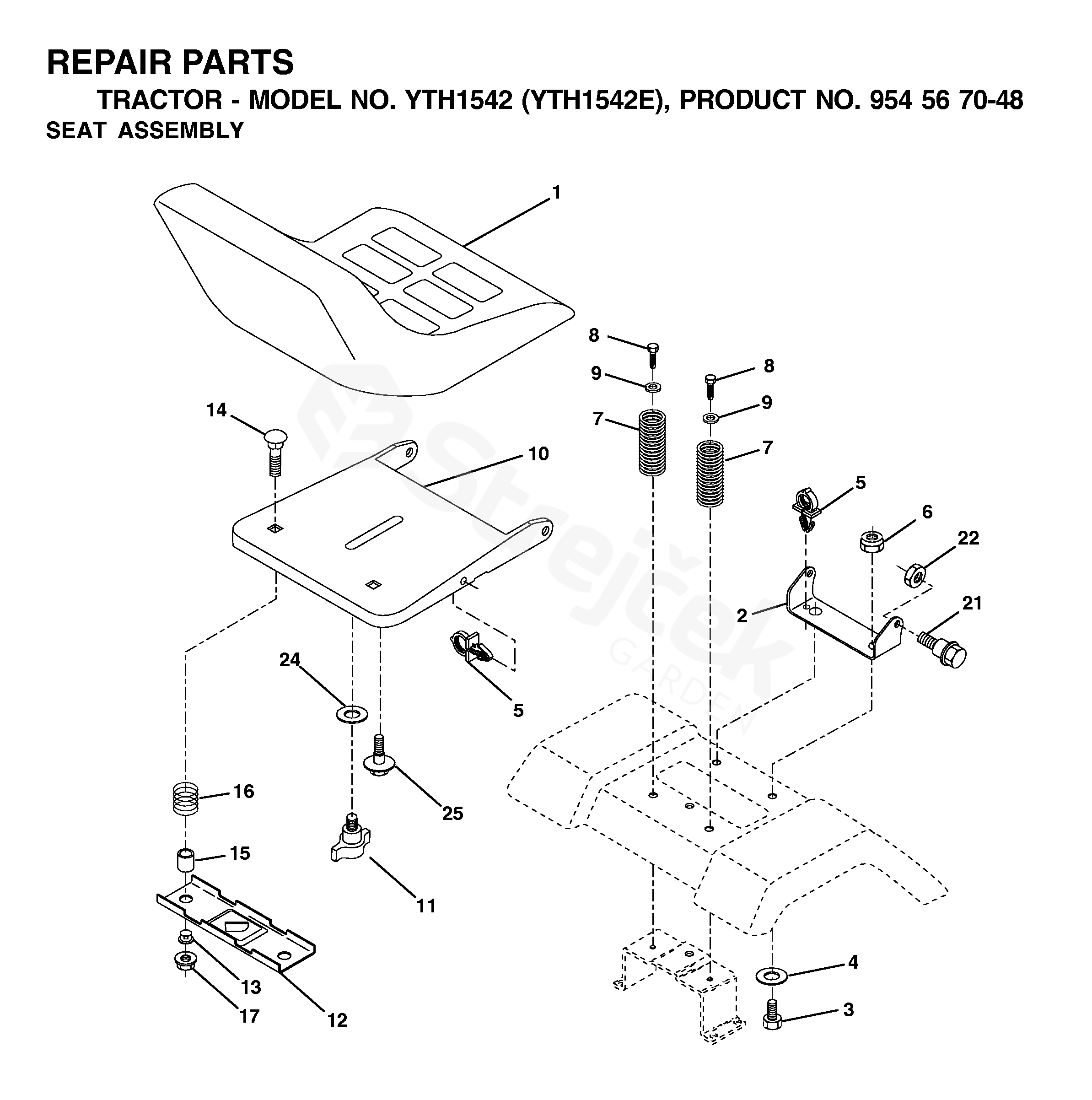

SEAT
YTH1542 YTH1542E, 954567048, 2001-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH1542E, 954567048, 2001-12
1 SEAT 532140838
2 BRACKET 532140551
3 SCREW 871110616
4 WASHER 819131610
5 CLIP 532145006
6 NUT 873800600
7 SPRING 532124181
8 SCREW 817000616
9 WASHER 819131614
10 PAN 532174894
11 WING NUT 532166369
12 BRACKET 532121246
13 BUSHING 532121248
14 BOLT 872050412
15 SPACER 532134300
16 SPRING 532121250
17 LOCKNUT 532123976
21 BOLT 532171852
22 BRACKET 873800500
24 WASHER 819171912
25 BOLT 532127018
