Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH1542 XP YTH1542 XP, HAU15H42A, 954170055, 2003-01 > ELECTRICAL
Back to
ELECTRICAL

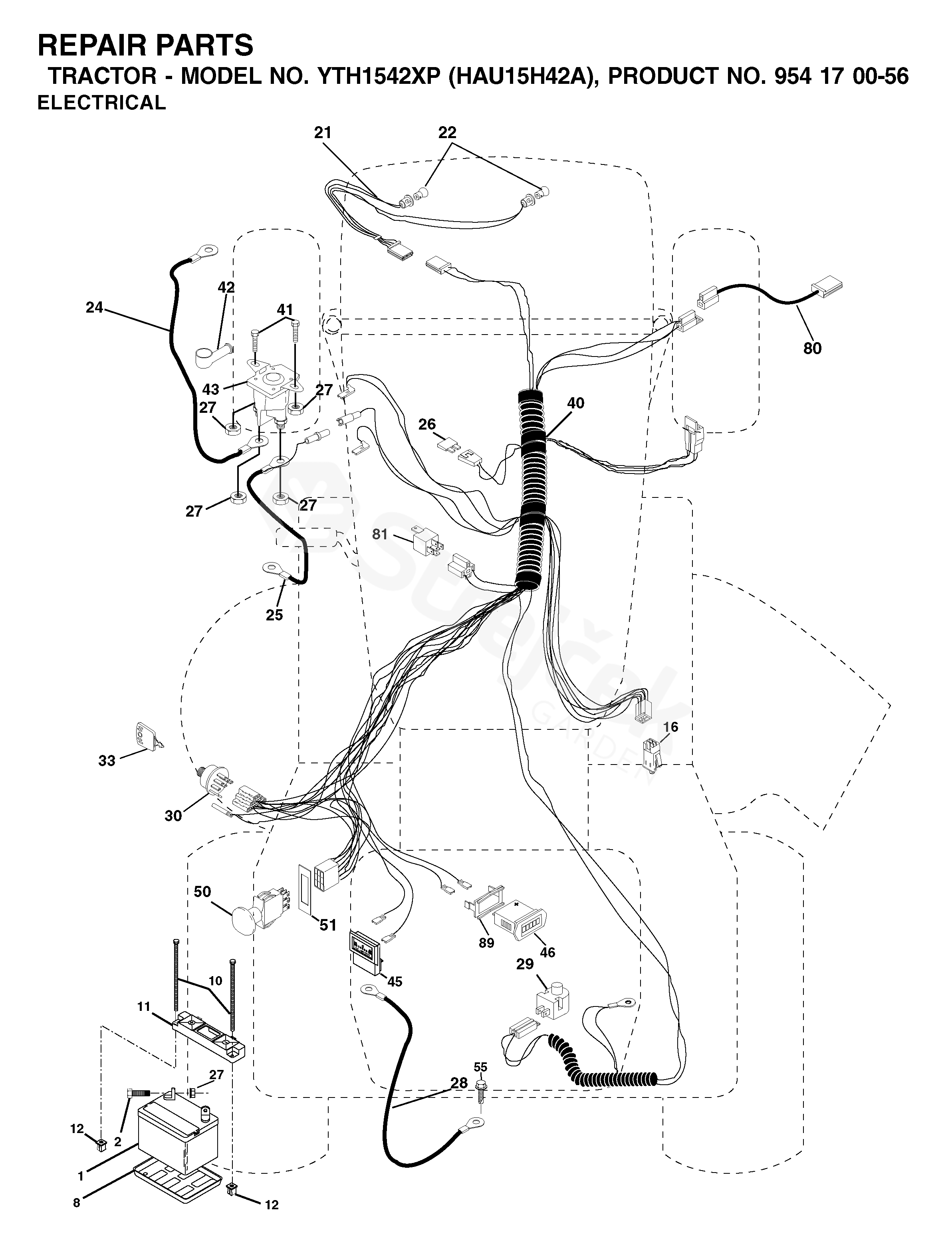

YTH1542 XP YTH1542 XP, HAU15H42A, 954170055, 2003-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH1542 XP, HAU15H42A, 954170055, 2003-01
1 BATTERY 532144927
2 BOLT 874760412
8 BATTERIE TRAY 532124886
10 BOLT 532145211
11 HOLDER 532150109
12 NUT 532145769
16 SWITCH 532153664
21 CABLE ASSY 532166181
22 BULB 532004152
24 CABLE 532146148
25 CABLE 532124780
26 FUSE 532175158
27 MATICE 873510400
28 CABLE 532145491
29 SWITCH 532160784
30 SWITCH 532175566
33 KEY 532140401
40 HARNESS 532178441
41 BOLT 871110408
42 COVER 532131563
43 SOLENOID 532178861
45 AMMETER 532122822
46 HOURMETER 532169635
50 SWITCH 532174651
51 FRAME 532140405
55 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
80 CABLE ASSY 532146685
81 RELAY 532109748
89 BRACKET 532169639
