Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > CTH180 XP CTH180 XP, HAUCT18H42E, 954170231, 2004-09 > ENGINE
Back to

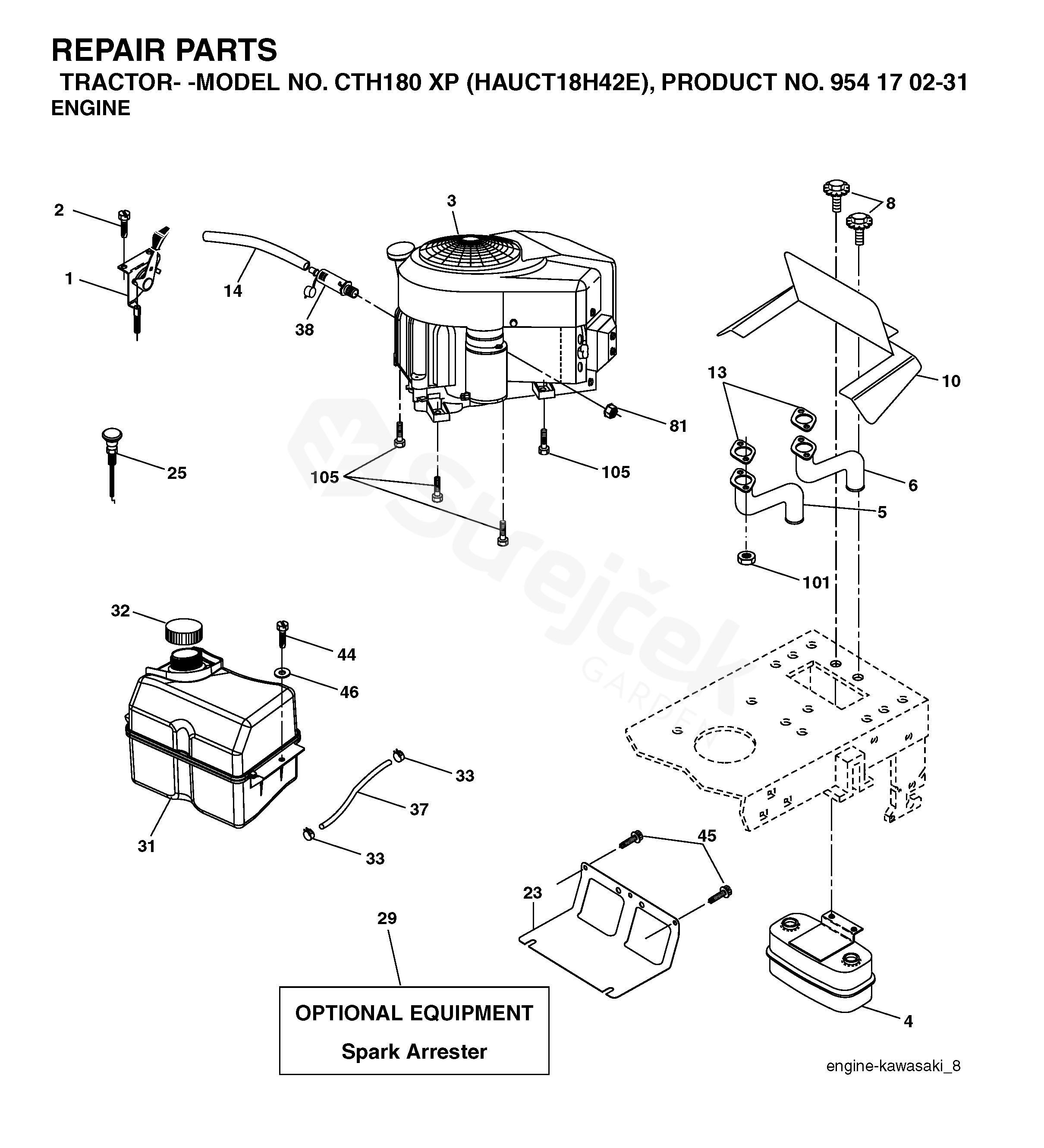

ENGINE
CTH180 XP CTH180 XP, HAUCT18H42E, 954170231, 2004-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CTH180 XP, HAUCT18H42E, 954170231, 2004-09
1 THROTTLE TRIGGER 532178385
2 SCREW 532171875
4 MUFFLER 532149723
5 TUBE 532176067
6 TUBE 532176068
8 BOLT 532171877
10 HEAT SHIELD 532146629
14 TRUBKA 532148456
23 HEAT SHIELD 532169837
25 COMMA*RPL.PAR 532187767428 532191596
29 SPARK ARRESTER KIT 532137180
31 TANK 532183361
32 FUEL CAP 532140527
33 HADICOVÁ SVĚRKA 532123487
37 HADICE 532137040
44 SCREW 817670412
45 SCREW 817000612
46 PODLOŽKA 819091416
81 MATICE 873510400
101 NUT HEX FLANGE TOPLOCK 532184362
105 SCREW 817120616
