Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > YTH2042 YTH2042, 96043012200, 2010-10 > MOWER DECK / CUTTING DECK
Back to

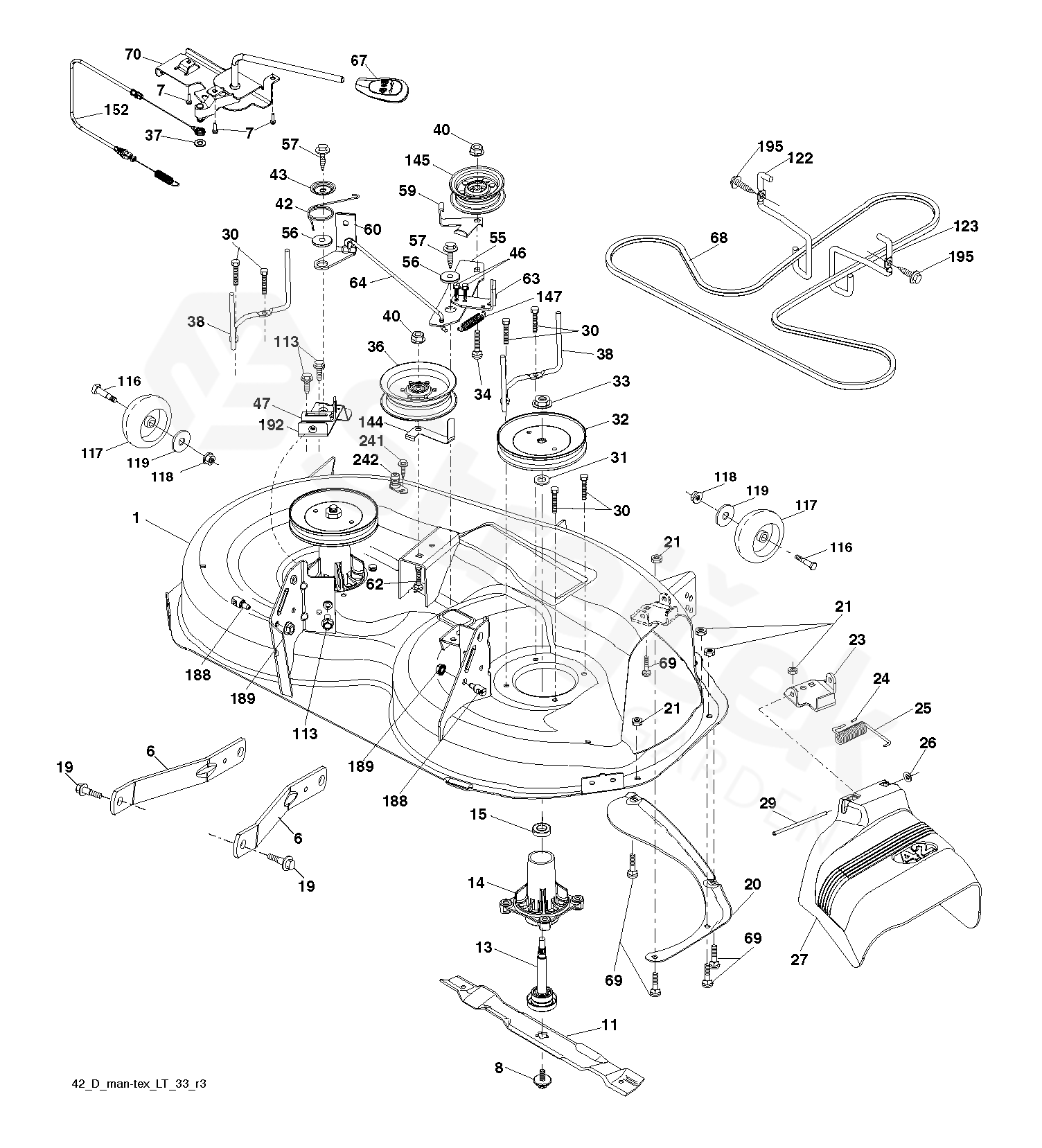

MOWER DECK / CUTTING DECK
YTH2042 YTH2042, 96043012200, 2010-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For YTH2042, 96043012200, 2010-10
1 CUTTING DECK 532439817
6 ARM 532195186
7 SCREW 532416358
8 SCREW 532193003
11 BLADE
FOR BAGGING OR DISCHARGING 		532138971
13 SHAFT ASSY 532192872
14 BEARING HOUSING 532187281
15 BEARING 532110485
19 BOLT 532196539
20 KOLEJNICE 532159770
21 MATICE 873680500
23 HINGE 532192557
24 HUB CAP 532105304
25 TORSION SPRING 532197026
26 MATICE 532110452
27 KRYT 532403004
29 HRÍDEL 532131491
30 SCREW 532173984
31 PODLOŽKA 532187690
32 PULLEY 532197473
33 MATICE 532400234
34 BOLT 872110612
36 PULLEY 532197379
37 PODLOŽKA 819131316
38 HLÍDAČ 532432520
40 MATICE 873900600
42 PRUŽINA 532198410
43 PRUŽINA 532197256
46 SCREW 532137729
47 BRACKET 532197250
55 ARM 532437110
56 ROZPĚRKA 532199092
57 SCREW 817000616
59 GUARD 532141043
60 ARM 532197261
62 BOLT 872110616
63 ARM 532199477
64 LINK BRAKE 532199918
67 HANDLE 532403012
68 BELT 532429636
69 BOLT 872140505
70 CLUTCH.ASM.MANUAL.YT.PREDATORQ 532199972
113 BOLT 817000510
116 BOLT 532124842
117 KOLO 532188606
118 MATICE 873930600
119 PODLOŽKA 819121414
122 BELT GUIDE
LH 		532197258
123 BELT GUIDE
RH 		532197259
144 BELT GUIDE 532199204
145 PULLEY 532193197
147 PRUŽINA 532401971
152 CABLE 532435110
188 ŠROUB 532195161
189 MATICE 873900500
192 BRACKET
LH 		532197260
195 SCREW 817000612
241 SCREW 532152927
242 PORT.WASHOUT 532415598
COUPLING 532416405
