Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > LTH171 LTH171, 96041002405, 2010-02 > ENGINE
Back to

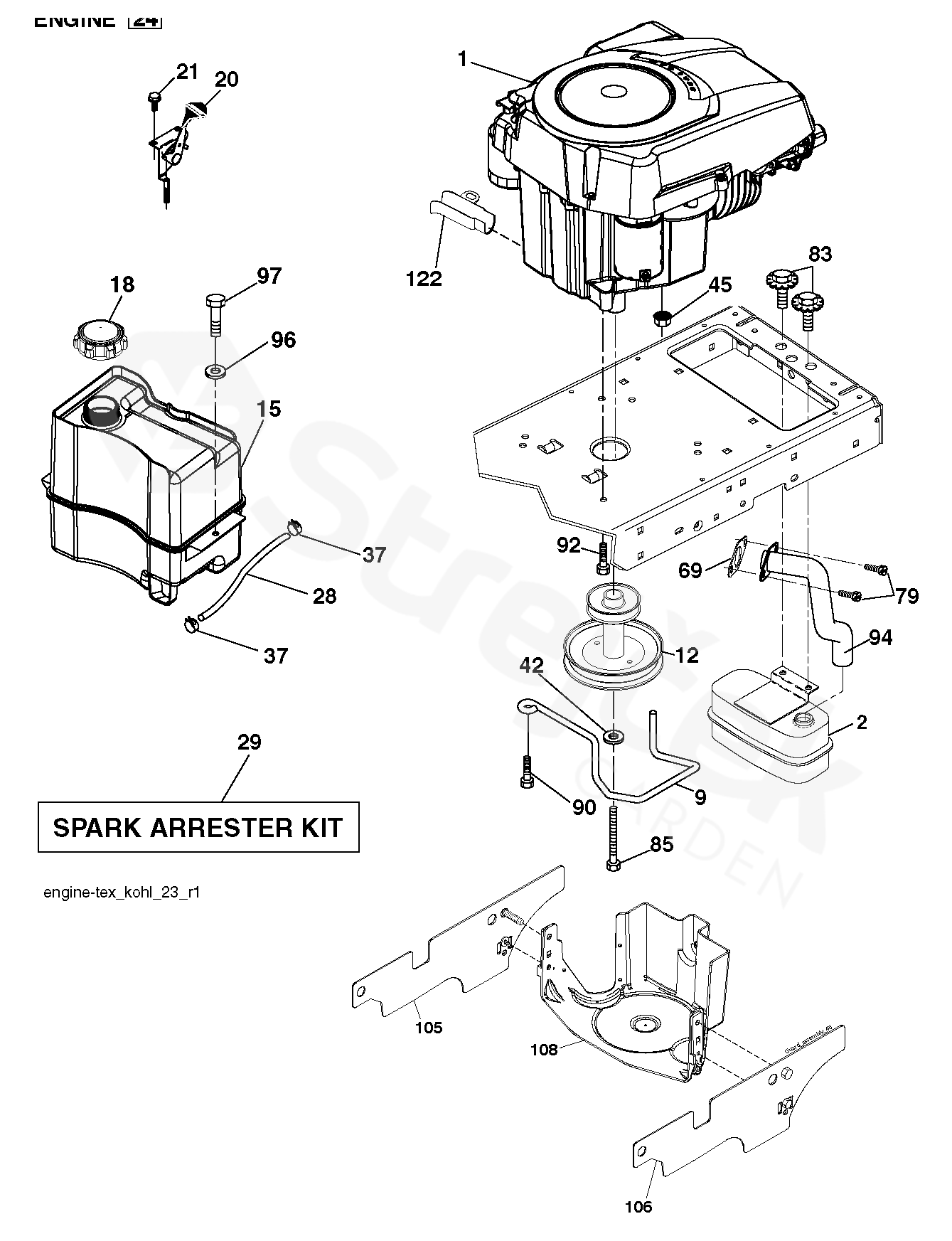

ENGINE
LTH171 LTH171, 96041002405, 2010-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LTH171, 96041002405, 2010-02
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
Engine Kohler Model No. SV530-0030 		000000000
2 MUFFLER EXHAUST 532188655
9 BELT GUIDE 532194320
12 PULLEY 532405471
15 FUEL TANK 532407545
18 HUB CAP 532430220
20 CONTROL 532183897
21 SCREW 532416358
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 WASHER 810040700
45 MATICE 873510400
69 GASKET 532185909
79 SCREW 532192334
83 BOLT 532171877
85 BOLT 532173937
90 SCREW 817000616
92 SCREW 817120616
94 TUBE EXHAUST 532188654
96 PODLOŽKA 819091416
97 SCREW 817670412
105 SHIELD 532440681
106 SHIELD 532440680
108 COVER 532421794
122 EXTENSION PIPE 532421922
