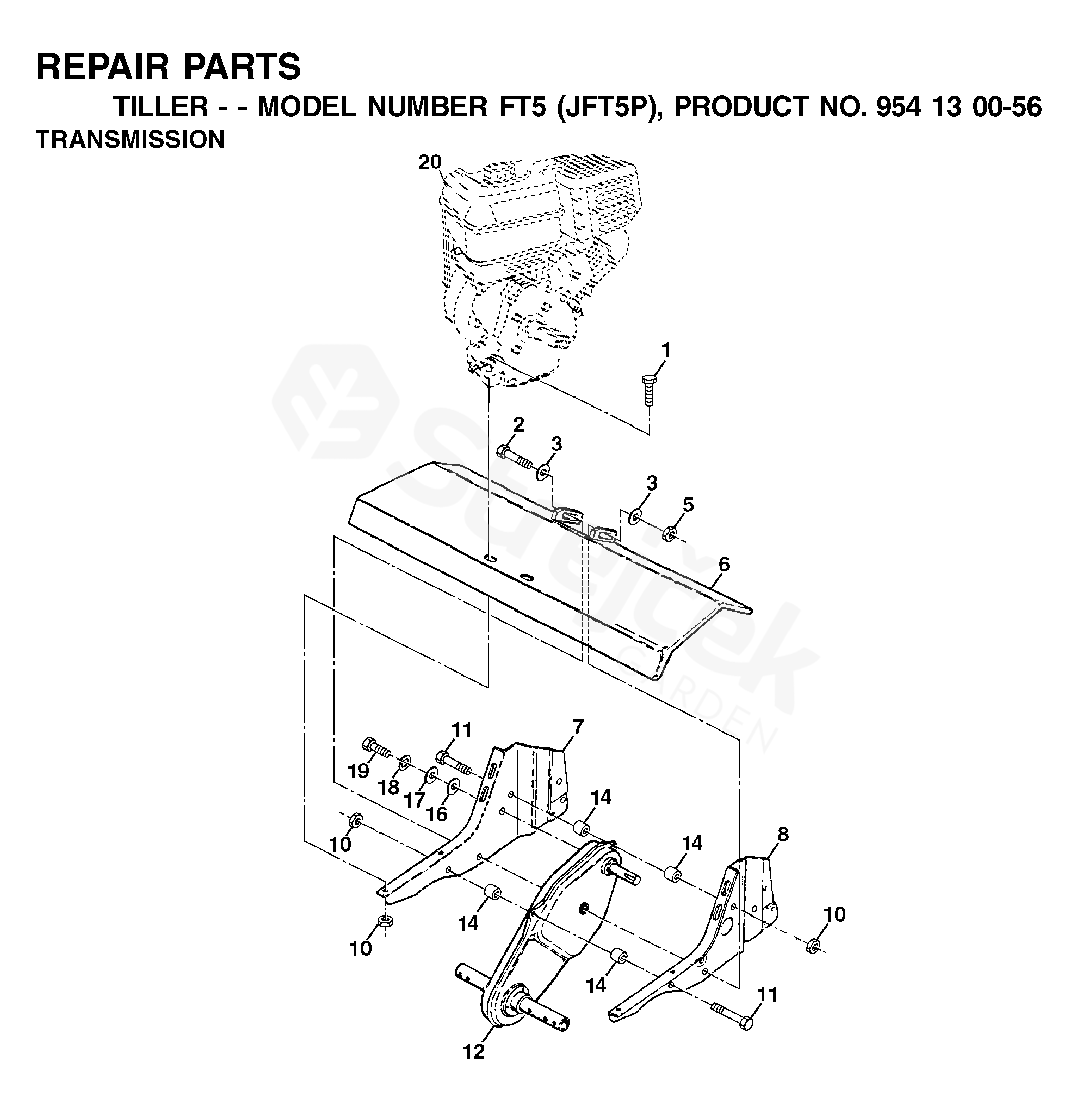

Spare parts > Jonsered > CULTIVATORS/TILLERS > FT5 FT5, JFT5P, 954130056, 2002-02 > TRANSMISSION
Back to
TRANSMISSION
FT5 FT5, JFT5P, 954130056, 2002-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FT5, JFT5P, 954130056, 2002-02
1 BOLT 874760524
2 BOLT 874780652
3 WASHER 819131311
5 NUT 873800600
6 PLATE 532138343
7 BRACKET.ENGINE.RH 532165835
8 BRACKET 532001948
10 MATICE 873970500
11 BOLT 874760544
12 TRANSMISSION ASM.W/EXT. 532176112
14 SPACER 532009173
15 MATICE 873970500
16 WASHER 819091412
17 WASHER 819092016
18 WASHER 810040400
19 BOLT 874610412
