Spare parts > Jonsered > FRONTRIDERS > FR2116 MA FR2116 MA, 953535401, 2004-01 > 103CM CUTTING DECK
Back to

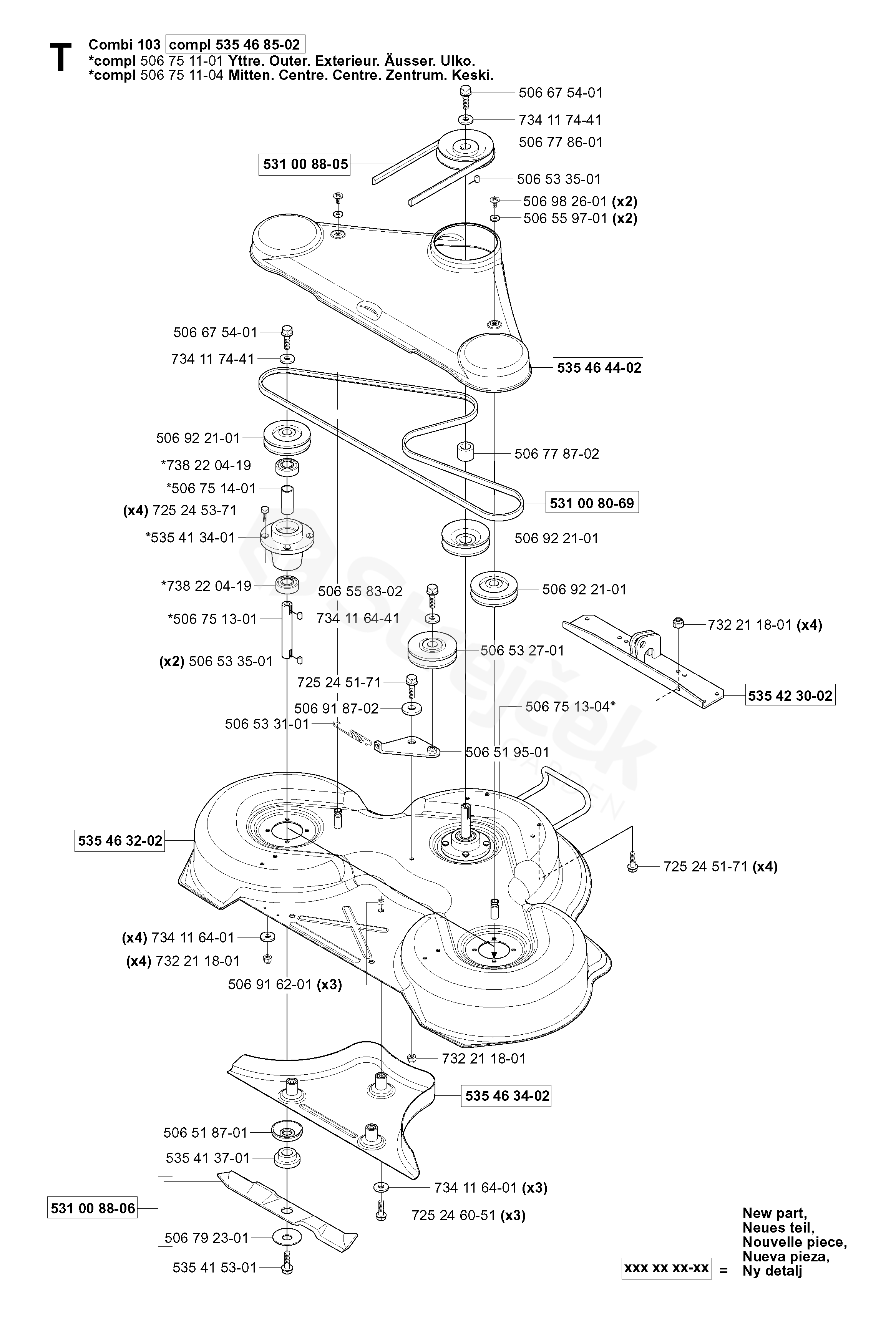

103CM CUTTING DECK
FR2116 MA FR2116 MA, 953535401, 2004-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2116 MA, 953535401, 2004-01
506518701 DUST COVER 506518701
506519501 ARM New 50 mm 506519501
506532701 PULLEY 506532701
506533101 PRUŽINA 506533101
506533501 PARALELNÍ KLÍN 506533501
506558302 SCREW EHHFT 506558302
506559701 WASHER 506559701
506675401 SCREW EHHFM 506675401
506751101 BLADE HOUSING ASSY
YTTRE. 		506751101
506751104 BLADE HOUSING ASSY
MITTEN. 		506751104
506751301 SHAFT 506751301
506751304 SHAFT 506751304
506751401 SPACER 506751401
506778601 PULLEY 506778601
506778702 SPACER 506778702
506792301 KNIFE PLATE 506792301
506916201 BLIND RIVET NUT 506916201
506918702 PODLOŽKA 506918702
506922101 PULLEY 506922101
506982601 SCREW 506982601
531008069 BELT 531008069
531008805 BELT 531008805
531008806 KNIFE KIT 531008806
535413401 BEARING HOUSING 535413401
535413701 ADAPTER 535413701
535415301 SCREW 535415301
535423002 BRACKET 535423002
535463202 DECK SHELL ASSY 535463202
535463402 PLUG ASSY 535463402
535464402 BELT COVER 535464402
535468502 CUTTING UNIT ASSY
COMBI 103 		535468502
725245171 SCREW EHHM 725245171
725245371 SCREW EHHM 725245371
725246051 SCREW EHHM 725246051
732211801 LOCK NUT 732211801
734116401 PODLOŽKA 734116401
734116441 PODLOŽKA 734116441
734117441 PODLOŽKA 734117441
738220419 BALL BEARING 738220419
