Spare parts > Jonsered > CHAIN SAWS > 2054 2054, 1993-05 > CLUTCH & OIL PUMP
Back to

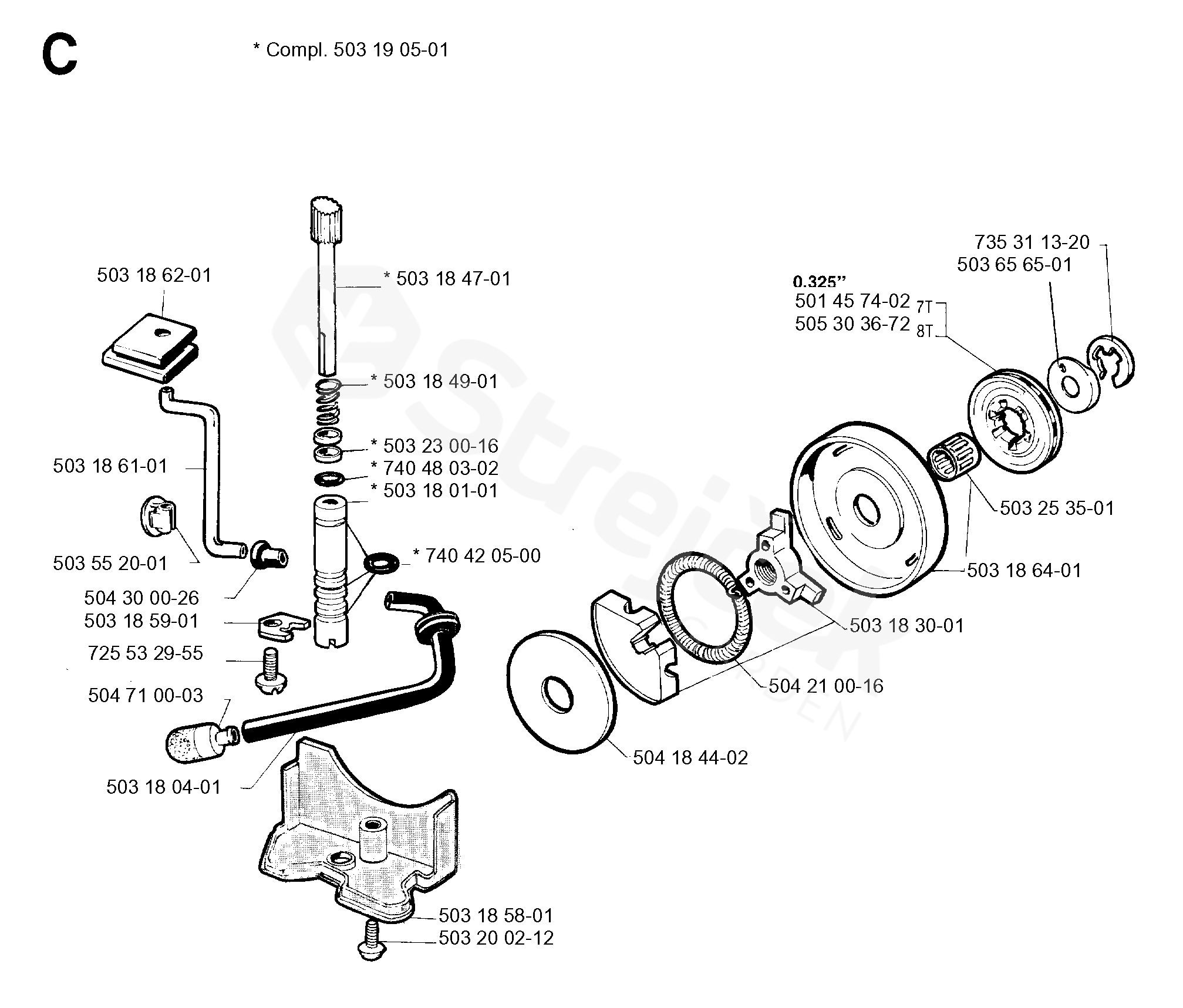

CLUTCH & OIL PUMP
2054 2054, 1993-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2054, 1993-05
501457402 RÁFEK
0.325 7T 		501457402
503180101 PUMP CYLINDER 503180101
503180401 OIL HOSE 503180401
503183001 CLUTCH ASSY 503183001
503184701 PUMP PISTON 503184701
503184901 PRUŽINA 503184901
503185801 COVER 503185801
503185901 WASHER 503185901
503186101 OIL PIPE 503186101
503186201 SEALING 503186201
503186401 CLUTCH DRUM 503186401
503190501 PUMP ASSY 503190501
503200212 SCREW IHSCFM 503200212
503230016 PODLOŽKA 503230016
503253501 NEEDLE BEARING 503253501
503303672 0,325 8T 503303672
503552001 CLIP 503552001
503656501 WASHER 503656501
504184402 WASHER 504184402
504210016 CLUTCH SPRING 504210016
504300026 SEALING 504300026
504710003 OIL PLUMMET 504710003
725532955 SCREW IHSCM 725532955
735311320 E-CLIP 735311320
740420500 O-KROUŽEK 740420500
740480302 O-RING 740480302
