Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > 500 RSV 500 RSV, 1996-01 > HANDLE & CONTROLS
Back to

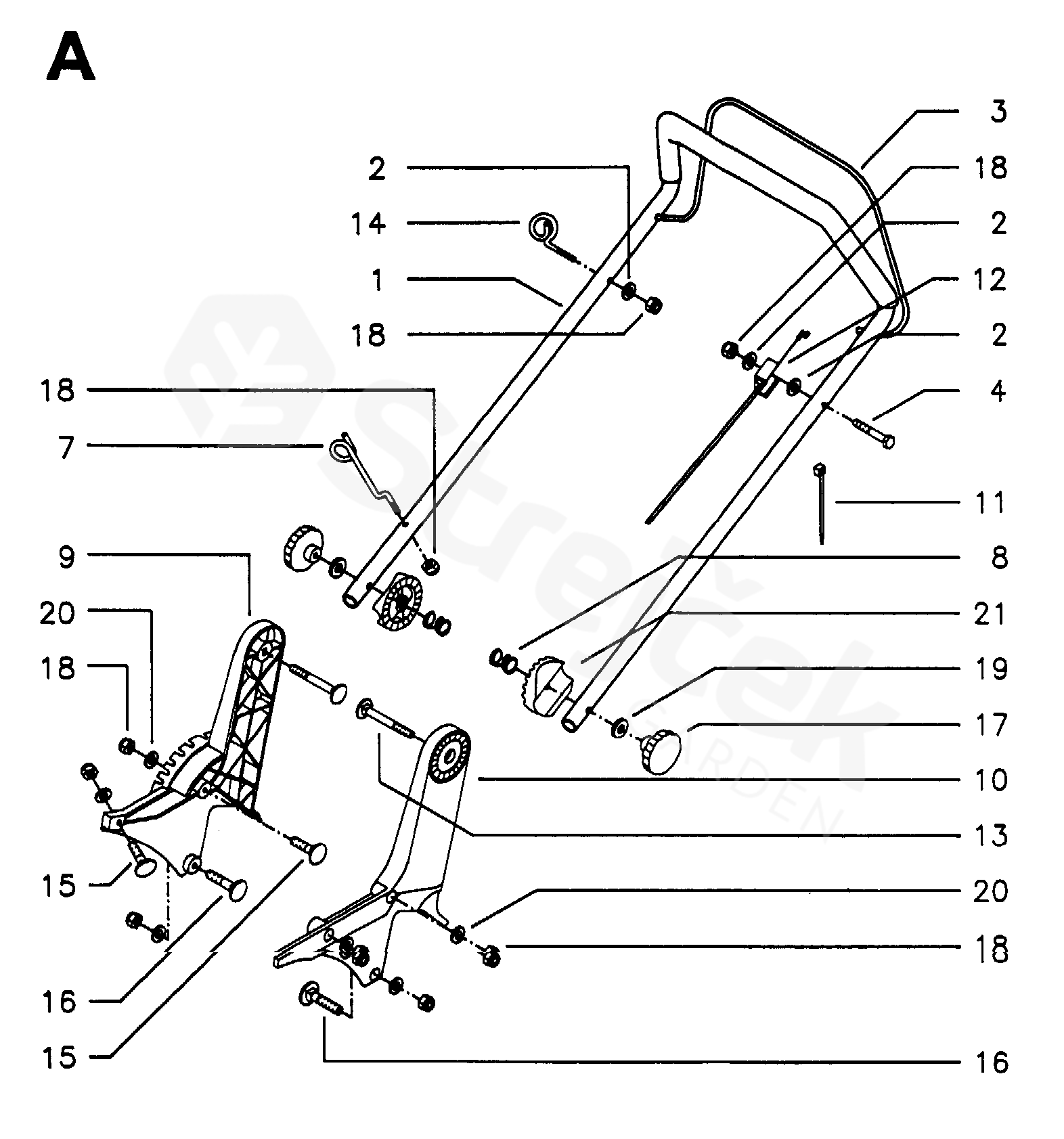

HANDLE & CONTROLS
500 RSV 500 RSV, 1996-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 500 RSV, 1996-01
1 HANDLE 517770181
2 WASHER 734115301
3 LOOP 516632309
4 SCREW EHHM 725237851
7 HOLDER 516636301
8 SPRING 516440601
9 BRACKET 516870609
10 BRACKET 516870709
11 HOOP 516844509
12 WIRE 517810066
13 BOLT 515711865
14 HOLDER 516627101
15 SCREW RSQM 727637001
16 SCREW 515711625
17 KNOB 516870409
18 LOCK NUT 732211601
19 WASHER 515796009
20 WASHER 516449101
21 CLIP 516870509
