Spare parts > Jonsered > TRACTORS/RIDE MOWERS > LR 12 LR 12, 36, 1995-01 > FRONT AXLE
Back to

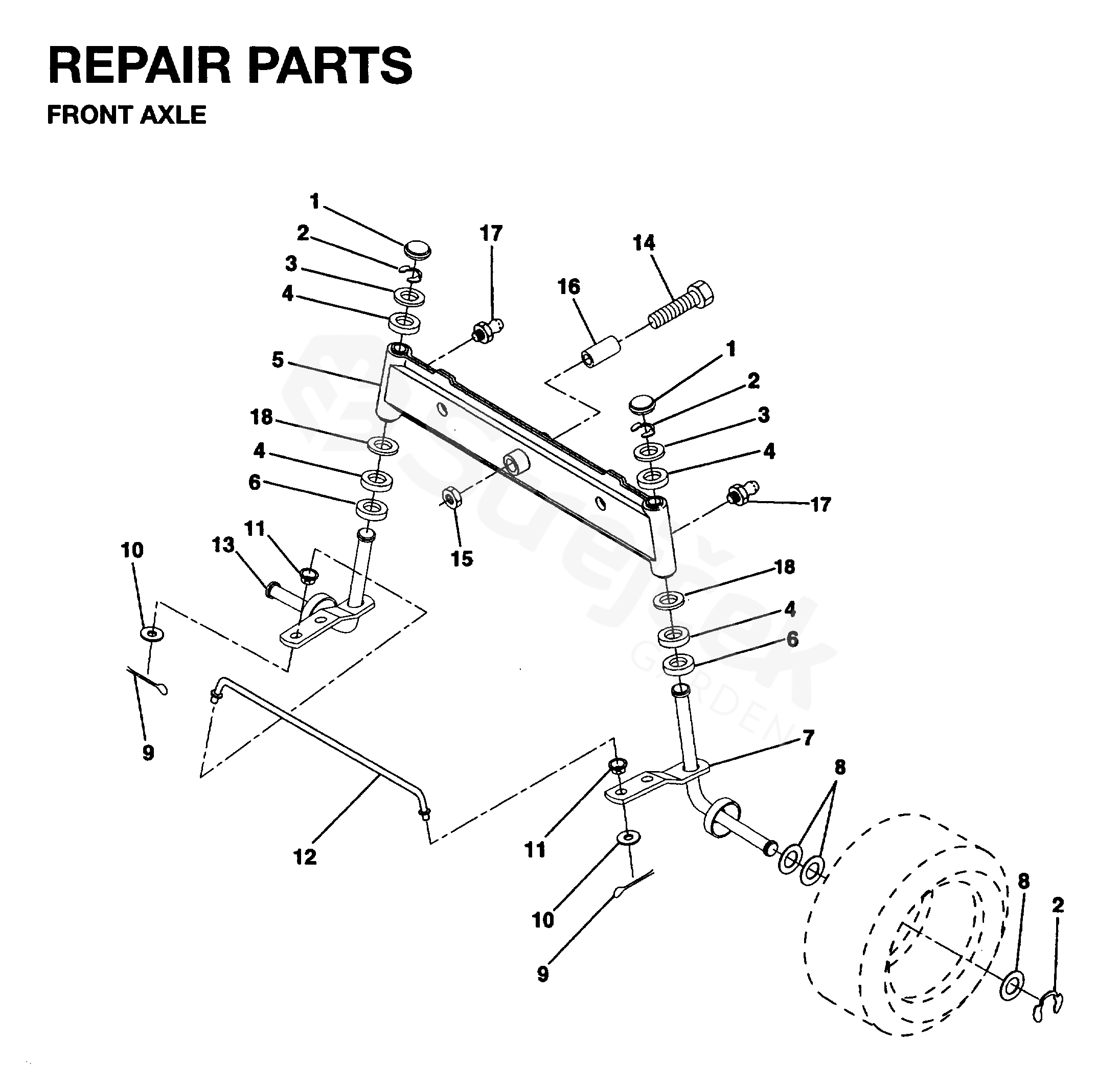

FRONT AXLE
LR 12 LR 12, 36, 1995-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR 12, 36, 1995-01
5/15 ENGINE & CUTTING EQUIPMENT
6/15 FRONT AXLE
7/15 HOOD
1 HUB CAP 532121232
2 POJISTNÝ KROUŽEK 812000029
3 PODLOŽKA 532121748
4 BEARING 532003366
5 AXLE 532142033
6 WASHER 532006266
7 SPINDLE 532137062
8 WASHER 532121749
9 SPLIT PIN 876020412
10 HEXAGON NUT 734117201
11 BUSHING 532126847
12 ROD 532130465
13 SPINDLE 532137061
14 BOLT 874011056
15 NUT 873681000
16 SPACER 532110438
17 NIPPLE 532124836
18 WASHER 819272016
