Spare parts
>
McCULLOCH
>
CHAIN SAWS
>
MAC 4-20 XTC MAC 4-20 XTC, 952802219, 2008-05
>
ENGINE
Back to
MAC 4-20 XTC
MAC 4-20 XTC, 952802219, 2008-05
ENGINE
MAC 4-20 XTC
MAC 4-20 XTC, 952802219, 2008-05

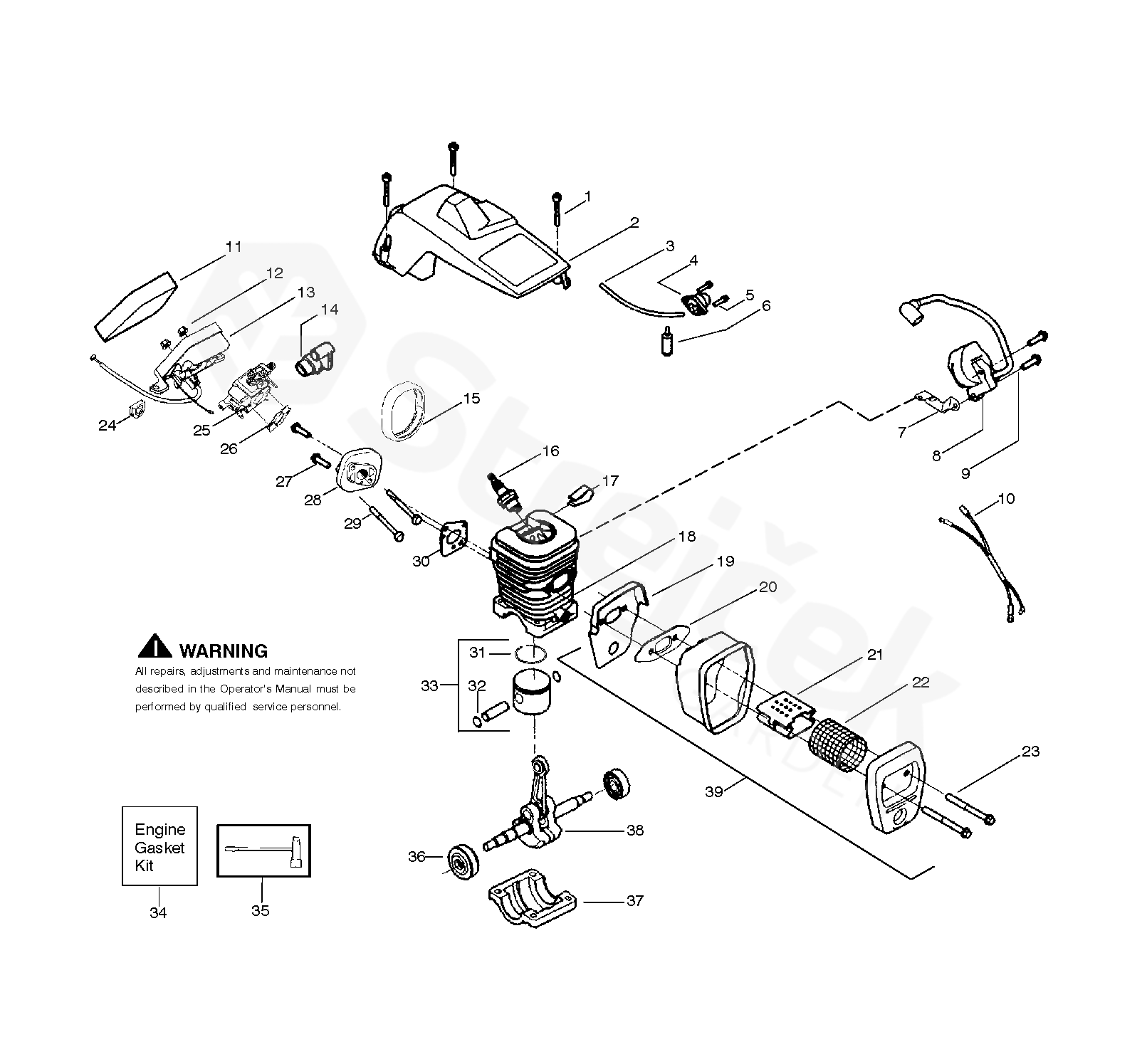

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MAC 4-20 XTC, 952802219, 2008-05
1
SCREW
530016153
2
SHIELD--CYLINDER
530055709
3
HOSE
530069247
4
KIT
530071835
5
SCREW
530015780
6
FILTER
530095646
7
PLATE
530047442
8
IGNITION MODULE
530039167
9
SCREW
530015814
10
ASSEMBLY
530057475
11
AIR FILTER
530037793
12
MATICE
530016101
13
ASSEMBLY
530057702
14
SLEEVE
530049244
15
SEALING
530054144
16
SPARK PLUG
952030150
17
CLAMP
530016136
18
CYLINDER
545122101
19
PLATE
530049870
20
GASKET
530069608
21
FLAME PROTECTION
530037813
22
SCREEN
530036103
23
BOLT
530016132
24
GROMMET
530047631
25
CARBURETTOR
545081885
26
GASKET
530069608
27
SCREW
530016386
28
PARTITION
530049700
29
SCREW
530016187
30
GASKET
530069608
31
PISTON RING
530037380
32
LOCKING RING
530015697
33
PISTON ASSY
545081872
34
GASKET
530069608
35
KLÍČ
530031135
36
BEARING
530056363
37
COVER
530037935
38
CRANKSHAFT ASSY
545113101
39
MUFFLER
530047207
