McCULLOCH
>
LAWN MOWERS: CONSUMER WALK-BEHINDS
>

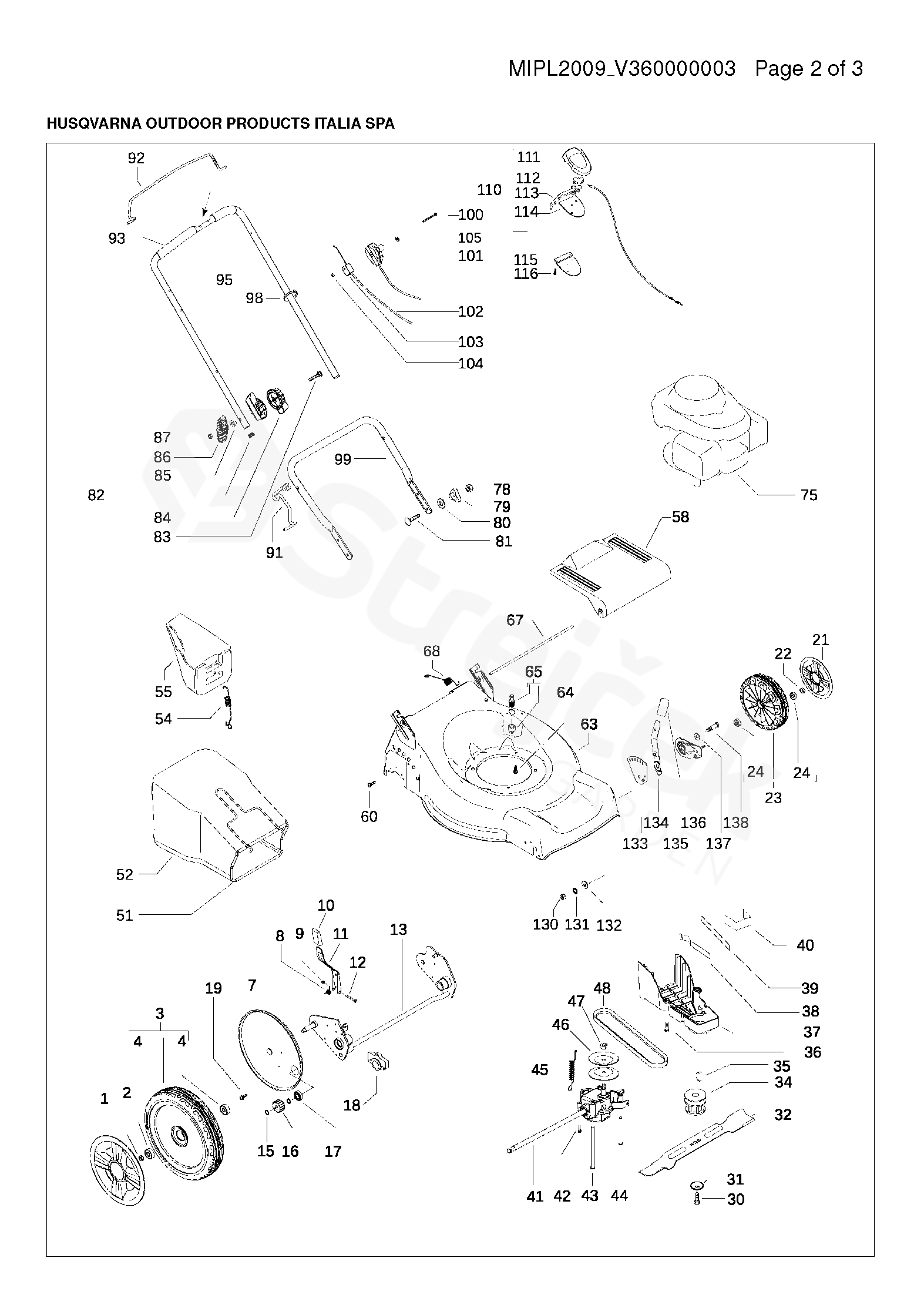

M51-135 CMDWA M51-135 CMDWA, 966047701, 2009-09
>
PRODUCT COMPLETE
Back to
M51-135 CMDWA
M51-135 CMDWA, 966047701, 2009-09
PRODUCT COMPLETE
M51-135 CMDWA
M51-135 CMDWA, 966047701, 2009-09
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M51-135 CMDWA, 966047701, 2009-09
1
HUB CAP
504542101
2
MATICE
504857801
3
WHEEL ASSY
505436001
4
BALL BEARING
504548201
7
HUB CAP
504539901
8
PRUŽINA
531210817
9
NUT
531208492
10
KNOB
531207986
11
LIFTING LEVER ASSY
525348402
12
SCREW
538235807
13
REAR AXLE
510092901
15
PODLOŽKA
531208772
16
PASTOREK
544342301
17
BEARING
531208778
18
SUPPORT
531205944
19
SCREW
531207856
21
HUB CAP
544447604
22
MATICE
504857801
23
WHEEL ASSY
544917301
24
BALL BEARING
504548201
30
SCREW
531208008
31
WASHER
531207237
32
BLADE
504113301
34
BLADE SUPPORT
504591201
35
KEY
504591401
36
SCREW
531207856
37
BELT GUARD
544462301
38
WEAR PROTECTION
504046101
39
WEAR PROTECTION
544462501
40
PROTECTION
504056601
41
GEARBOX
504541403
42
SCREW
510037501
43
BELT GUIDE
504103101
44
BELT GUIDE
544934301
45
SPRING
544934701
46
PULLEY
504547901
47
NUT
504548001
48
BELT
504103301
51
BAG FRAME
531213262
52
GRASS CATCHER
531213264
54
SPRING
531211191
55
PLUG
531213393
58
DEFLECTOR
531213891
60
SCREW
531206677
63
CHASSIS
515991543
64
SCREW
531212851
65
CONNECTOR
531205848
67
SHAFT
531205060
68
SPRING
531205999
78
NUT
531207982
79
WING NUT
531204923
80
WASHER
531204922
81
SCREW
531204921
82
PLUG
531208950
83
SCREW
531205842
84
KNOB
531205839
85
WASHER
531205841
86
KNOB
531205840
87
NUT
531207982
91
PIN RETAINING SCREW
531205169
92
OPERATOR-PRESENCE CONTROL
544463804
93
TUBE
544913401
95
HANDLE ASSY
504879301
98
CABLE HOLDER
531205581
99
MANICO SUPERIORE 646CVS
531205118
100
SCREW
531206212
101
THROTTLE TRIGGER, B&S
531205096
102
BRAKE WIRE
531213522
103
BRACKET
531208043
104
NUT
531205213
105
WASHER
531206666
110
CONTROL
544932907
111
COVER
532413542
112
DISC
532187353
113
LEVER
505531201
114
COVER
532413541
115
BRACKET
532187097
116
SCREW
532181698
130
NUT
531207978
131
PODLOŽKA
531208974
132
WASHER
531207989
133
BRACKET
544452201
134
LEVER
544452501
135
KNOB
531207986
136
SUPPORT WHEEL
504851401
137
WASHER
531206020
138
SCREW
531204912
