Spare parts > McCULLOCH > TRACTORS/RIDE MOWERS > M155-107TC M155-107TC, 96051006401, 2012-12 > CHASSIS & ENCLOSURES
Back to
CHASSIS & ENCLOSURES
M155-107TC M155-107TC, 96051006401, 2012-12

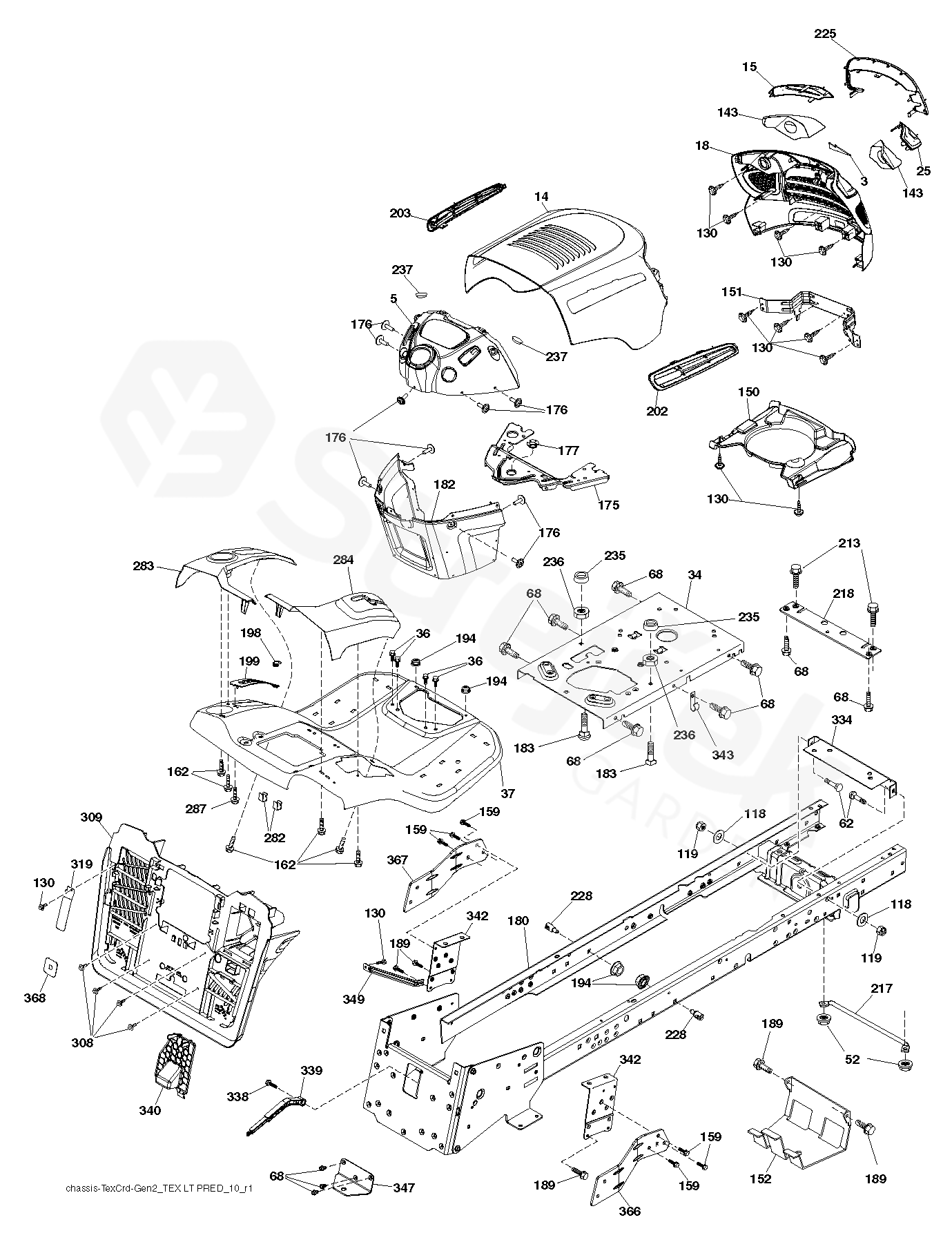

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For M155-107TC, 96051006401, 2012-12
3 FRAME 578894101
5 PANEL 532409597
14 HOOD 581564701
15 LENS 581055801
18 GRILLE 581055701
25 LENS 581055901
34 PLATE 580910901
36 SCREW 817060512
37 FENDER 532439624
52 MATICE 873680500
62 BOLT 872110608
68 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
118 PODLOŽKA 819131316
119 MATICE 873680600
130 SCREW 532416358
143 INSERT 581056002
150 AIR CONDUCTOR 532400267
151 BRACKET 532187568
152 SHIELD 532199535
159 SCREW 817000612
162 SCREW 532142432
175 PLATE 532199472
176 SCREW 532400776
177 BUSHING 532195228
180 CHASSIS 583902701
182 DASH 532407176
183 BOLT 874520520
189 SCREW 817000512
194 MATICE 873900500
198 INDICATOR 532448048
199 PLATE 532418739
202 VENT 581564901
203 VENT 581564801
213 BOLT 874760512
217 ROD 532409167
218 PLATE 532196395
225 TRIM 581056201
228 ŠROUB 532195161
235 1/4-20X3/4 CARR BLT 532406129
236 MATICE 873930500
237 PLUG 532403704
282 CLIP 532414110
283 CONSOLE 532447671
284 CONSOLE 532447211
287 SCREW 817600406
308 BOLT 532171877
309 BACKPLATE 581328907
319 LEVER 581313906
334 BRACKET 532442537
338 BOLT 532436640
339 LEVER 532436641
340 BATERIE 581329001
342 BRACKET 532435938
343 CLIP 532440749
347 HITCH 532442887
349 OPĚRNÁ MISKA 532436606
366 BRACKET 581314602
367 BRACKET 581314502
368 OPLÁŠTĚNÍ 581424801
