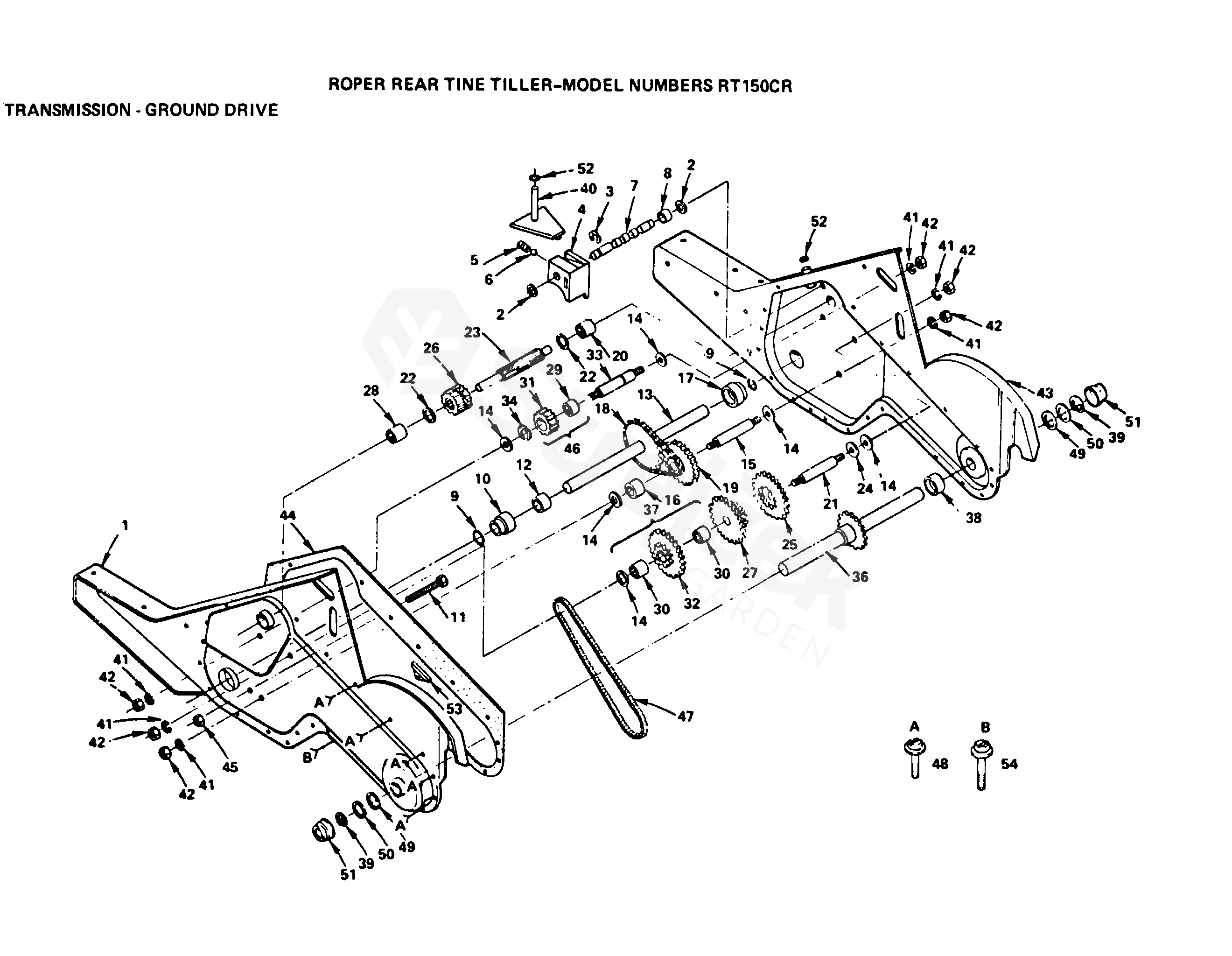

Spare parts > Poulan > CULTIVATORS/TILLERS > RT150CR RT150CR, 1999-01 > TRANSMISSION
Back to
TRANSMISSION
RT150CR RT150CR, 1999-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RT150CR, 1999-01
2 WASHER 532004360
3 RETAINING RING 812000039
4 FORK 532008353
5 SPRING 532100371
6 CHOKE FRICTION BALL 532007392
7 SHAFT 532102109
8 SPACER 532104159
9 O-RING 532102128
10 BEARING 532102100
11 SCREW 532102101
14 WASHER 532004358
15 SHAFT 532102112
17 BEARING 532102106
18 CHAIN 532102134
19 SPROCKET 532102121
20 BEARING 532004895
21 SHAFT 532008358
22 WASHER 532001370
23 SHAFT 532102110
24 WASHER 532004220
25 GEAR 532105346
26 PINION 532102113
27 GEAR 532105345
28 BEARING 532005020
29 BEARING 532006803
30 DOUILLE REMPL PAR 532004422 532004422
31 GEAR 532102115
32 SPROCKET 532106142
33 SHAFT 532102111
34 RETAINING RING 812000040
36 SHAFT 532106144
37 SPROCKET ASSEMBLY 532106141
38 SPACER 532106146
39 RING 532102144
40 LEVER 532102107
41 WASHER 810040700
42 NUT 873610700
44 SEALING 532106211
45 NUT 873220500
46 GEAR ASSY 532102114
47 CHAIN 532106147
48 SCREW 817580408
51 CUP 532009672
52 O-RING 532106160
GREASE 532006066
