Spare parts > Poulan > CULTIVATORS/TILLERS > HDF550L HDF550L, 2002-01 > TRANSMISSION
Back to

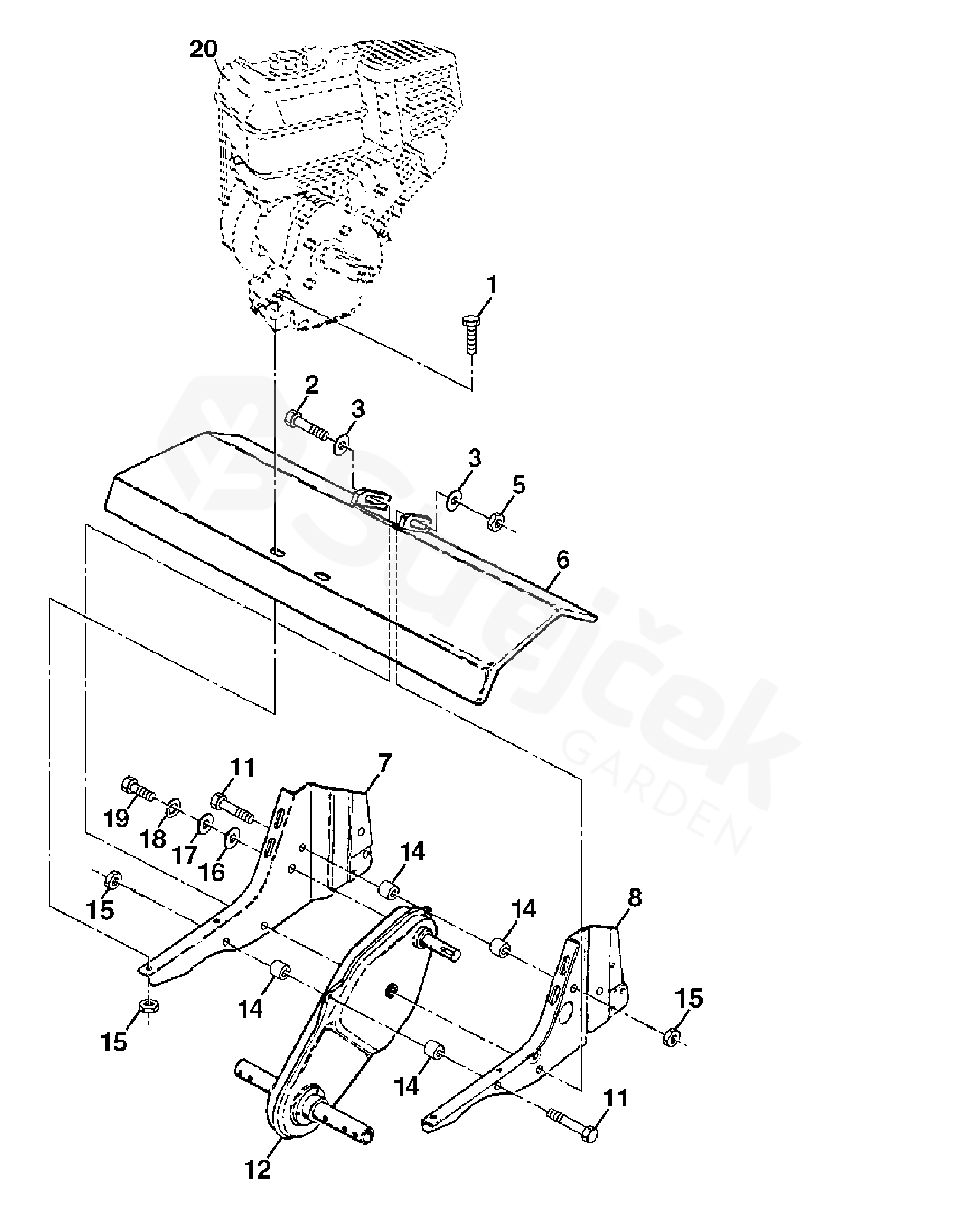

TRANSMISSION
HDF550L HDF550L, 2002-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HDF550L, 2002-01
1 BOLT 874760524
2 BOLT 874780652
3 WASHER 819131311
5 NUT 873800600
6 SHIELD TINE 9057R428
9057R428 		9057R428
7 BRACKET.ENGINE.RH 532165835
8 BRACKET
1948J 		532001948
11 BOLT 874760544
12 TRANSMISSION ASM.W/EXT.
176112 		532176112
14 SPACER
9173R 		532009173
15 MATICE 873970500
16 WASHER 819091412
17 WASHER 819092016
18 WASHER 810040400
19 BOLT 874610412
20 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
B&S MODEL 126402 ORDER PARTS FROM ENGINE MANUFACTURER 		000000000
