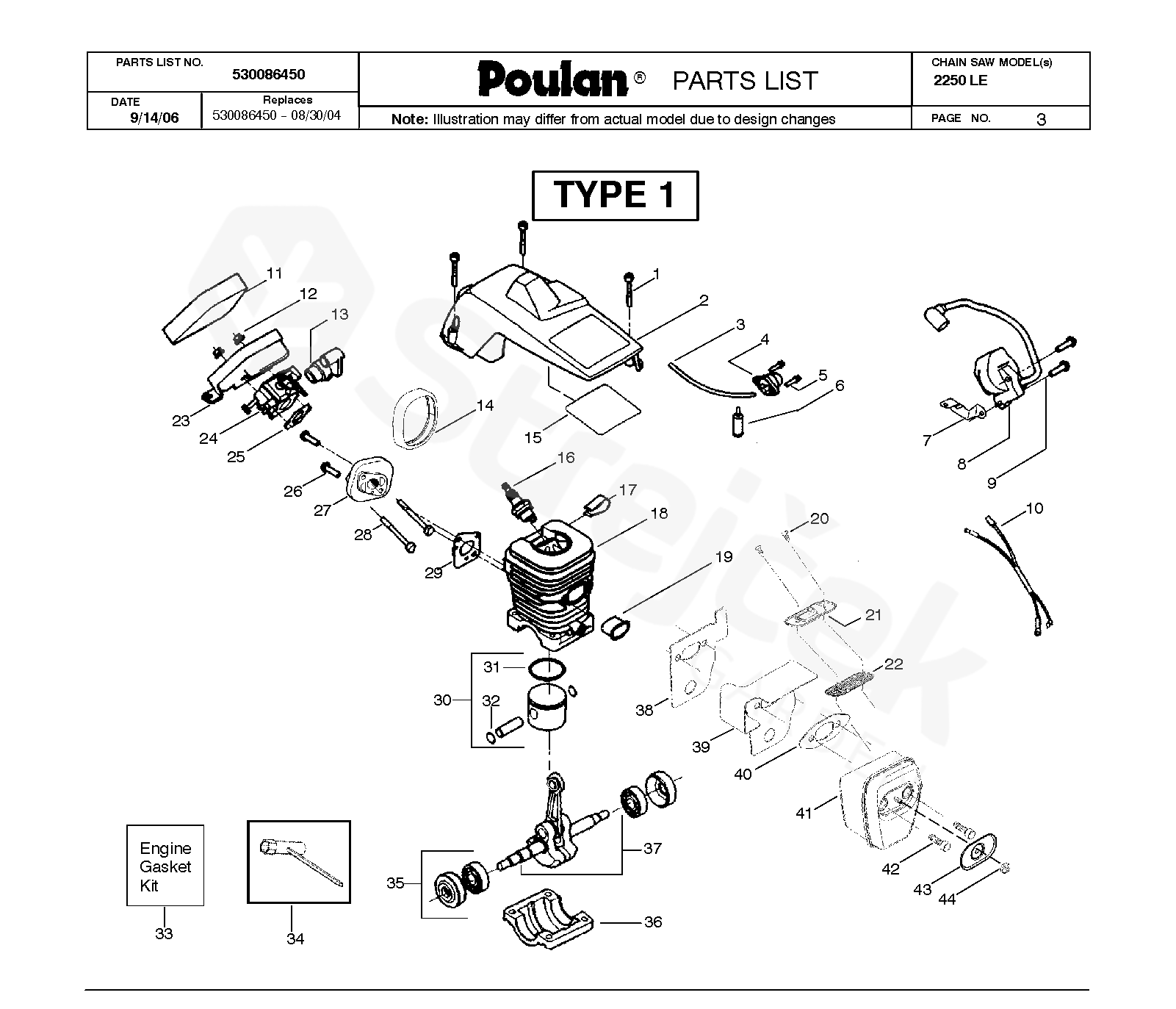

Spare parts > Poulan > CHAIN SAWS > 2250LE 2250LE, 2006-09 > ENGINE
Back to
ENGINE
2250LE 2250LE, 2006-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 2250LE, 2006-09
1 SCREW 530016153
2 ASSEMBLY 530055638
3 HOSE
SMALL 		530069247
4 PRIMER 530047213
5 SCREW 530015780
6 FILTER 530095646
7 PLATE 530047442
8 IGNITION MODULE 530039167
9 SCREW 530015814
10 CABLE ASSY 530049117
11 AIR FILTER 530037793
12 MATICE 530016101
13 SLEEVE 530035526
14 SEALING 530054144
15 REFLECTOR-HEAT 530055698
16 SPARK PLUG
RCJ-7Y 		952030150
17 CLAMP 530016136
18 CYLINDER 530071412
19 DEFLECTOR 530037652
20 SCREW 530016351
21 COVER 530055759
22 KIT 530071413
23 HOUSING 530047604
24 KIT W-9A
WALBRO WT-9A No Repair kits are available for these carburetors 		530071619
25 GASKET 530069608
26 SCREW 530016386
27 PARTITION 530049700
28 SCREW 530016187
29 GASKET 530069608
30 PISTON 530071408
31 PISTON RING 530038729
32 LOCKING RING 530015697
33 GASKET 530069608
34 WRENCH 530031163
35 BEARING 530056363
36 COVER 530037935
37 CRANKSHAFT 530047062
38 BACKPLATE 530054885
39 GUIDE OUTLET 530054880
40 GASKET 530069608
41 MUFFLER ASSY 530054886
42 BOLT 530016338
43 COVER 530055586
44 NUT 530016359
LABEL
NOT SHOWN 		530057757
