Spare parts
>
Poulan
>
CHAIN SAWS
>

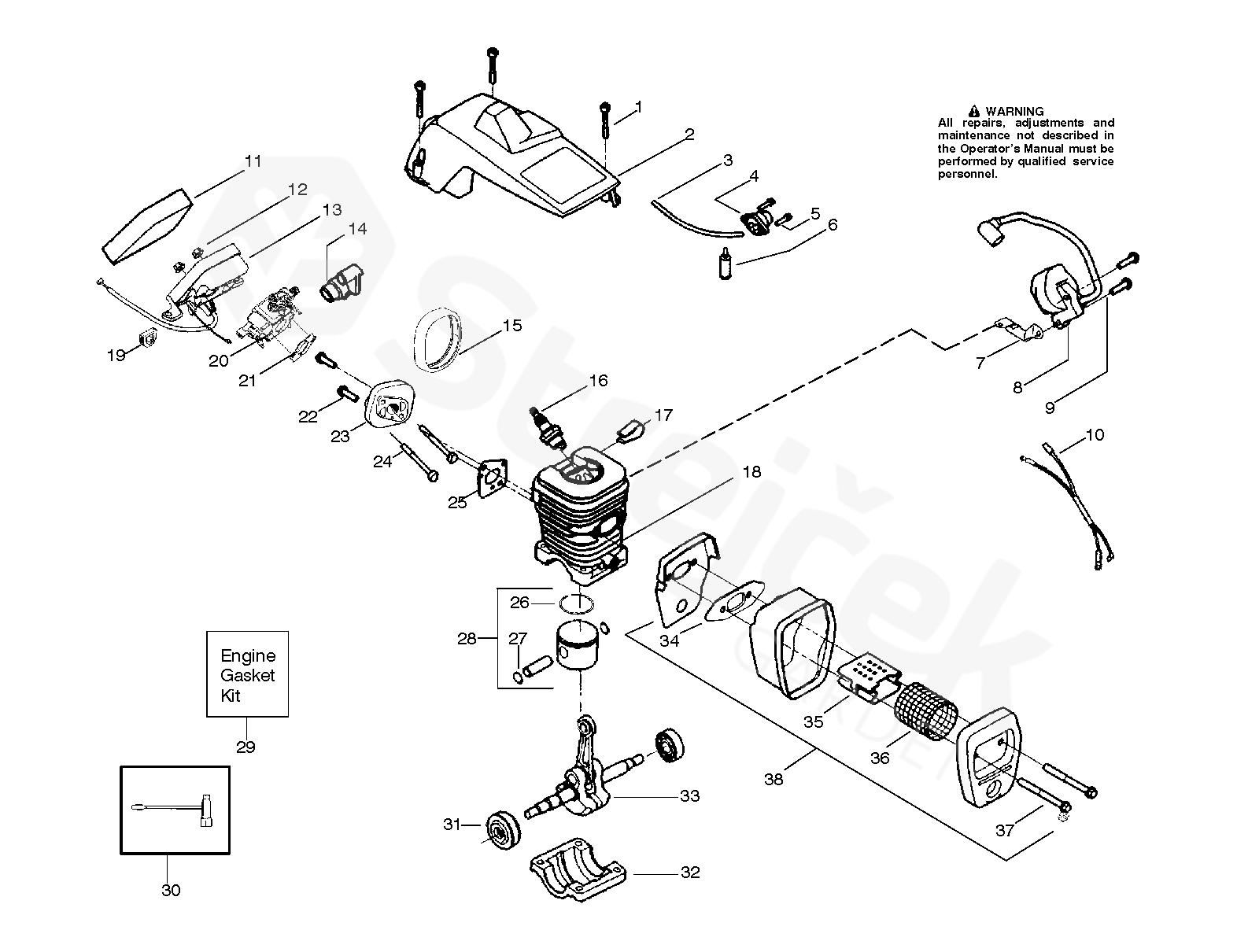

2375AV WT 2375AV WT, 952802009, 2008-05
>
ENGINE
Back to
2375AV WT
2375AV WT, 952802009, 2008-05
ENGINE
2375AV WT
2375AV WT, 952802009, 2008-05
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
2375AV WT, 952802009, 2008-05
1
SCREW
530016153
2
CYL SHIELD PLN GRN AV W/O HLS
530059875
3
HOSE
530069247
4
KIT
(Incl. #5)
530071835
5
SCREW
530015780
6
FILTER
530095646
7
PLATE
530047442
8
IGNITION MODULE
530039198
9
SCREW
530015814
10
ASSEMBLY
530057475
11
AIR FILTER
530037793
12
MATICE
530016101
13
ASSEMBLY
530057702
14
SLEEVE
530035526
15
SEALING
530054144
16
SPARK PLUG
(RCJ---7Y)
952030150
17
CLAMP
530016136
18
CYLINDER
530012550
19
GROMMET
530047631
20
CARBURETTOR
(WT---891Incl. Grommet)
545081885
21
GASKET
530069608
22
SCREW
530016386
23
PARTITION
530049700
24
SCREW
530016187
25
GASKET
530069608
26
PISTON RING
530038729
27
LOCKING RING
530015697
28
PISTON
(Incl. 26 & 27)
530071408
29
GASKET
(Incl. 21, 25 & 34)
530069608
30
KLÍČ
530031135
31
BEARING
530056363
32
COVER
530037935
33
CRANKSHAFT
530047062
34
SCREEN
530036103
35
FLAME PROTECTION
530037813
36
GASKET
530069608
37
BOLT
530016132
38
MUFFLER
(Incl. 34---37)
530047207
LABEL Not Shown
Not Shown
545003016
