Poulan
>
TRACTORS/RIDE MOWERS
>
Y18H44A Y18H44A, 1992-01
>

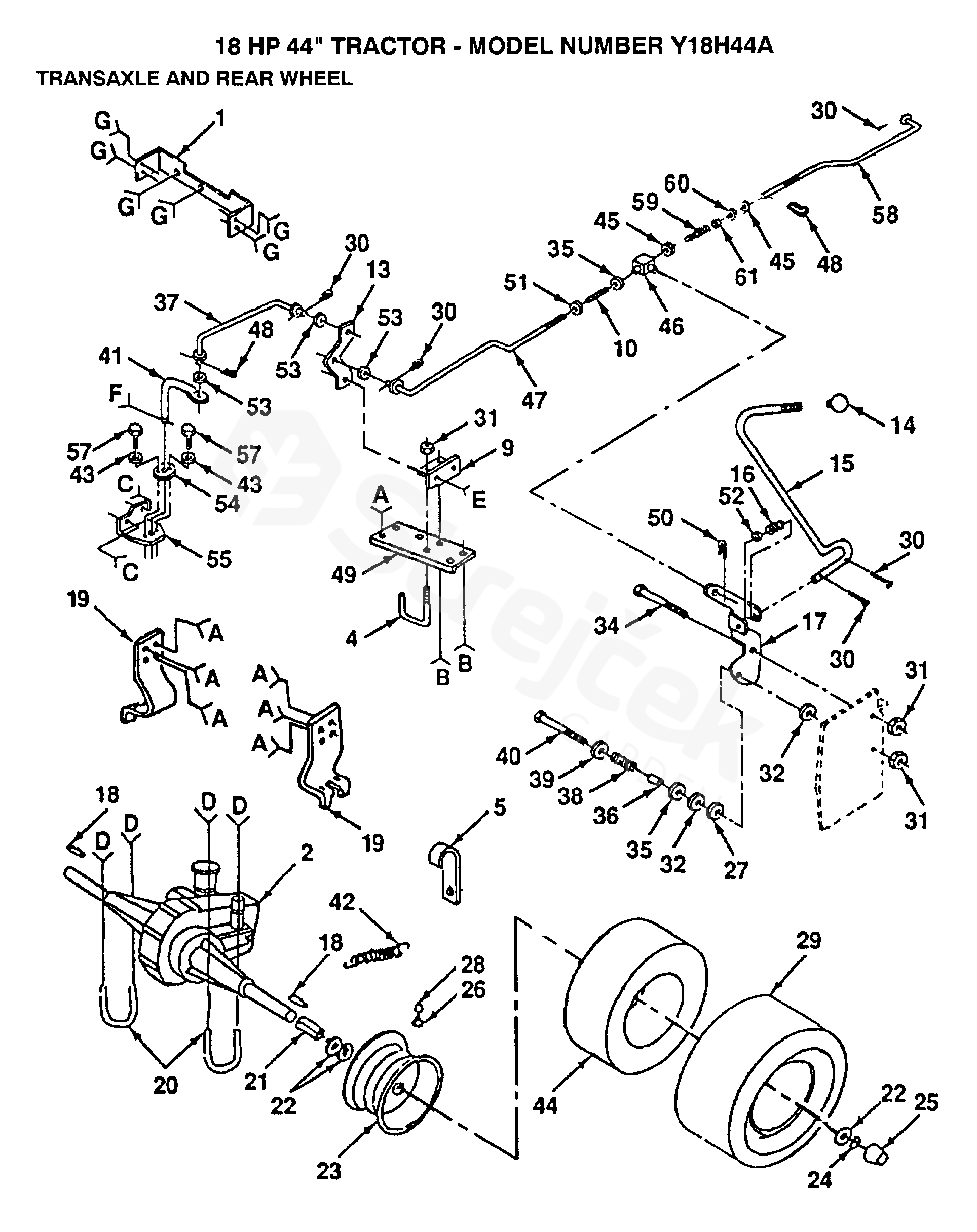

REAR WHEEL
Back to
Y18H44A
Y18H44A, 1992-01
REAR WHEEL
Y18H44A
Y18H44A, 1992-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Y18H44A, 1992-01
1
PLATE
532121187
2
GEARBOX ASSY
532121431
4
BELT GUIDE
532121190
5
CLIP
532002751
9
LEVER
532121206
10
SPRING
532102670
13
LEVER
532121204
14
KNOB
532121274
15
ROD
532110845
16
SPRING
532121631
17
BRACKET
532108196
18
KEY
532123583
19
BRACKET
532121191
20
U-BOLT 3/8X2-3/4
532121189
21
SPACER
532121199
22
PODLOŽKA
532121748
23
RIM SPROCKET
532106108
24
RETAINER RING
812000001
25
HUB CAP
532104757
26
NIPPLE
532065139
27
WASHER
532108972
28
CAP VALVE
532059192
29
TIRE
532122082
30
SPLIT PIN
876020412
31
MATICE
873680600
32
WASHER
532108200
34
BOLT
532108518
35
WASHER
819212016
36
SPACER
532108201
37
LINK
532121202
38
SPRING
532108844
39
WASHER
532061537
40
BOLT
874760648
41
LEVER
532121209
42
SPRING
532110422
43
WASHER
819070816
44
TUBE
532007152
45
NUT
532062336
46
TRUNNION
532108212
47
ROD
532121750
48
CLIP
532004497
49
BRACKET
532123186
50
SPRING
532004921
51
WASHER
819131212
52
WASHER
819151516
53
SPRINGWASHER
532110739
54
GUIDE
532121217
55
BRACKET
532121216
57
SCREW
817490512
58
LEVER
532132654
59
SPRING
532106888
60
PODLOŽKA
819131316
61
NUT
873350600
