Spare parts > Poulan > TRACTORS/RIDE MOWERS > 418144 418144, 2006-12 > MOWER LIFT LEVER
Back to

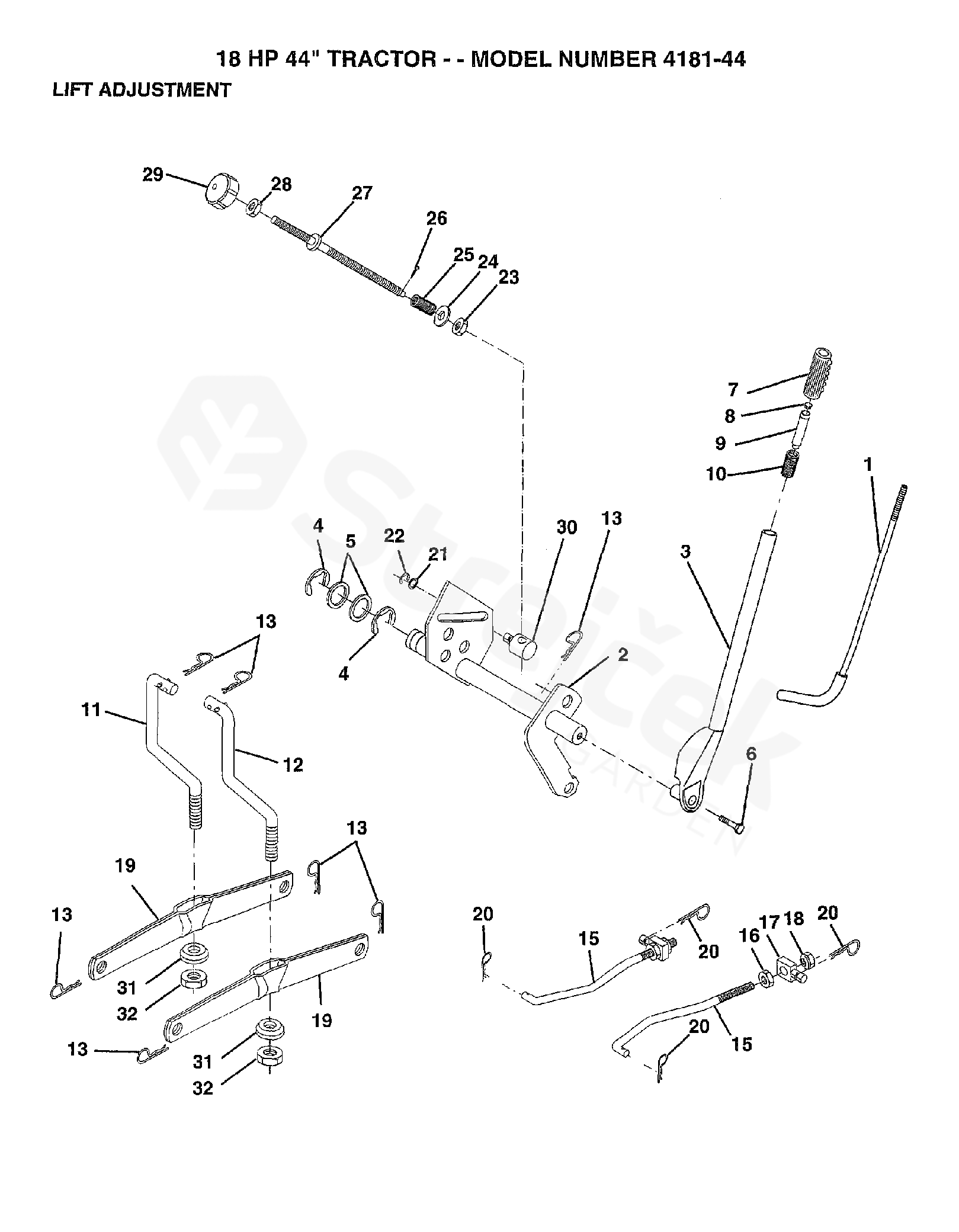

MOWER LIFT LEVER
418144 418144, 2006-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 418144, 2006-12
1 ROD 532121006
2 ENS ARBRE DE CDE DE RELEVAGE 532140673
3 LEVER ASSY 532121002
4 RETAINING RING 812000022
5 WASHER 819292016
6 BOLT 874780624
7 GRIP 532109413
8 KNOB 532124526
9 PLUNGER, 532122364
10 SPRING 532002876
11 LINK 532139865
12 LINK 532139866
13 SPRING 532004939
15 LINK 532127218
16 MATICE 873350800
17 BRACKET 532130171
18 NUT 873800800
19 LEVER 532139868
20 CLIP 532003146
21 WASHER 819151216
22 RETAINING RING 812000037
23 NUT 532110807
24 WASHER 532067510
25 SPRING 532002876
26 SPLIT PIN 876020308
27 ROD 532110729
28 NUT 873350600
29 KNOB 532138057
30 TRUNNION 532110810
31 BEARING 532140302
32 NUT 873540600
