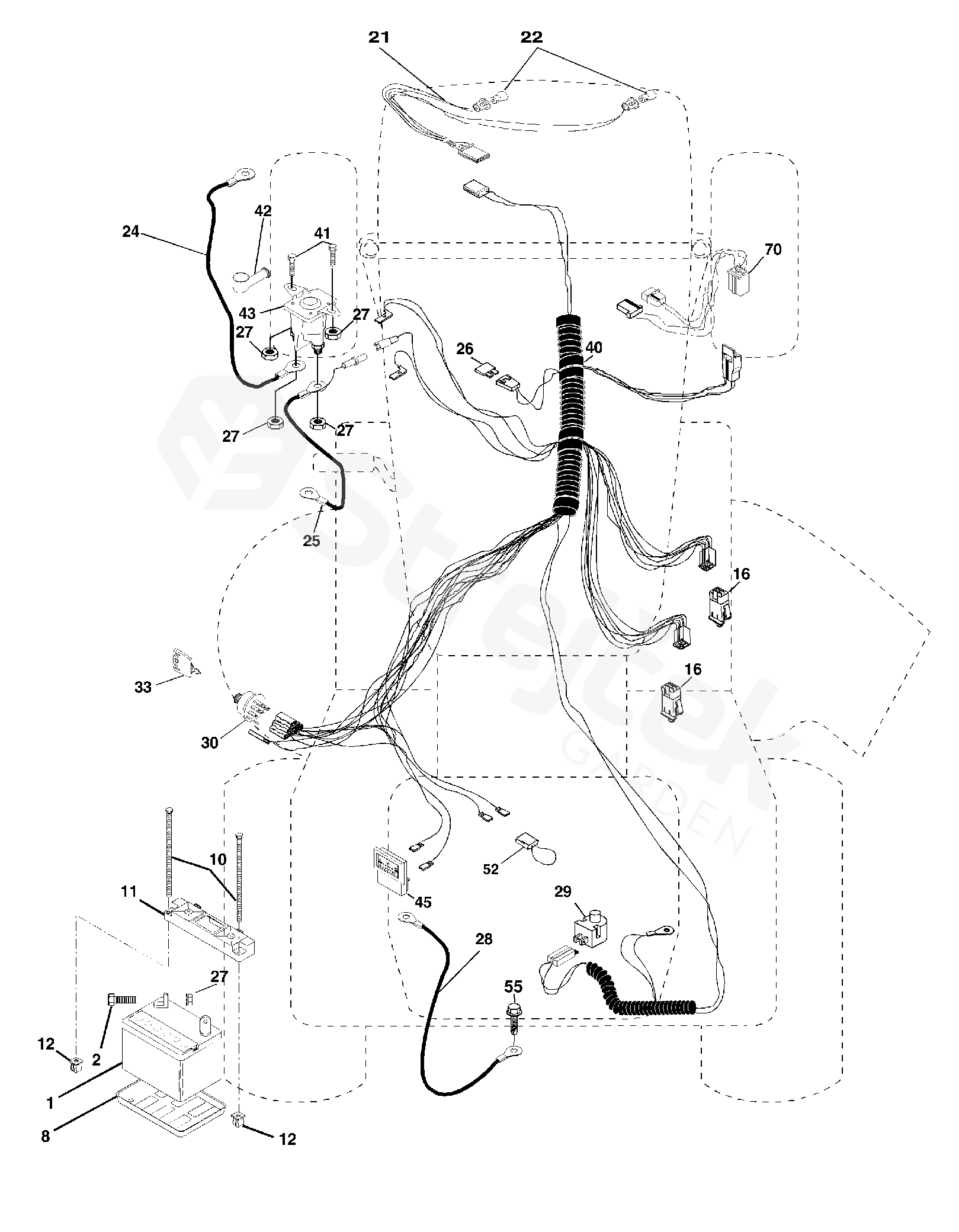

Spare parts > Poulan > TRACTORS/RIDE MOWERS > QGT2046A QGT2046A, 2000-01 > ELECTRICAL
Back to
ELECTRICAL
QGT2046A QGT2046A, 2000-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For QGT2046A, 2000-01
1 BATTERY 532163465
2 BOLT 874760412
8 TRAY 532007603
10 BOLT 532145211
11 HOLDER 532150109
12 NUT 532145769
16 SWITCH 532153664
21 CABLE ASSY 532166181
22 BULB 532004152
24 CABLE 532004799
25 CABLE 532146148
26 FUSE 532166180
27 MATICE 532053838
28 CABLE 532145491
29 SWITCH 532121305
30 IGNITION SWITCH 532163968
33 KEY 532140401
40 CABLE ASSY 532170217
41 BOLT 871110408
42 COVER 532000719
43 SOLENOID 532145673
45 AMPEREMETER 532121433
52 PROTECTOR 532141940
55 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
70 CABLE ASSY
170243 		532170243
