Poulan
>
TRACTORS/RIDE MOWERS
>
QGT2046A QGT2046A, 2000-01
>
CHASSIS & ENCLOSURES
Back to
QGT2046A
QGT2046A, 2000-01

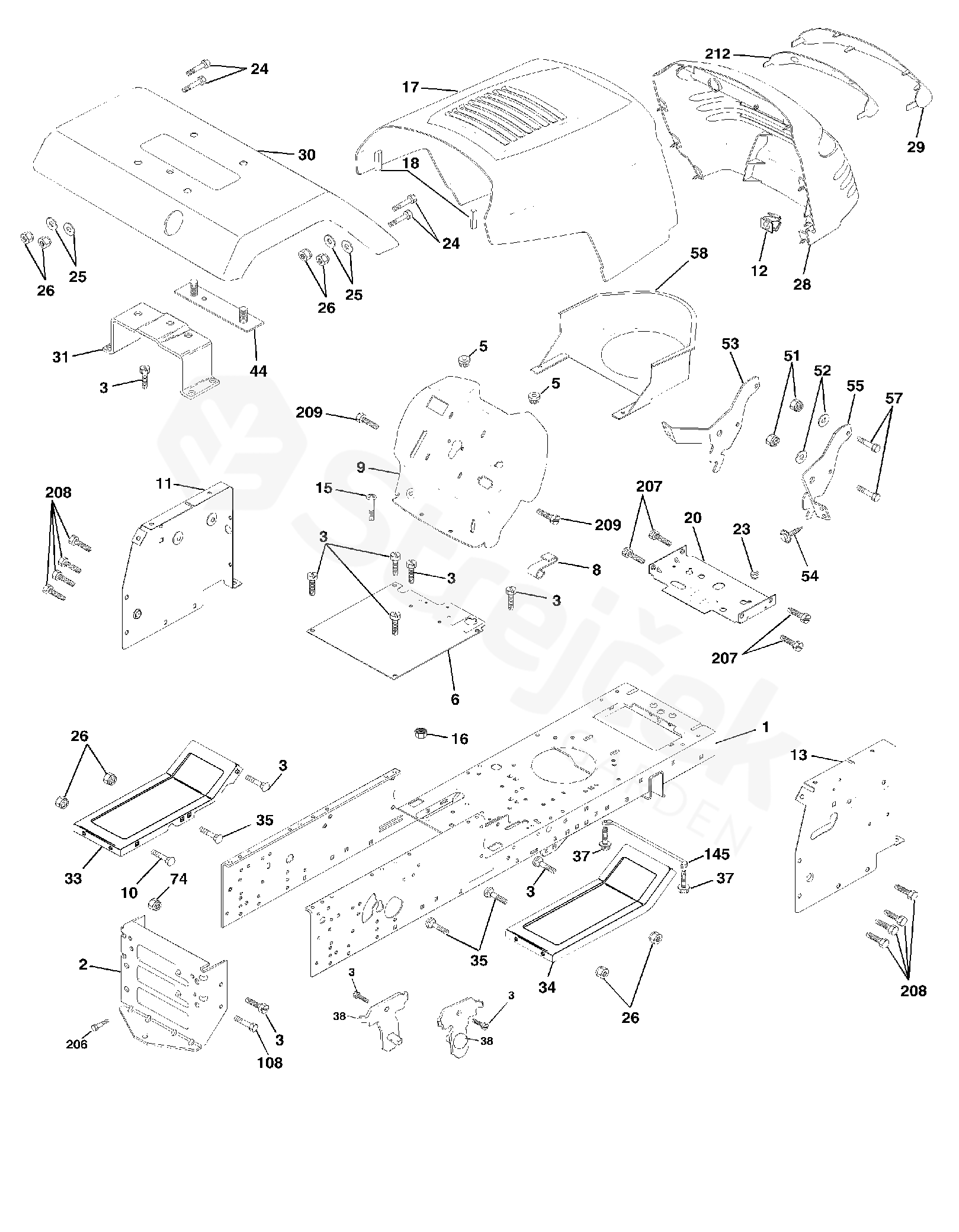

CHASSIS & ENCLOSURES
QGT2046A
QGT2046A, 2000-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
QGT2046A, 2000-01
1
CHASSIS
532169831
2
PLATE
532169061
3
SCREW
817060612
4
WASHER
819131216
5
DAMPER
532155272
6
PLATE
532155923
8
CLIP
532155138
9
TABLE*RPL.PAR 532168348013
532168348
10
BOLT
872140608
12
CLIP
532145660
15
SCREW
874180512
16
NUT
873310500
17
HOOD LT, METAL
532159639
18
DAMPER
532126938
20
PLATE
532156437
23
BUSHING
532124028
24
BOLT
874780616
25
PODLOŽKA
819131312
26
NUT
532062336
28
GRILL
532157373
29
LENS
532140273
31
BRACKET
532137113
33
SUPPORT
532145244
34
SUPPORT
532145243
35
BOLT
872110606
37
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
38
BRACKET
532169834
44
BRACKET
532105511
51
MATICE
873800400
52
PODLOŽKA
819091416
53
BRACKET
532144697
54
SCREW
532161464
55
BRACKET
532144696
57
BOLT
874780412
58
AIR CONDUCTOR
532162266
74
MATICE
873680600
108
BOLT
874760612
145
SHAFT
532156524
206
BOLT
532170165
207
SCREW
817670508
208
SCREW
817670608
209
SCREW
817000612
PLUG
532005479
