Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR250 DXR250, Valid for machine 12 and forward, 2013-08 > ARM ONE
Back to

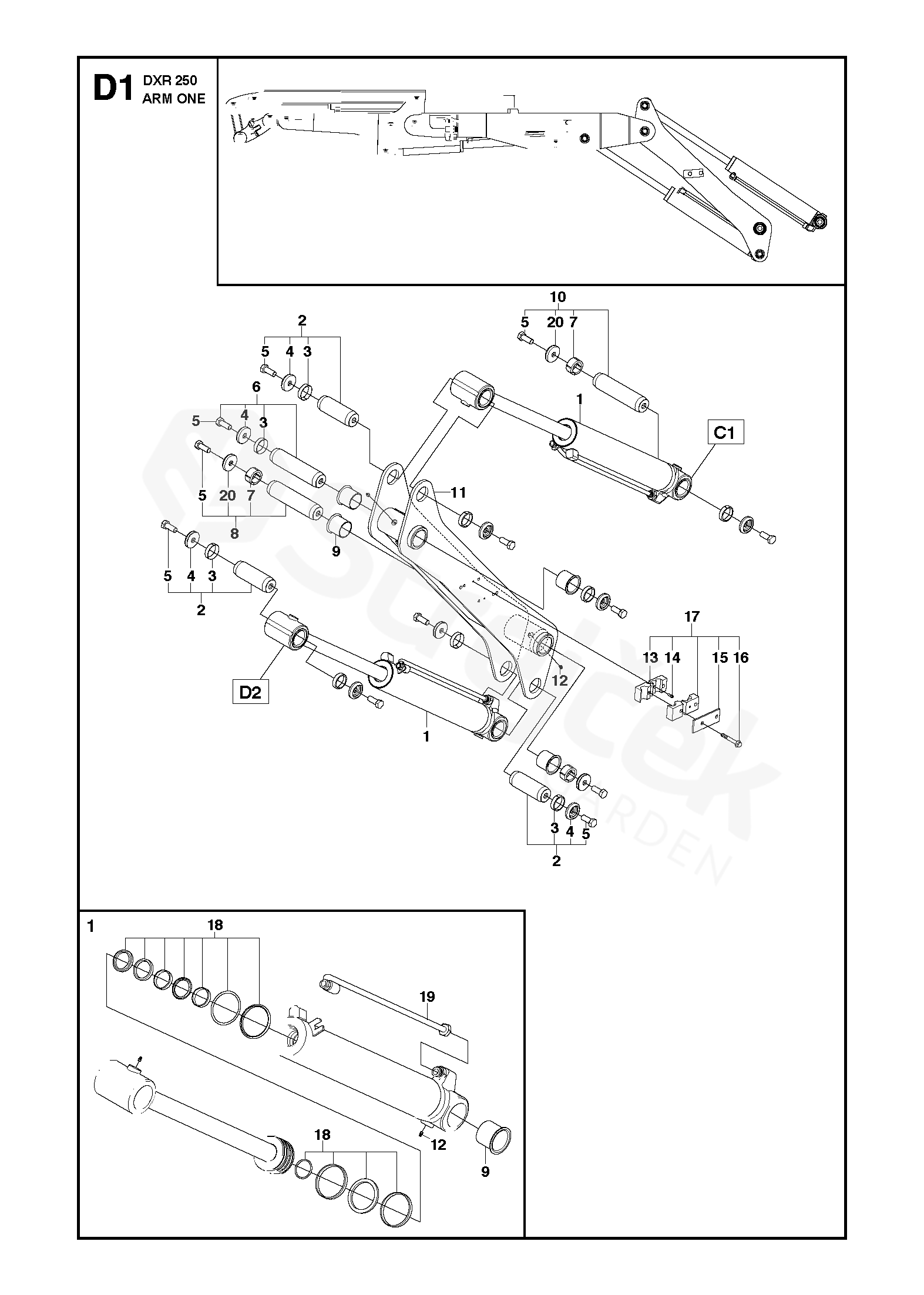

ARM ONE
DXR250 DXR250, Valid for machine 12 and forward, 2013-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR250, Valid for machine 12 and forward, 2013-08
1 CYLINDER 521906601
2 SHAFT ASSY 505248201
3 SLEEVE 522841401
4 WASHER 522841901
5 SCREW EHHM 522842301
6 SHAFT ASSY 504906201
7 SLEEVE 522841701
8 SHAFT ASSY 505316801
9 BEARING BUSH 504894901
10 SHAFT ASSY 505316901
11 ARM 504889801
12 LUBRICATION NIPPLE 504895301
13 BLOK 576200901
14 HOSE CLAMP 725532901
15 DESKA 576201001
16 SCREW EHHFM 576201101
17 HADICOVÁ SVĚRKA 576200801
18 SEAL 522857301
19 HYDRAULIC PIPE 522914901
20 WASHER 582300401
