Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR250 DXR250, valid for machine 1-10, 2010-06 > ARM THREE
Back to

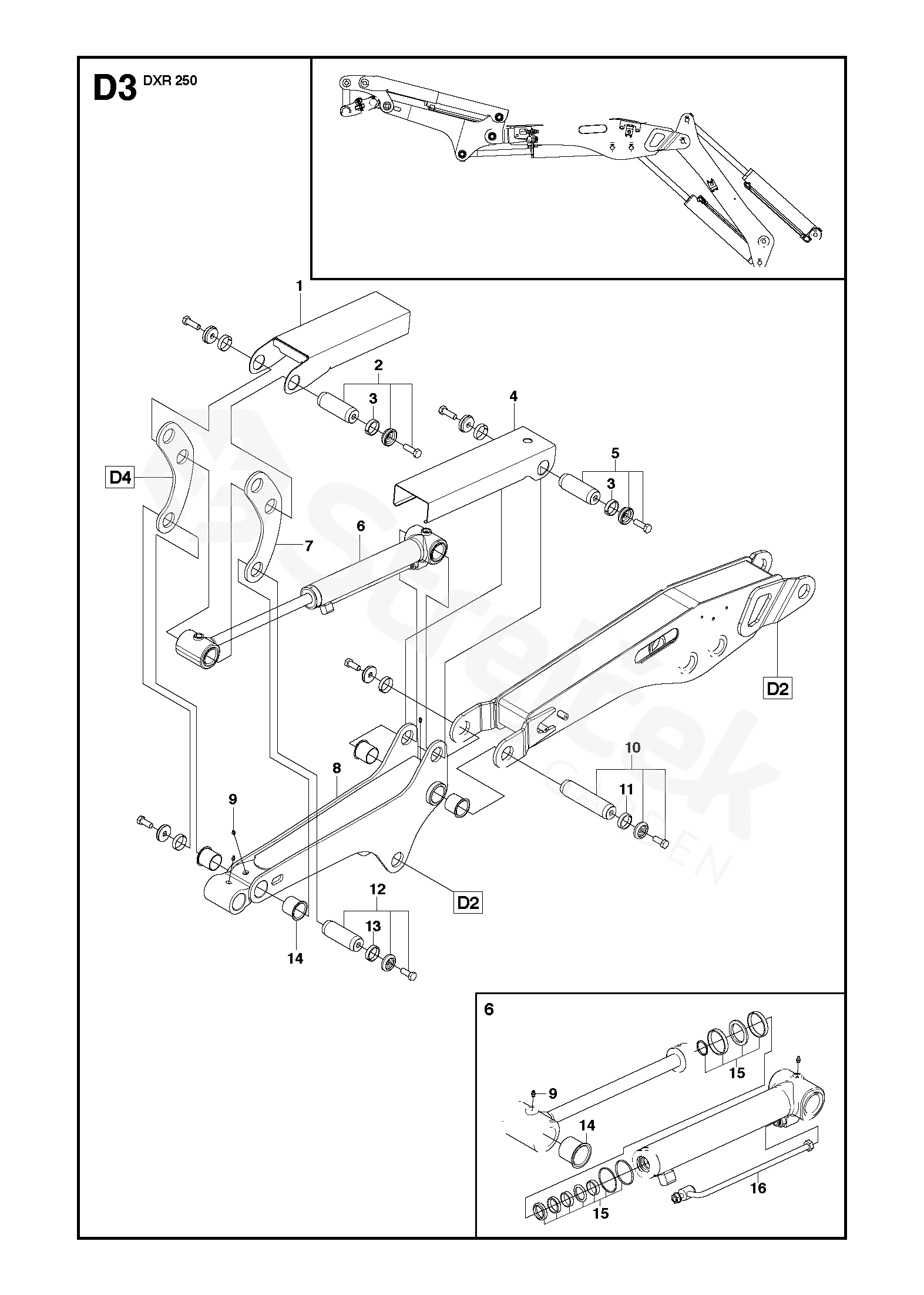

ARM THREE
DXR250 DXR250, valid for machine 1-10, 2010-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR250, valid for machine 1-10, 2010-06
1 PROTECTION 505333701
2 SHAFT ASSY 510166401
3 SLEEVE 522841401
4 PROTECTION 505334001
5 SHAFT ASSY 522859201
6 CYLINDER 522722901
7 PLATE 505332001
8 ARM 504897801
9 LUBRICATION NIPPLE 504895301
10 SHAFT ASSY 504906201
11 SLEEVE 522841401
12 SHAFT ASSY 504905801
13 SLEEVE 522841401
14 BEARING BUSH 504894901
15 SEAL 522857301
16 HYDRAULIC PIPE 522915101
